Optoma HD86 - Removing Index and IRIS Boards

Delta Elec. Inc. HD86
Company Confidential Optoma___________________ Delta________________
47
2009/08/18

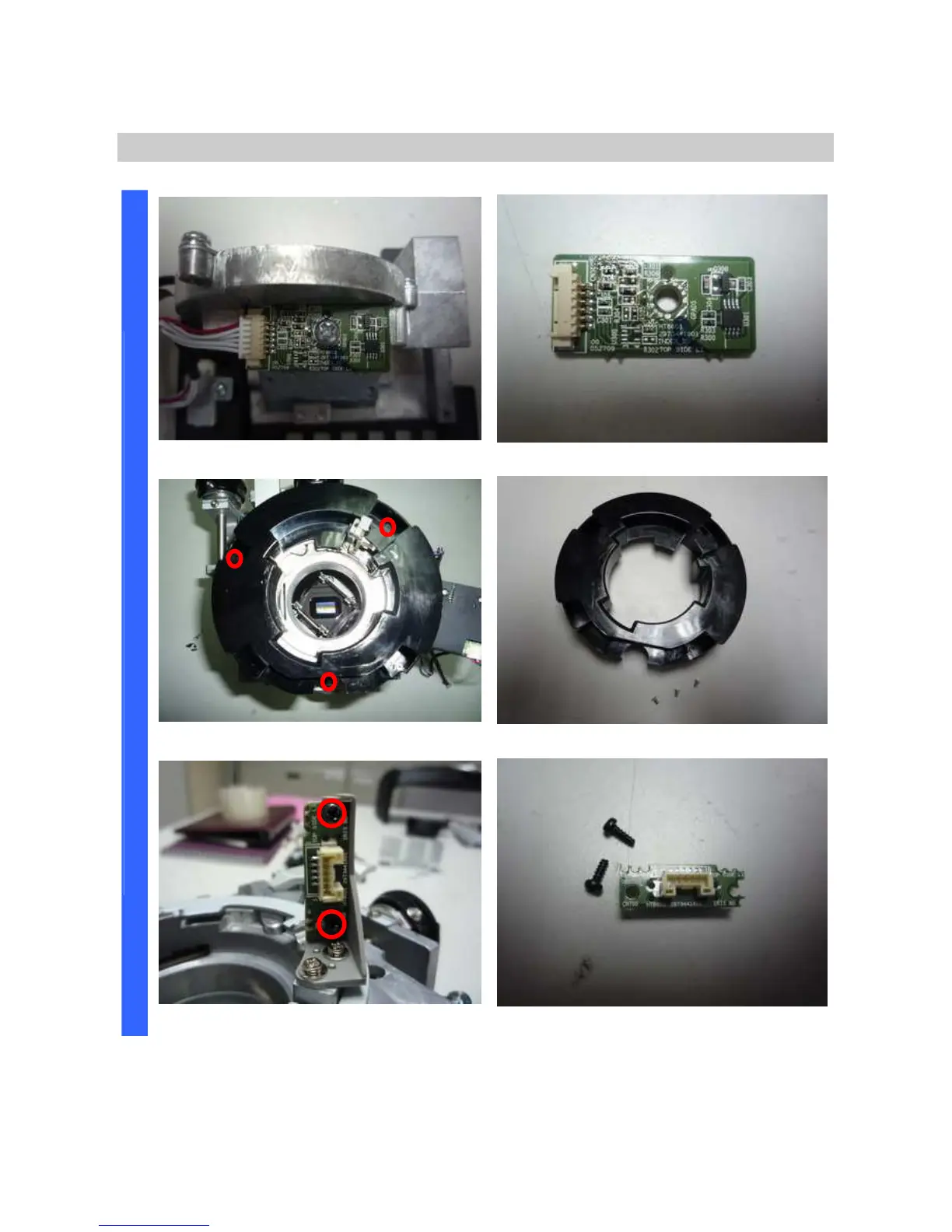

Remove the Index Board and IRIS Board
Remove the screw (M3x8). Look the Index Board.
Remove these 3 screws (M2x4). Look the Optical Ring.
D
I
S
A
S
S
E
M
B
L
Y
Remove these 2 screws (T2x5). Look the IRIS Board.
