Remove the DMD Chip

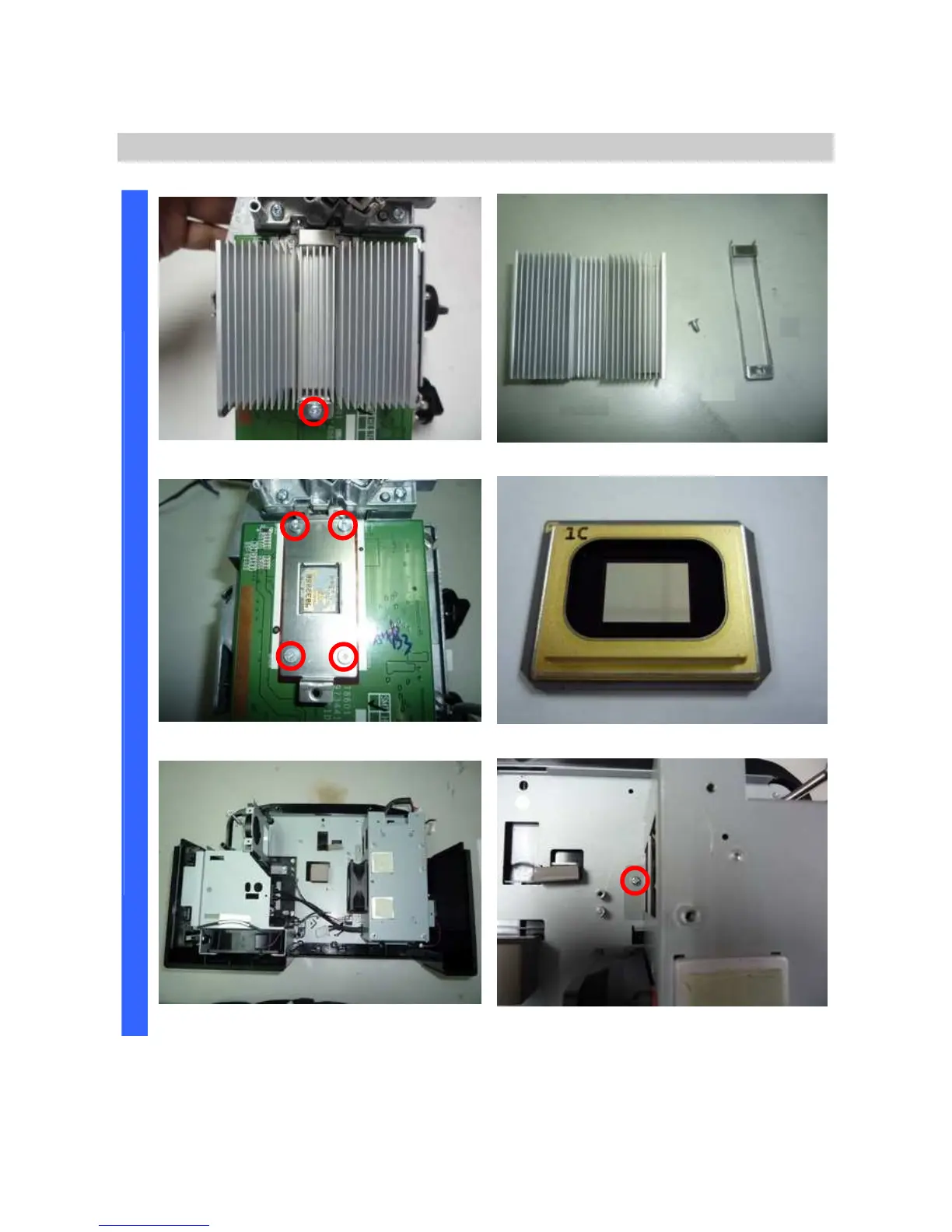

Remove the screw (M3x6). Review the DMD Heat Sink.
Remove these 4 screws (M3x6). Look the DMD Chip.
D
I
S
A
S
S
E
M
B
L
Y
Look the bottom case w/o optical engine.
Remove the screw (M3x8).
