Optoma HD86 - Removing Lamp Chassis and Fan 3

Delta Elec. Inc. HD86
Company Confidential Optoma___________________ Delta________________
52
2009/08/18
Remove Lamp Module Chassis and Fan 3

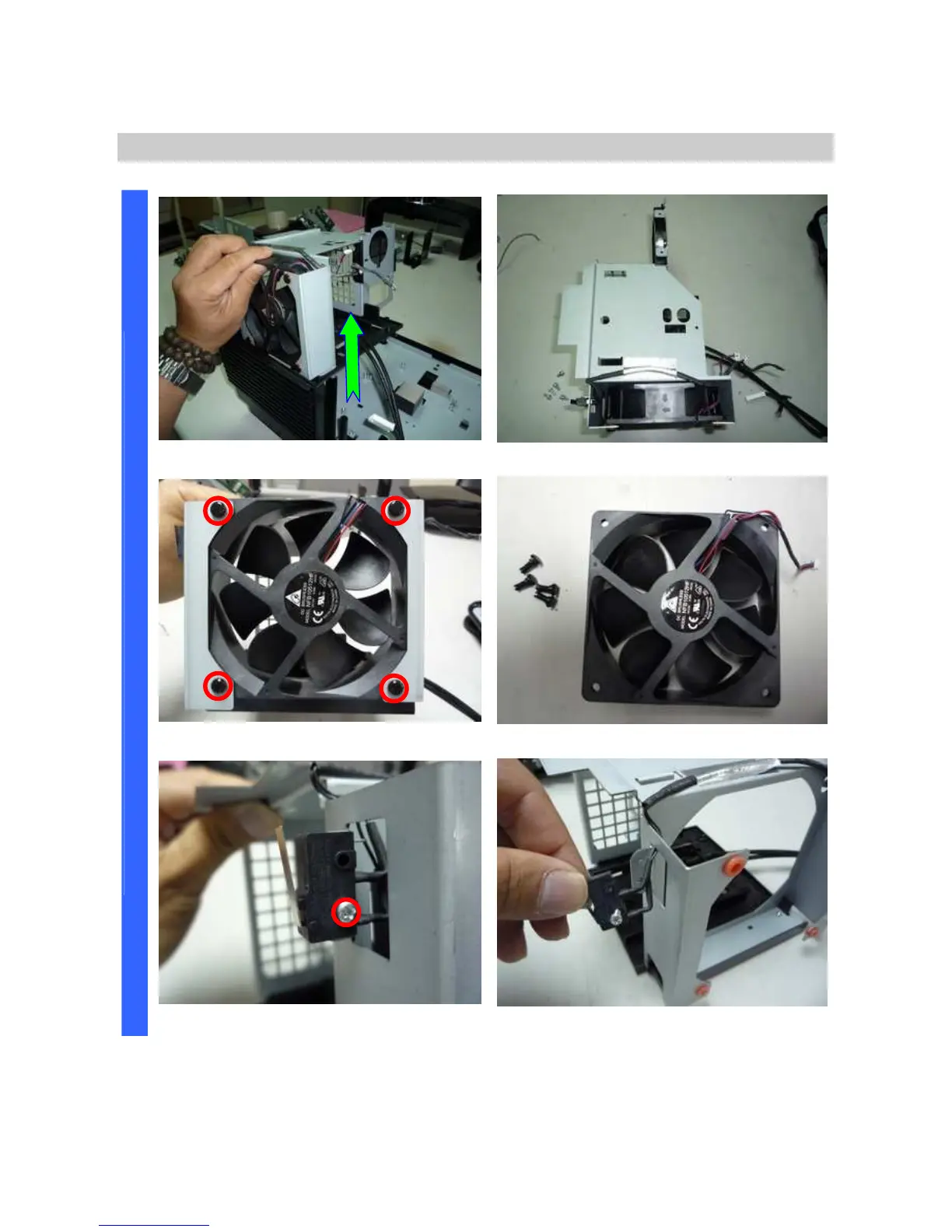

Remove the Lamp Module Chassis Look the Lamp Module Chassis and Fan3.
Take out off 4 black nuts. Look the Fan 3
D
I
S
A
S
S
E
M
B
L
Y
Remove the screw (M3x8). Remove the Interlock switch.
