Optoma HD86 - Removing ADJ Foot and Bottom Chassis

Delta Elec. Inc. HD86
Company Confidential Optoma___________________ Delta________________
53
2009/08/18

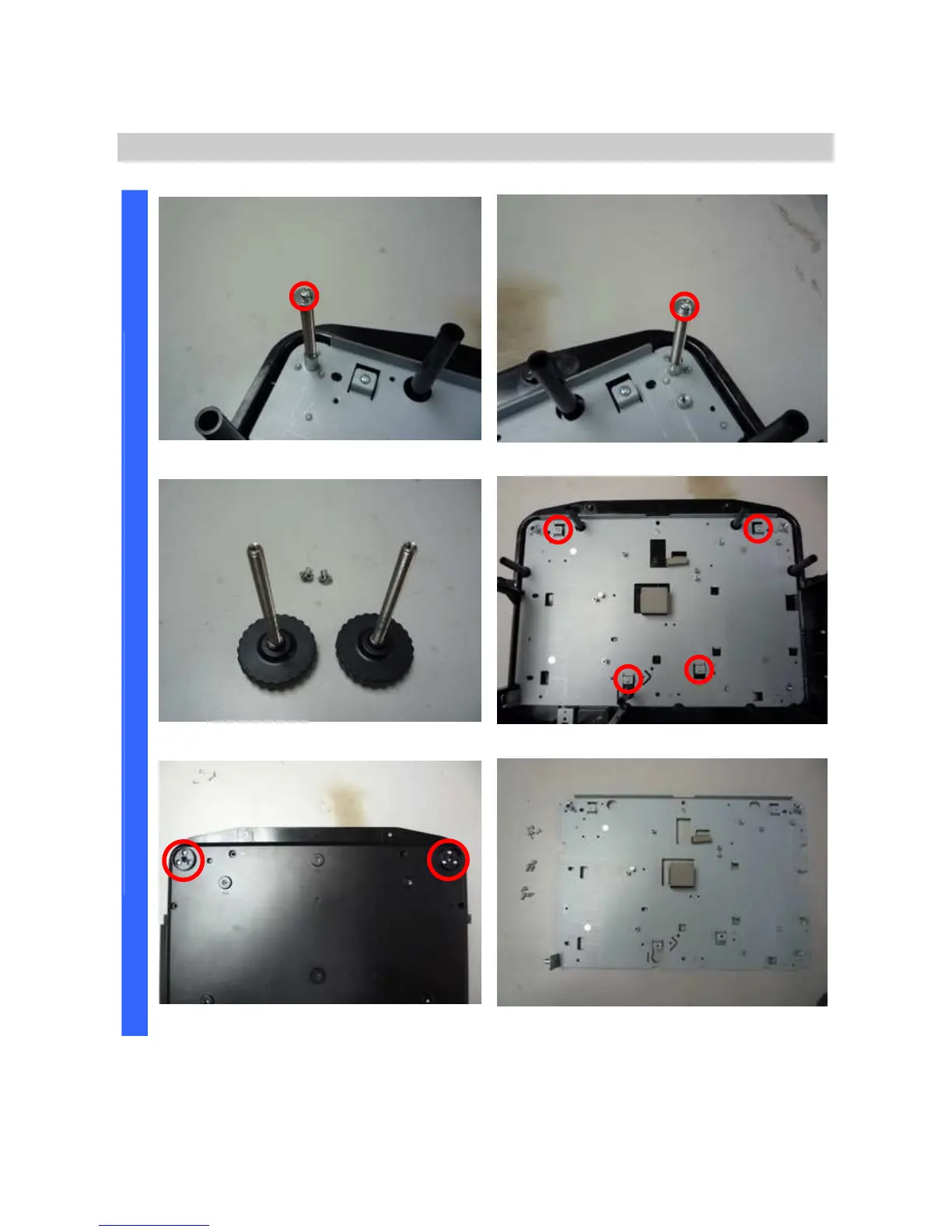

Remove the ADJ Foot and Bottom Chassis
Remove the screw (M3x8). Remove the screw (M3x8).
Look the ADJ Foot. Remove these 4 screws (M3x8).
D
I
S
A
S
S
E
M
B
L
Y
Remove these 6 screws (M3x8). Review the Bottom Case Chassis.
