INTRODUCTION

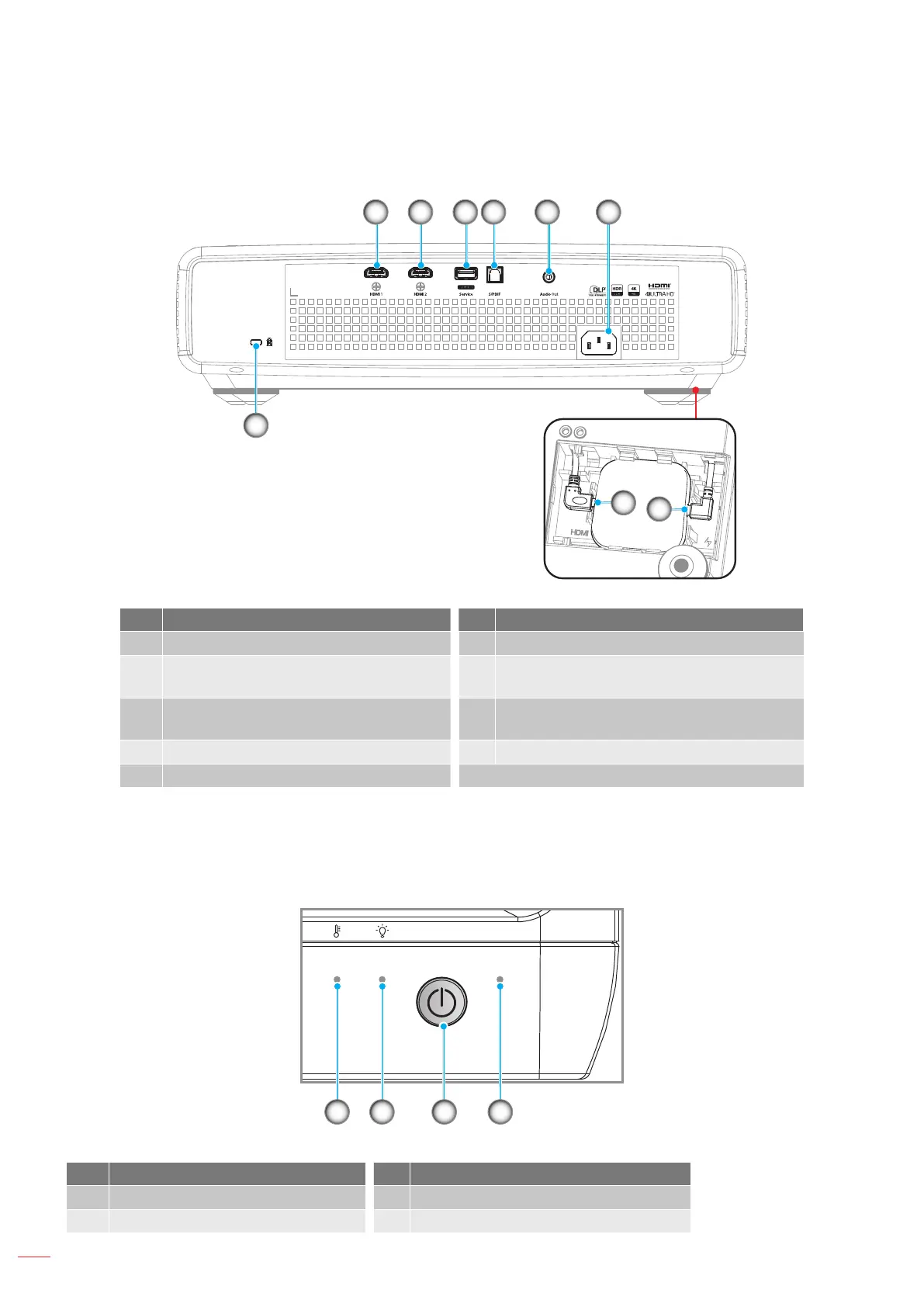

Connections
1 2 3 4 5 6
9
8
7
No Item No Item
1. HDMI 1 Connector (4K 60Hz) 6. Power Socket
2.
HDMI 2 Connector (4K 60Hz) 7. USB Power Out (5V/1.5A)
(micro USB connector for Android TV dongle)
3.
USB Power OUT (5V/1.5A)
Connector(*)
8. HDMI 3 Connector
(micro HDMI connector for ATV dongle)
4. S/PDIF Connector (PCM 2-channel) 9 Kensington
TM
Lock Port
5. Audio Out Connector
Note: (*) Not recommended for charging a cell phone.
Keypad and LED indicators
31 2 4
No Item No Item
1. Temp LED 3. Power Button
2. Light Source LED 4. Power LED
