SETUP AND INSTALLATION
Installing the projector
Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration
the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.

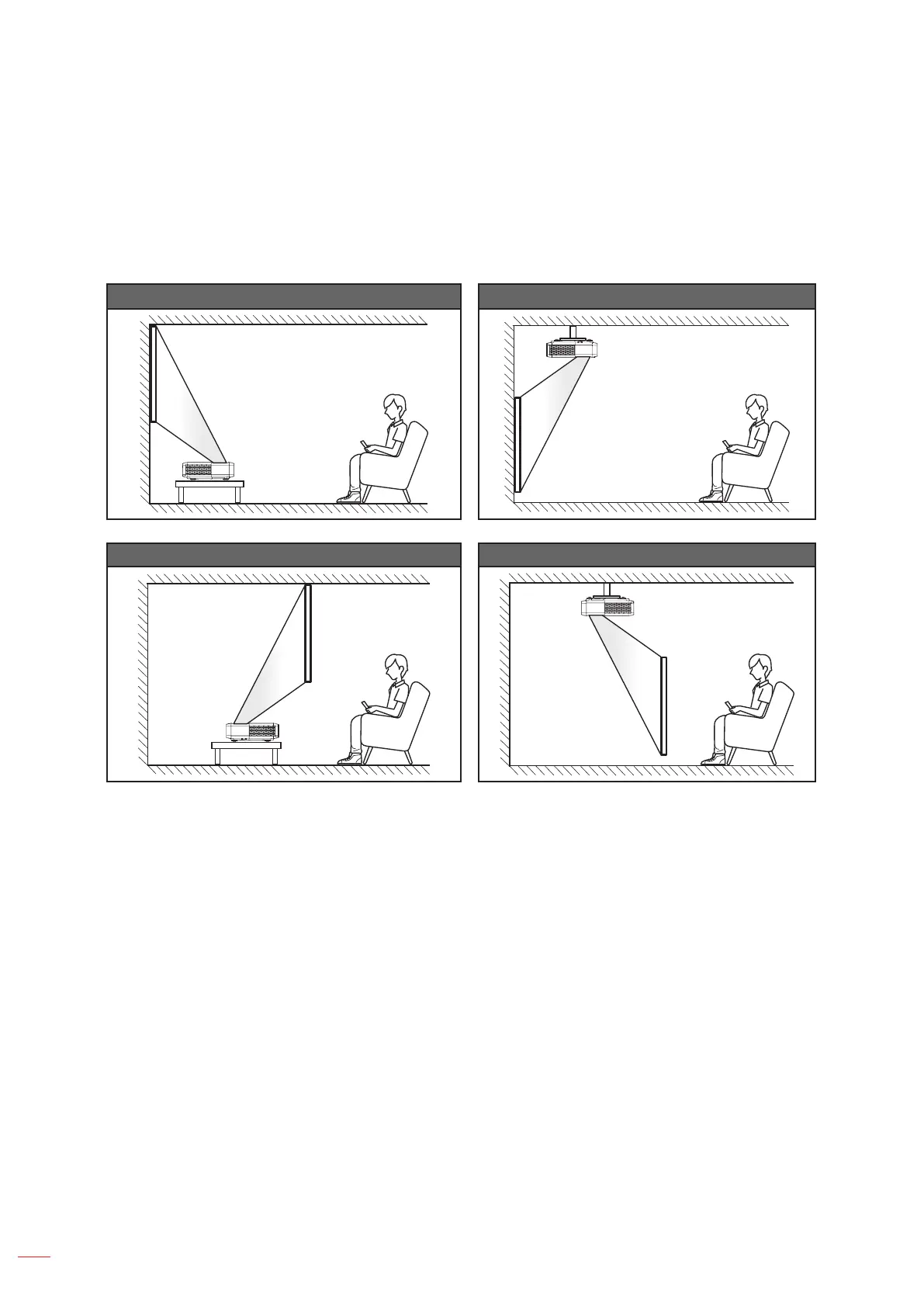

Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the screen.
 How to determine projector location for a given screen size, please refer to distance table on
page 49.
 How to determine screen size for a given distance, please refer to distance table on page 49.
Note:
 The further away the projector is placed from the screen the projected image size increases and
vertical oset also increases proportionally.
 The vertical oset may vary between projectors, due to the limitations of optical manufacturing.
Additional adjustments may occur when switching projectors.

Optoma L1 Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	0.47 - 0.74 m
Vertical scan range	50 - 240 Hz
Projection technology	DLP
Contrast ratio (typical)	1800000:1
Screen size compatibility	75 - 120 \
Projector native resolution	2160p (3840x2160)
Keystone correction, horizontal	10 °
Projector brightness (economic mode)	1050 ANSI lumens
Lamps quantity	1 lamp(s)
Light source type	LED
Service life of light source	30000 h
Focus	Auto/Manual
Offset	126 %
Throw ratio	0.25:1
Fixed focal length	2.63 mm
Analog signal format system	-
DVI port	No
Audio (L/R) out	1
HDMI connector type	Full-size
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
Noise level	28 dB
Preset modes	Game
Number of OSD languages	25
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FAS, FIN, FRE, GRE, HUN, IND, ITA, JPN, NOR, POL, POR, RUM, RUS, SWE, TUR, VIE
RMS rated power	20 W
Number of built-in speakers	2
Placement	Desktop
Product type	Ultra short throw projector
Product color	Black
Market positioning	Home cinema
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power consumption (max)	165 W
Power consumption (standby)	0.5 W
Power consumption (typical)	98 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 %

Weight and Dimensions

Depth	316 mm
Width	400 mm
Height	102.3 mm
Weight	5100 g
Package weight	7800 g
