Issue 2.1 July 25, 2018

screen as is shown below.

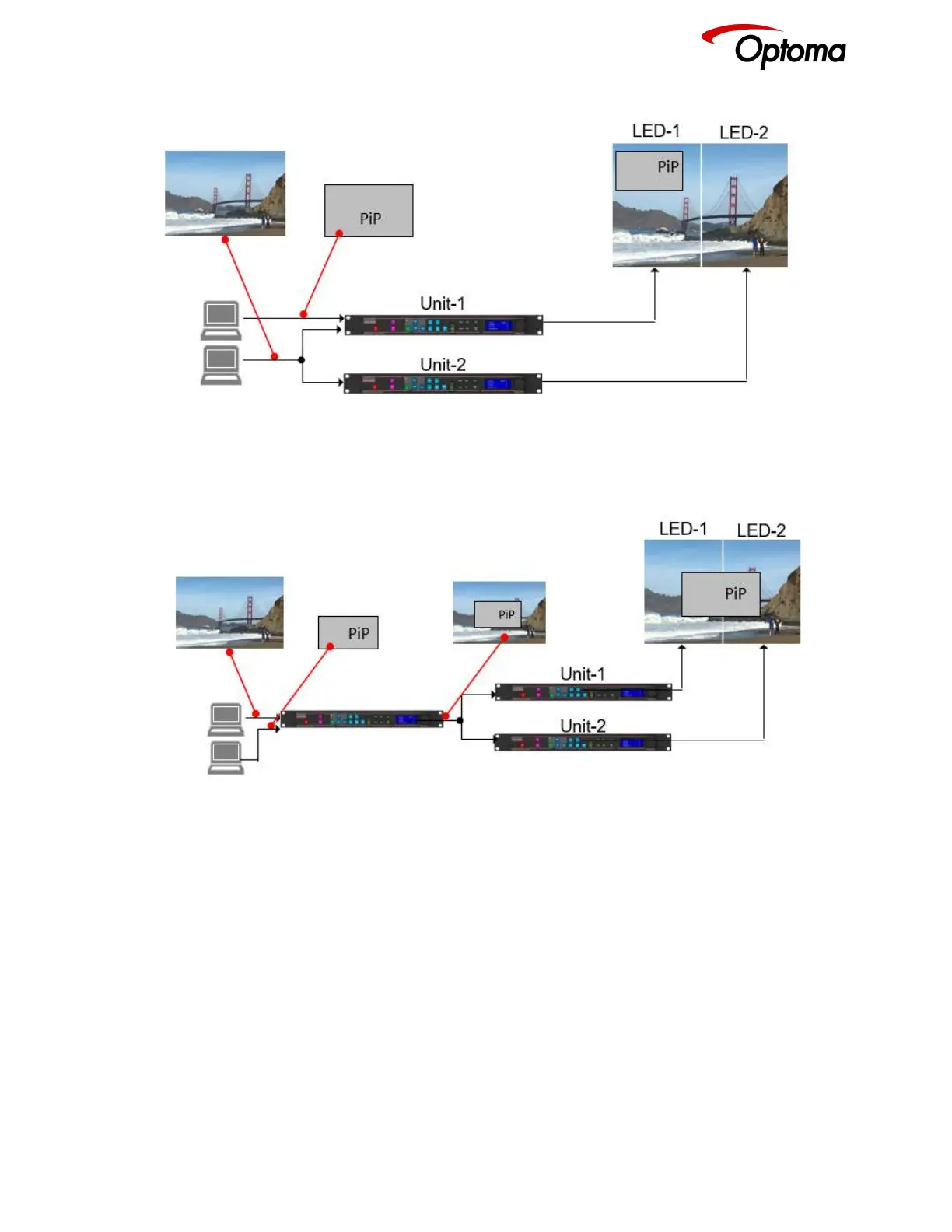

If the PiP needs to straddle two screens, an additional unit is needed upstream to compose the

whole image including the PiP. The composite image is then send to each unit that selects the

corresponding segment.

6.4.1.10 Standard & Advanced LED wall configurations
