Callout Description
1 Connector A tab
2 Left slide-rail front slot

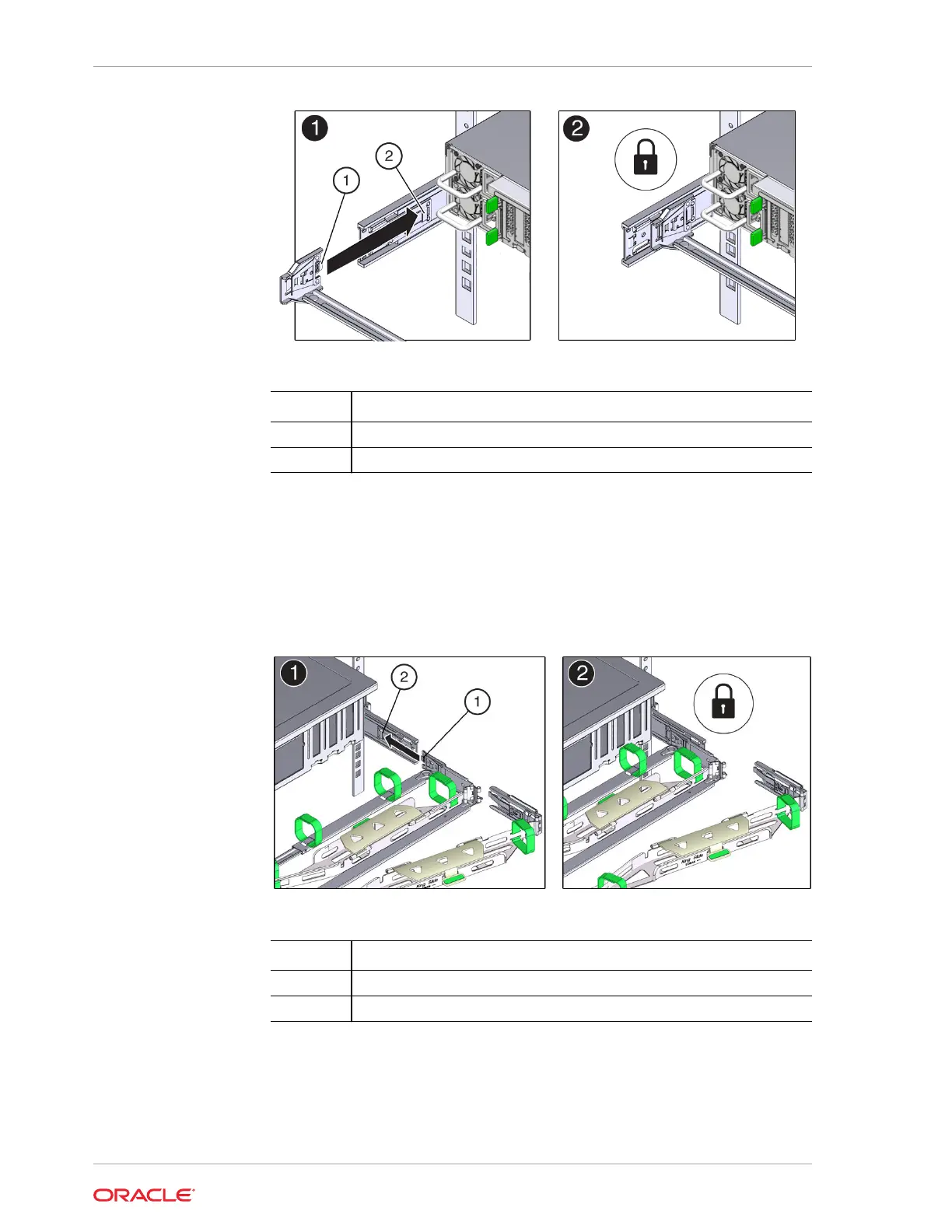

7. To install CMA connector B into the right slide-rail:
a. Insert CMA connector B into the front slot on the right slide-rail until it locks
into place with an audible click, frames [1] and [2].
The connector B tab (callout 1) goes into the slide-rail front slot (callout 2).
b. Gently tug on the right side of the front slide bar to verify that connector B is
properly seated.
Callout Description
1 Connector B tab
2 Right slide-rail front slot
8. To install CMA connector C into the right slide-rail:
a. Align connector C with the slide-rail so that the locking spring (callout 1) is
positioned inside (controller side) of the right slide-rail, frame [1].
