Oracle ZFS Storage ZS5-2 User Manual

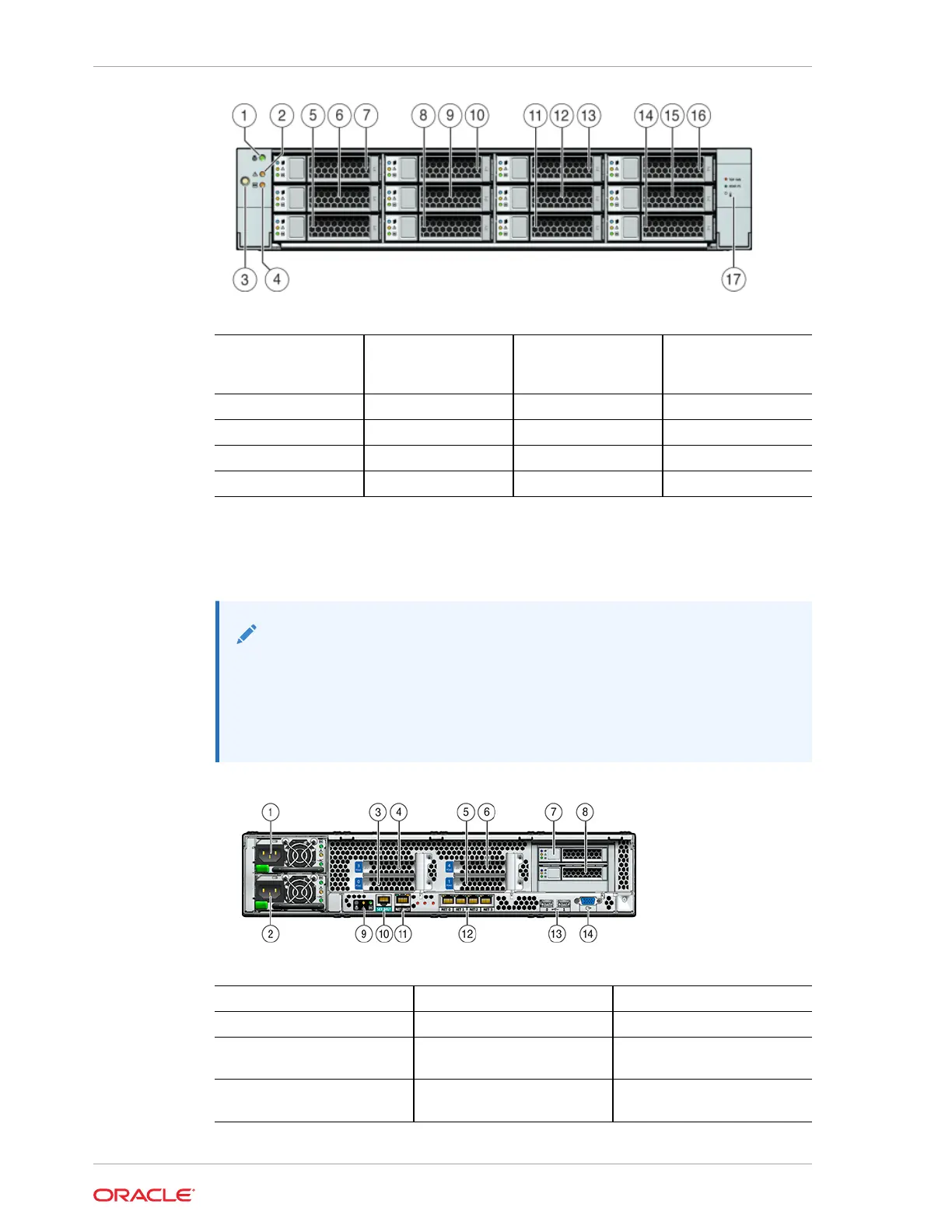

1 Locator LED/button
(white)
2 Service Action
Required LED
(amber)
3 Power button 4 Power/OK LED
(green)
5 HDD 0 6 HDD 1 7 HDD 2 8 HDD or SSD 3
9 HDD 4 10 HDD 5 11 HDD 6 12 HDD 7
13 HDD 8 14 HDD 9 15 HDD 10 16 HDD 11
17 Drive map
Sun ZFS Storage 7120 Rear Panel Components
The following figure and legend show the Sun ZFS Storage 7120 rear panel.
Note:
Optional Sun Dual Port 40Gb/sec 4x Infiniband QDR HCAdapter PCIe cards
(375-3606-01) may be located in slots 1, 2, or 3. 375-3606-01 HCA
expansion cards are not supported in the 10Gb network configurations. For
more information about PCIe cards, see 7120 PCIe Options in Oracle ZFS
Storage Appliance Customer Service Manual, Release OS8.8.x.
1
Power Supply Unit 1 2 Power Supply Unit 0 3 PCIe 0
4 PCIe 3 5 PCIe 1 6 PCIe 4
7 Boot HDD 1 8 Boot HDD 0 9 Rear Panel System Status
LEDs
10 Serial Management port 11 Network Management port 12 Gbit Ethernet ports NET 0,
1, 2, 3
Chapter 2
Overview of the Sun ZFS Storage 7120 Controller
2-58
