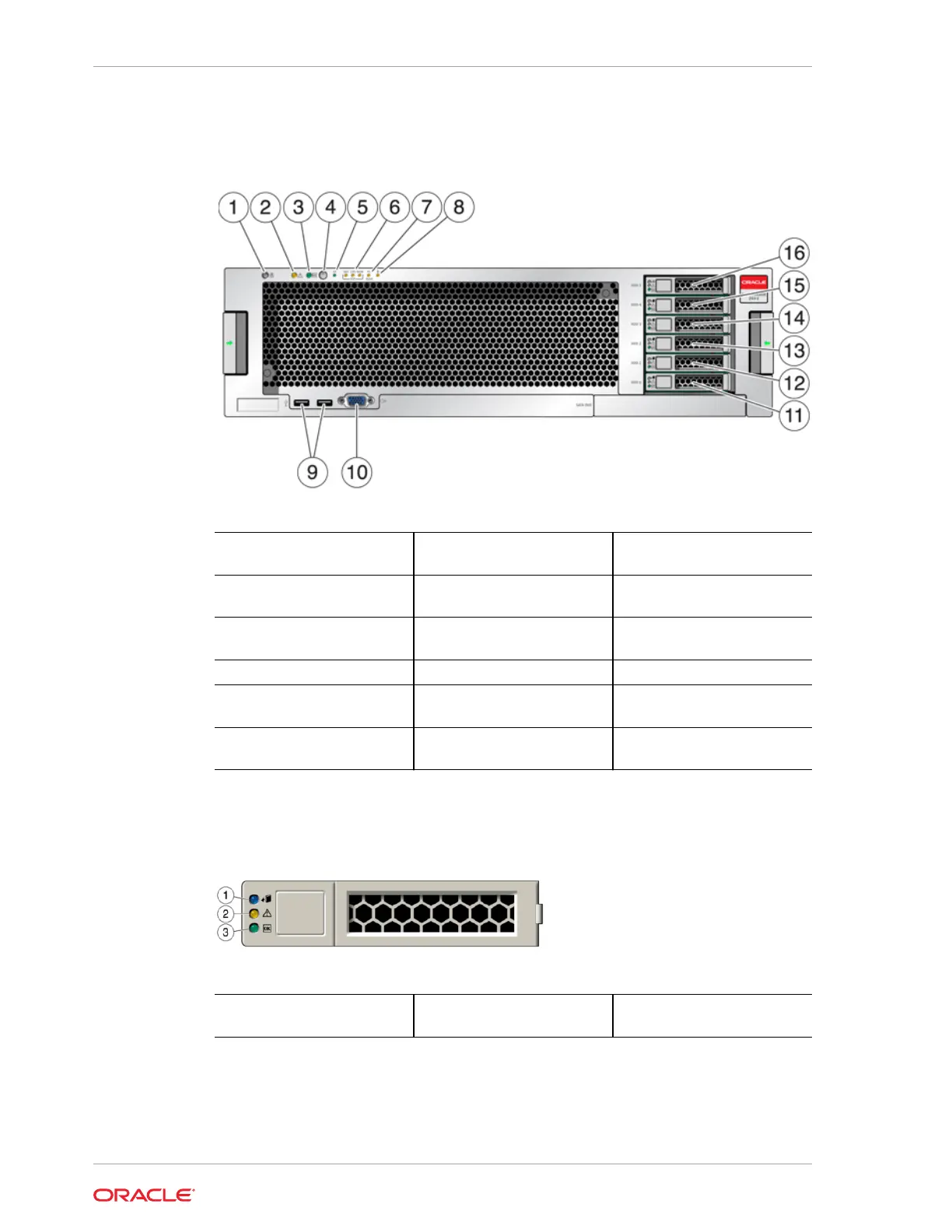

Oracle ZFS Storage ZS3-4 Front Panel Components
1 Locator LED and button
(white)
2 Service Required LED
(amber)
3 Power/OK LED (green)
4 Power button 5 Service Processor (SP) OK
LED (green)
6 Fan/CPU/Memory Service
Required LED
7 Power Supply (PS) Service
Required LED
8 Over Temperature Warning
LED
9 USB 2.0 Connectors
10 DB-15 video connector 11 Boot drive 0 (required) 12 Boot drive 1 (required)
13 Solid state drive 2
(optional)
14 Solid state drive 3
(optional)
15 Solid state drive 4
(optional)
16 Solid state drive 5
(optional)
The Oracle ZFS Storage ZS3-4 controller has two SAS-2 system boot drives in slots 0
and 1, configured as a mirrored pair. Up to four SAS-2 read cache SSDs can fill slots 2
through 5, in order.
1
Ready to remove (blue) 2 Service action required
(amber)
3 OK/Activity (green)
Oracle ZFS Storage ZS3-4 Rear Panel Components
The following graphic shows the rear panel of the Oracle ZFS Storage ZS3-4
controller. Base configuration HBAs are not depicted in this illustration.
Chapter 2
Overview of the Oracle ZFS Storage ZS3-4 Controller
2-44
