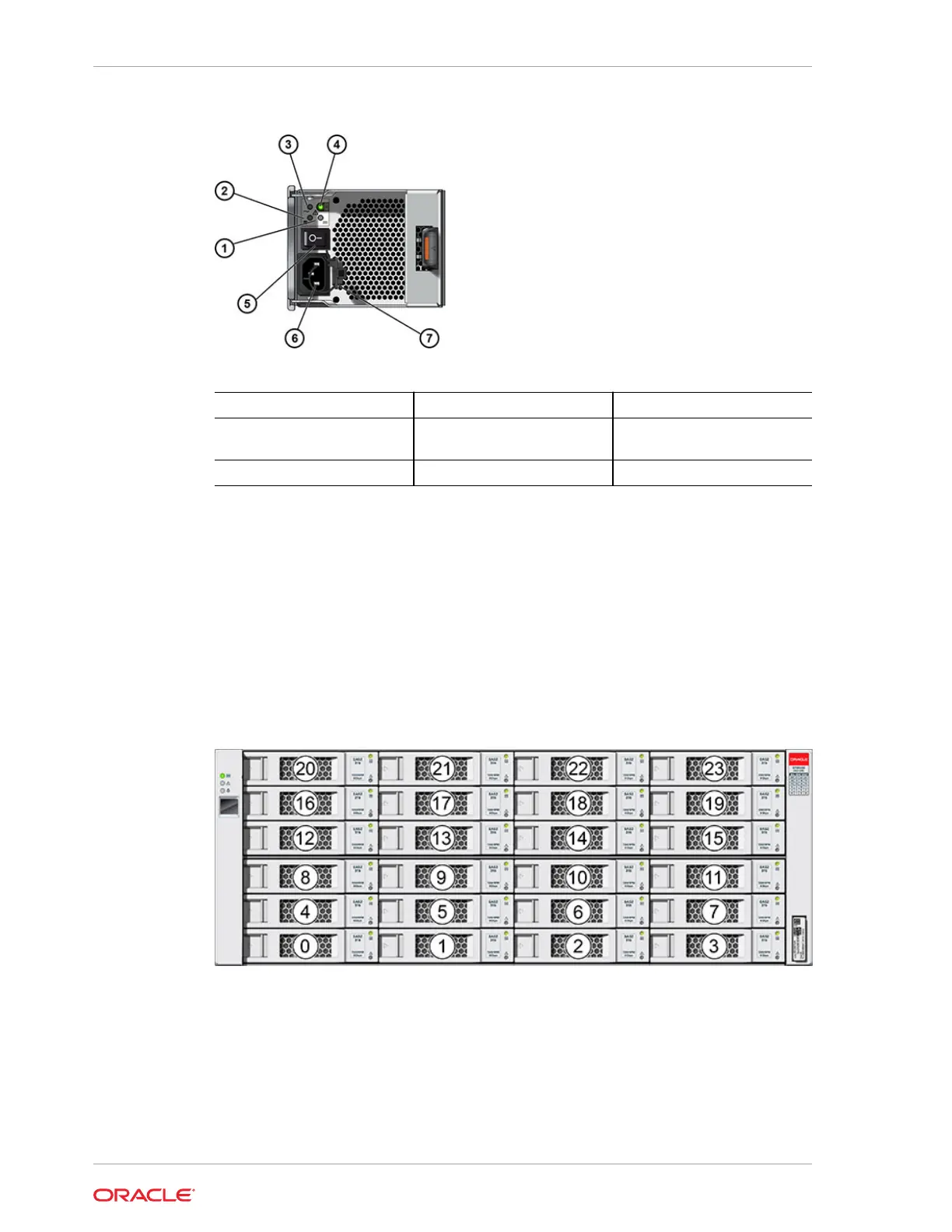

Oracle Storage Drive Enclosure DE2 Power Supply Indicators
1 DC power fail indicator 2 Fan fail indicator 3 AC power fail indicator
4 Power supply status
indicator
5 Power on/off switch 6 Universal power input
connector
7 Power cord tie wrap
The Oracle Storage Drive Enclosure DE2-24C and DE2-24P disk shelves use the
same power supply.
Sun Disk Shelf
The Sun Disk Shelf is a 4U chassis that supports 24 3.5" SAS-2 drives. The SSDs
provide accelerated write operations, and the high-capacity HDDs provide reliable
storage. This disk shelf features dual, redundant SAS Interface Module (SIM) boards,
and dual power supply with fan modules.
Sun Disk Shelf Drive Locations (Front View)
Read cache devices cannot be installed in the Sun Disk Shelf.
Sun Disk Shelf Status Indicators (Front View)
