Drive slots 0 and 1 have two mirrored SAS-2 boot drives. Up to four read cache SSDs
fill slots 2 through 5, in order. Slots 6 and 7 are empty and must contain drive fillers.
1 Locator LED/button (white) 2 Service Action Required
LED (amber)
3 Power OK LED (green)
4 Power button 5 Service Processor OK LED
(green)
6 Fan/CPU/Memory Service
Required LED
7 USB 2.0 ports
Note:
The LEDs below the Fan/CPU/Memory Service Required LED are not
currently used.

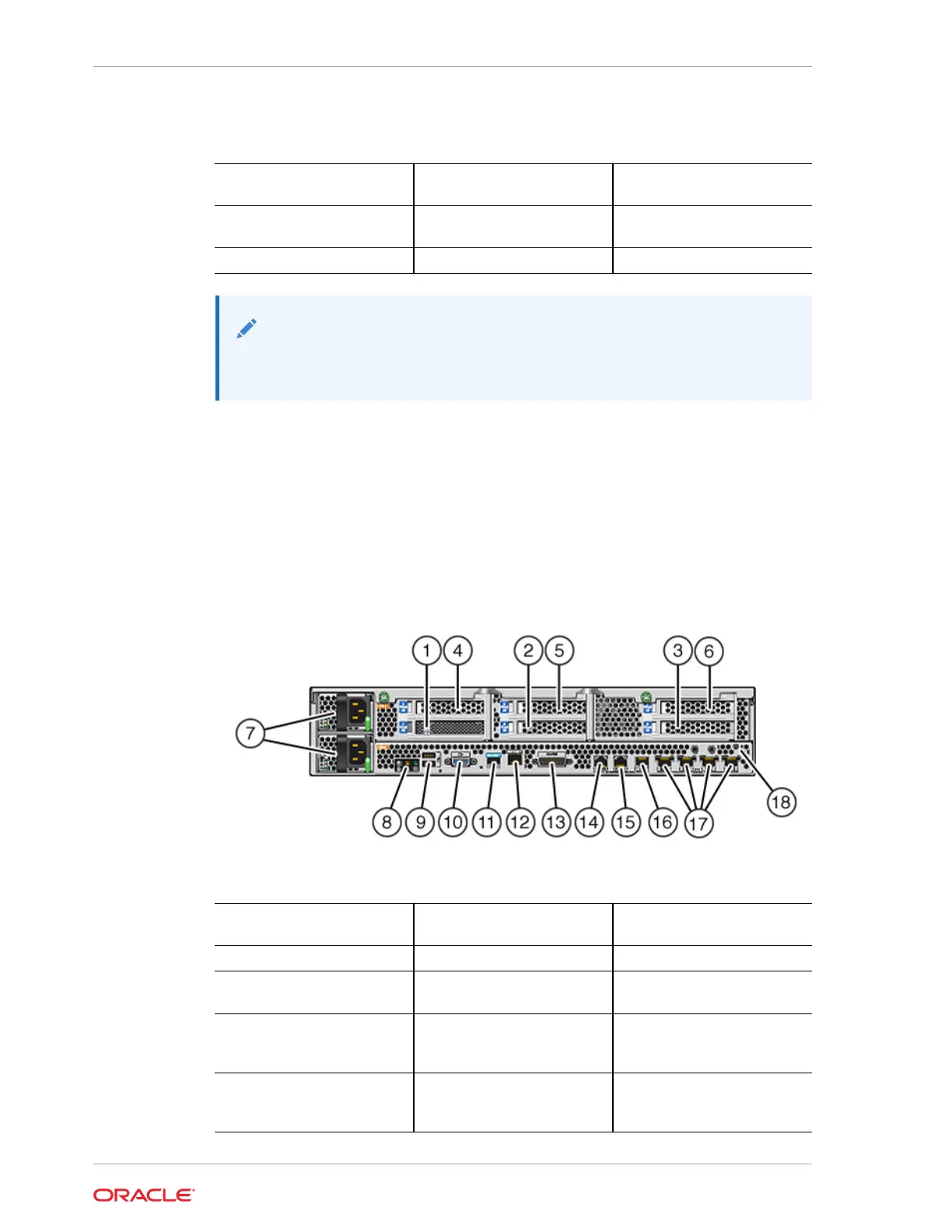

Oracle ZFS Storage ZS3-2 Rear Panel Components
The Oracle ZFS Storage ZS3-2 controller PCIe slots and rear panel components are
shown in the following figure.
For more information about PCIe cards, see ZS3-2 PCIe I/O Cards in Oracle ZFS
Storage Appliance Customer Service Manual, Release OS8.8.x.
1
SAS-2 internal HBA (slot 1) 2 4x4 SAS external HBA (slot
2)
3 PCIe slot 3
4 PCIe slot 4 5 PCIe slot 5 6 PCIe slot 6
7 AC power supplies PS1
(top), PS0 (bottom)
8 System status LEDs 9 USB 2.0 ports
10 SP 15-pin VGA video port 11 Serial management port 12 Network management
(NET MGT) 10/100 BASE-T
Ethernet port
13 Alarm port, DB-15
connector (not used for the
ZS3-2)
14-16 Cluster I/O ports 17 10-Gbit Ethernet ports
Chapter 2
Overview of the Oracle ZFS Storage ZS3-2 Controller
2-48
