18 Chassis ground post
Note:
The three Cluster I/O ports (0, 1, and GigE) are reserved for cluster interconnection
only.

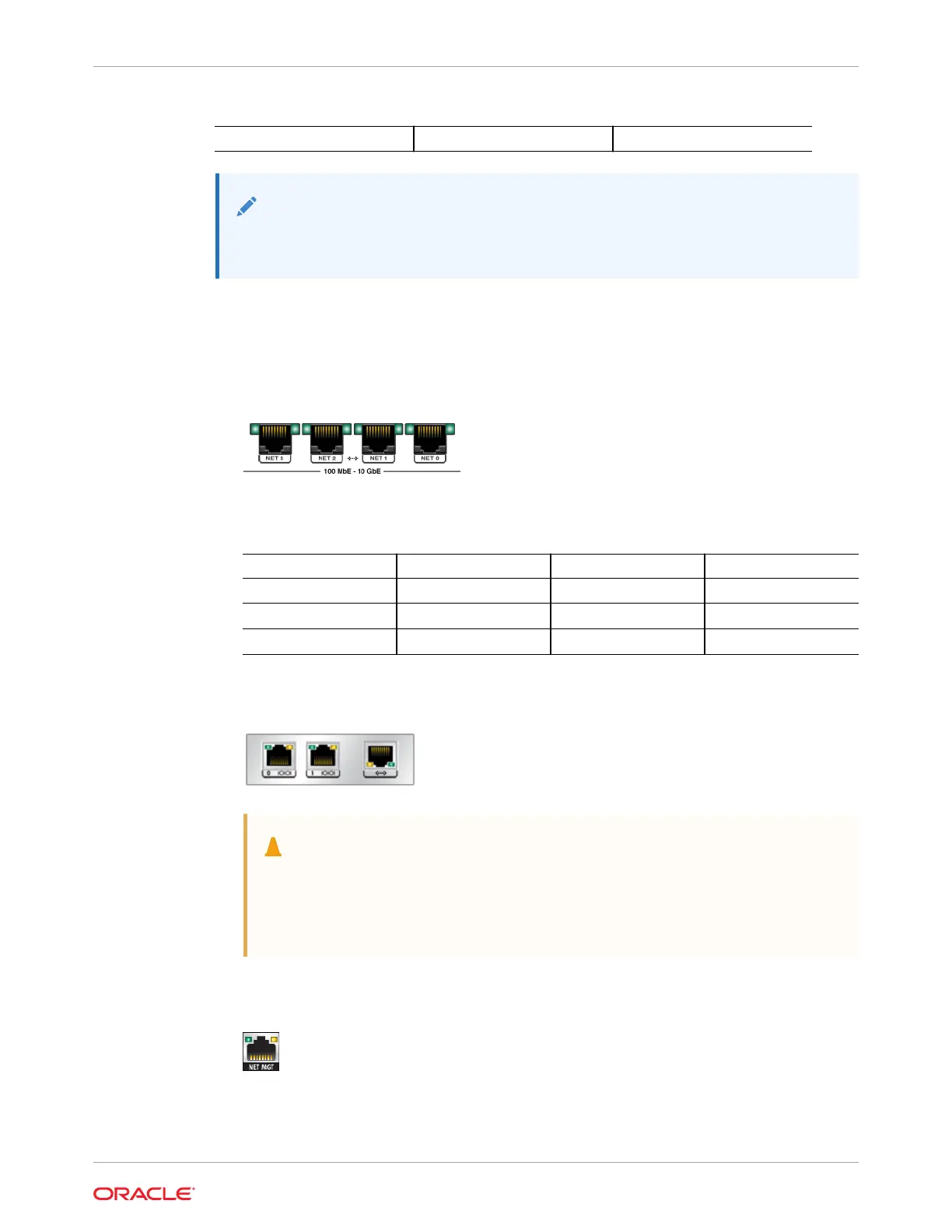

The Oracle ZFS Storage ZS3-2 controller has the following ports:
• Ethernet Ports - Oracle ZFS Storage ZS3-2 has four RJ-45 10-Gigabit Ethernet (10GbE)
network connectors, labeled NET 3, NET 2, NET 1, and NET 0 (left to right) on the rear
panel. The ports operate at 100 Mbits/sec, 1000 Mbits/sec, or 10-Gbits/sec. Use these
ports to connect the appliance to the network.
The LEDs located above each NET port are Link/Activity (left) and Speed (right)
indicators for each port as described in this table:
Connection Type
EEE Terminology Speed LED Color Transfer Rate
Fast Ethernet 100BASE-TX Off 100 Mbits/sec
Gigabit Ethernet 1000BASE-T Amber 1000 Mbits/sec
10 Gigabit Ethernet 10GBASE-T Green 10000 Mbits/sec
• Cluster I/O Ports - Two cluster serial ports (0 and 1) and one Ethernet port provide
communication between two controllers to form a cluster configuration. For information
about how to connect cables to form a cluster, see Connecting Disk Shelf Cables.
Caution:
When disconnecting an RJ-45 cable from a cluster serial port (0 and 1), use
extreme care not to damage the internal RJ-45 receptacle. To properly
disconnect an RJ-45 cable from a cluster serial port, see Disconnecting an
RJ-45 Cable.
• Network Management Port - The network management connector (NET MGT) is an
RJ-45 10/100 BASE-T Ethernet port and provides an alternate terminal interface to the
SP console.
• Serial Management Port - The serial management connector (SER MGT) is an RJ-45
port and provides a terminal connection to the service processor (SP) console.
Chapter 2
Overview of the Oracle ZFS Storage ZS3-2 Controller
2-49
