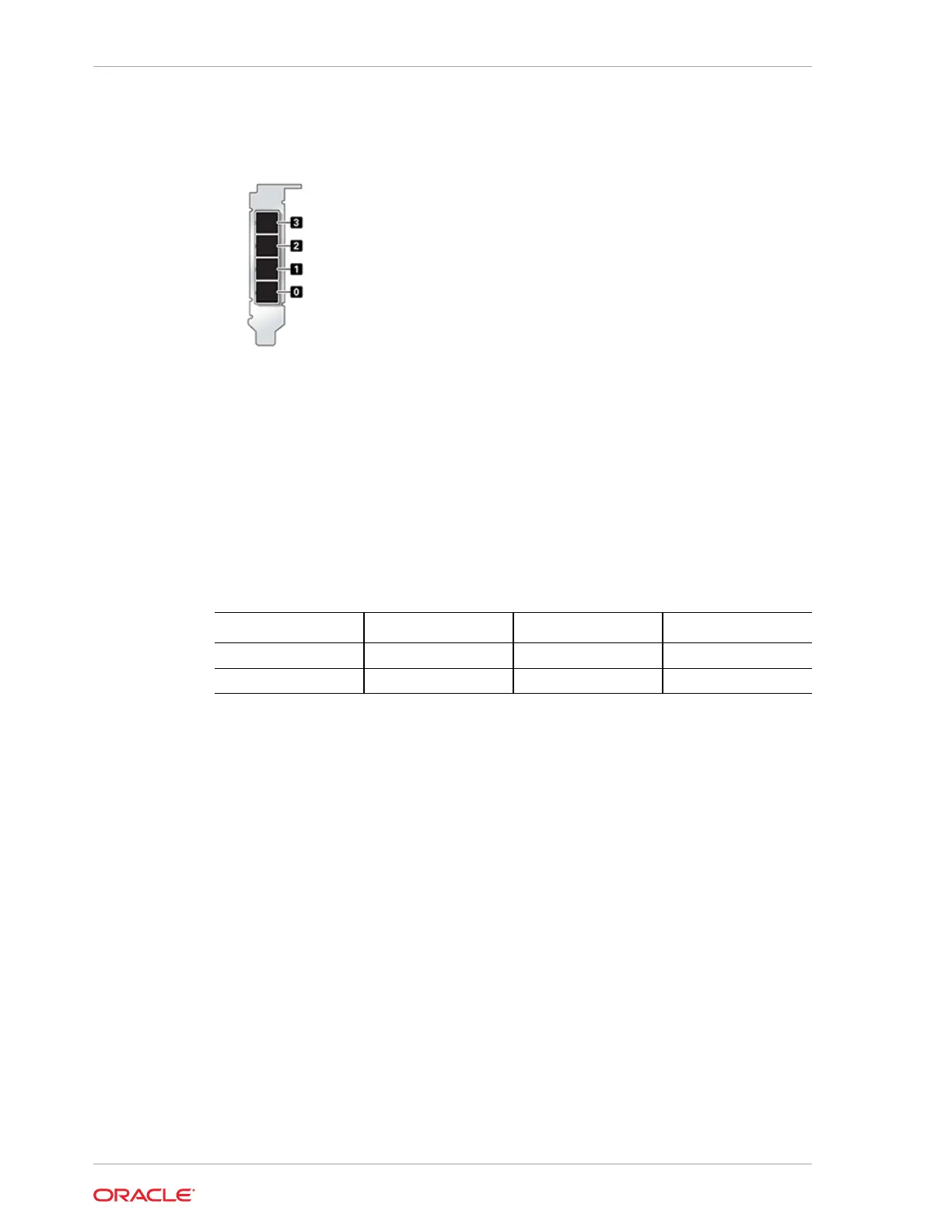

• HBA Ports - The 4x4 SAS-2 HBA, installed in Oracle ZFS Storage ZS3-4,
provides connectivity to external Oracle Storage Drive Enclosure DE2 and Sun
Disk Shelves. The HBA logical ports are numbered 3-0, top to bottom:
Overview of the Oracle ZFS Storage ZS3-2 Controller
This section provides an overview of the Oracle ZFS Storage ZS3-2 controller. For
installation instructions, refer to Installing an Oracle ZFS Storage ZS3-2 Controller. For
service instructions, refer to Servicing the ZS3-2 Controller in Oracle ZFS Storage
Appliance Customer Service Manual, Release OS8.8.x.
Oracle ZFS Storage ZS3-2 Physical Specifications
The Oracle ZFS Storage ZS3-2 controller 2U chassis dimensions are as follows:
Dimension Measurement Dimension Measurement
Height 3.44 in./87.4 mm Depth 20.25 in./514 mm
Width 17.52 in./445 mm Weight 41.23 lb/18.70 kg
Oracle ZFS Storage ZS3-2 Electrical Specifications
The Oracle ZFS Storage ZS3-2 controller electrical specifications are listed below. The
power dissipation numbers listed are the maximum rated power numbers for the
power supply. The numbers are not a rating of the actual power consumption of the
appliance.
Connectors
• Two C13 connectors, which work on 110-220v outlets
Input
• Nominal frequencies: 50/60Hz (47 to 63 Hz range)
• Nominal voltage range: 100 to 120/200 to 240 VAC
• Maximum current AC RMS: 6.8 A @ 100-120 V / 3.4 A @ 200-240 V
• AC operating range: 90-264 VAC
Output
• 3.3 VDC STBY: 3.0A
• +12 VDC: 86.7A
Chapter 2
Overview of the Oracle ZFS Storage ZS3-2 Controller
2-46
