HDD1 HDD3 HDD5
HDD0 HDD2 HDD4 HDD6 HDD7

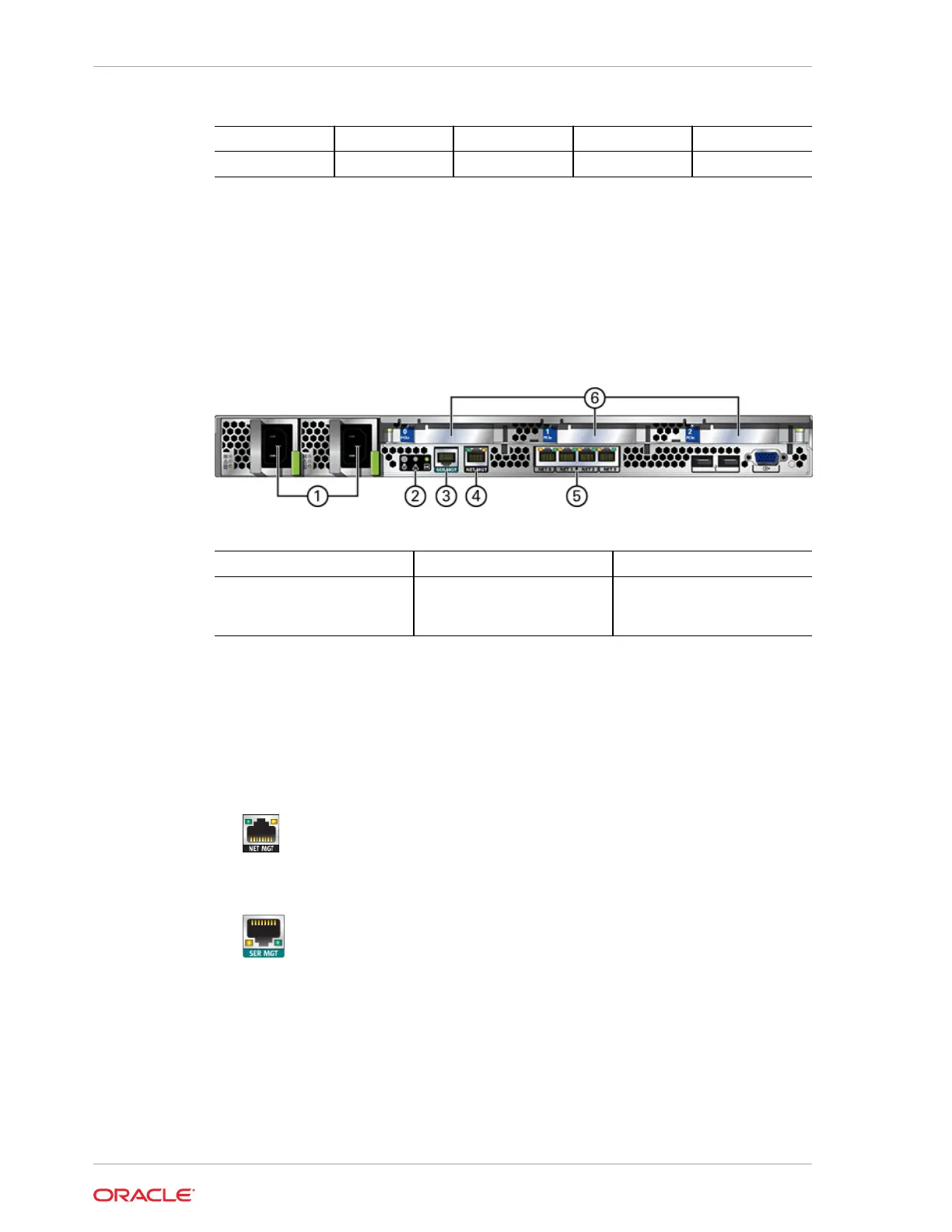

Sun ZFS Storage 7320 Rear Panel Components
Following is an illustration of the Sun ZFS Storage 7320 storage controller rear panel.
The Sun 375-3609 belongs in slot 2, cannot be installed in any other slots, and a
second is not offered as an option.
For information about PCIe cards, see 7320 Configuration Options in Oracle ZFS
Storage Appliance Customer Service Manual, Release OS8.8.x.
1 Power supplies
2 SC summary status LEDs 3 Serial management port
4 Network management (NET
MGT) 10/100 BASE-T
Ethernet port
5 Ethernet ports 6 PCIe slots
The Sun ZFS Storage 7320 controller has the following ports:
• Ethernet Ports - There are four RJ-45 Gigabit Ethernet ports (NET 0, NET 1, NET
2, NET 3) located on the motherboard that operate at 10/100/1000 Mbit/sec.
These network interfaces must be configured before use.
• Network Management Port - The network management connector (NET MGT) is
an RJ-45 10/100 BASE-T Ethernet port and provides an alternate terminal
interface to the SP console.
• Serial Management Port - The serial management connector (SERIAL MGT) is
an RJ-45 connector and is a terminal connection to the SP console.
Overview of the Sun ZFS Storage 7120 Controller
This section provides an overview of the Sun ZFS Storage 7120 controller. For
installation instructions, refer to Installing a Sun ZFS Storage 7x20 Controller. For
service instructions, refer to the Oracle ZFS Storage Appliance Customer Service
Manual, Release OS8.8.x.
Chapter 2
Overview of the Sun ZFS Storage 7120 Controller
2-56
