4 Connector B 9 Cable covers
5 Connector C
Overview of the Oracle ZFS Storage ZS4-4 Controller
This section provides an overview of the Oracle ZFS Storage ZS4-4 controller. For
installation instructions, refer to Installing an Oracle ZFS Storage ZS4-4 or Oracle ZFS
Storage ZS3-4 Controller. For service instructions, refer to Servicing the ZS4-4
Controller in Oracle ZFS Storage Appliance Customer Service Manual, Release
OS8.8.x.
Refer to https://oracle.com/zfsstorage for the most recent component specification.

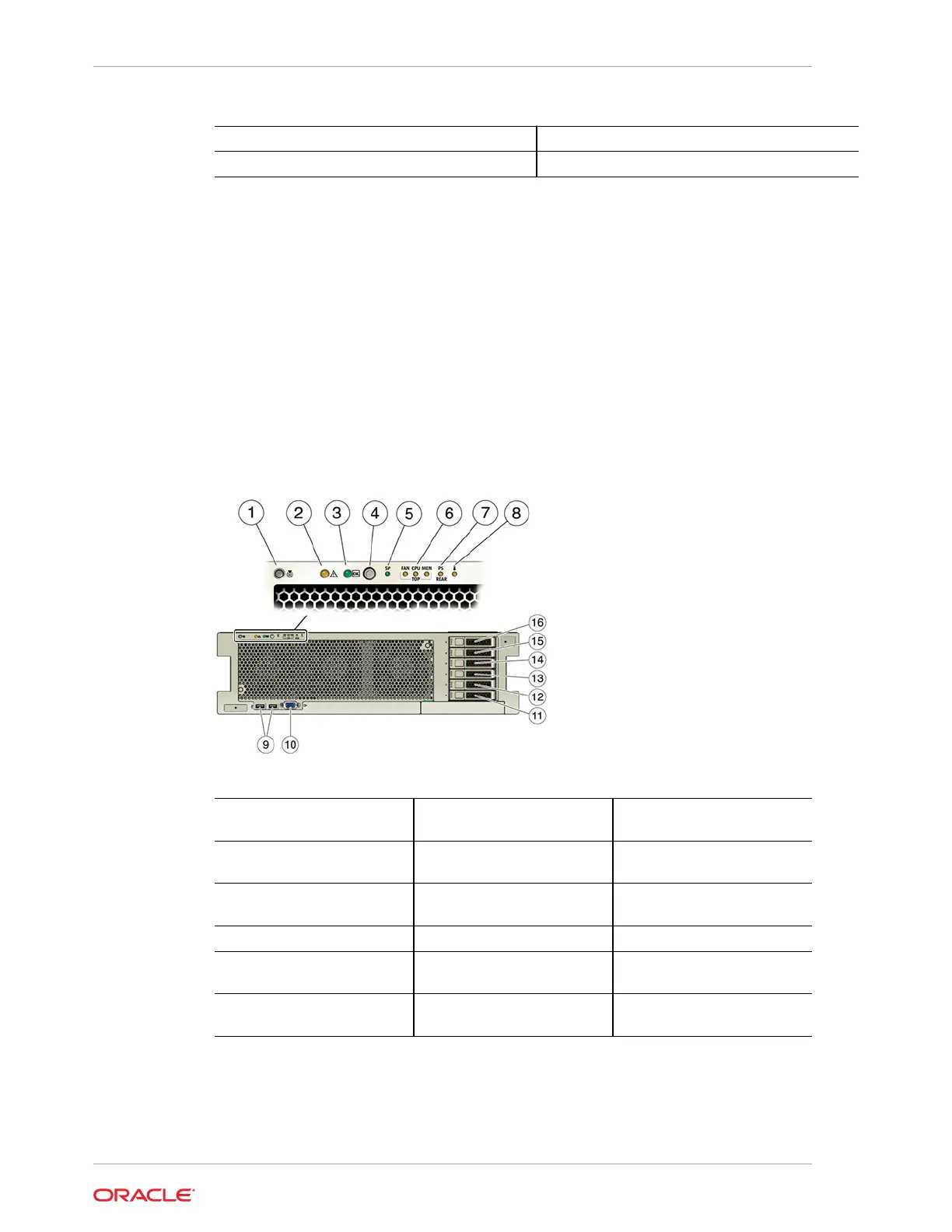

Oracle ZFS Storage ZS4-4 Front Panel Components
The Oracle ZFS Storage ZS4-4 controller drive slots and front panel components are
shown in the following figure.
1 Locator LED/button (white)
2 Service action required LED
(amber)
3 Power/OK LED (green)
4 Power button 5 Service Processor (SP) OK
(green)/Fault (amber) LED
6 Fan/CPU/Memory Service
action required LED (amber)
7 Power Supply (PS) Service
action required LED (amber)
8 Over temperature warning
LED (amber)
9 USB 2.0 connectors (2)
10 DB-15 video port 11 Boot drive 0 (required) 12 Boot drive 1 (required)
13 Solid state drive 2
(optional)
14 Solid state drive 3
(optional)
15 Solid state drive 4
(optional)
16 Solid state drive 5
(optional)
The Oracle ZFS Storage ZS4-4 controller has two 2.5-inch SAS system boot drives in
slots 0 and 1, configured as a mirrored pair. Up to four SAS read cache SSDs can fill
slots 2 through 5, in that order. A filler panel must be installed in empty drive slots.
The system boot drive LEDs are shown in the following figure.
Chapter 2
Overview of the Oracle ZFS Storage ZS4-4 Controller
2-40
