4 Permanent HDD filler panels 5 System disk 1 6 System disk 0
7 DVD filler panel 8 DB-15 VGA port 9 Two USB 2.0 ports
10 RFID tag

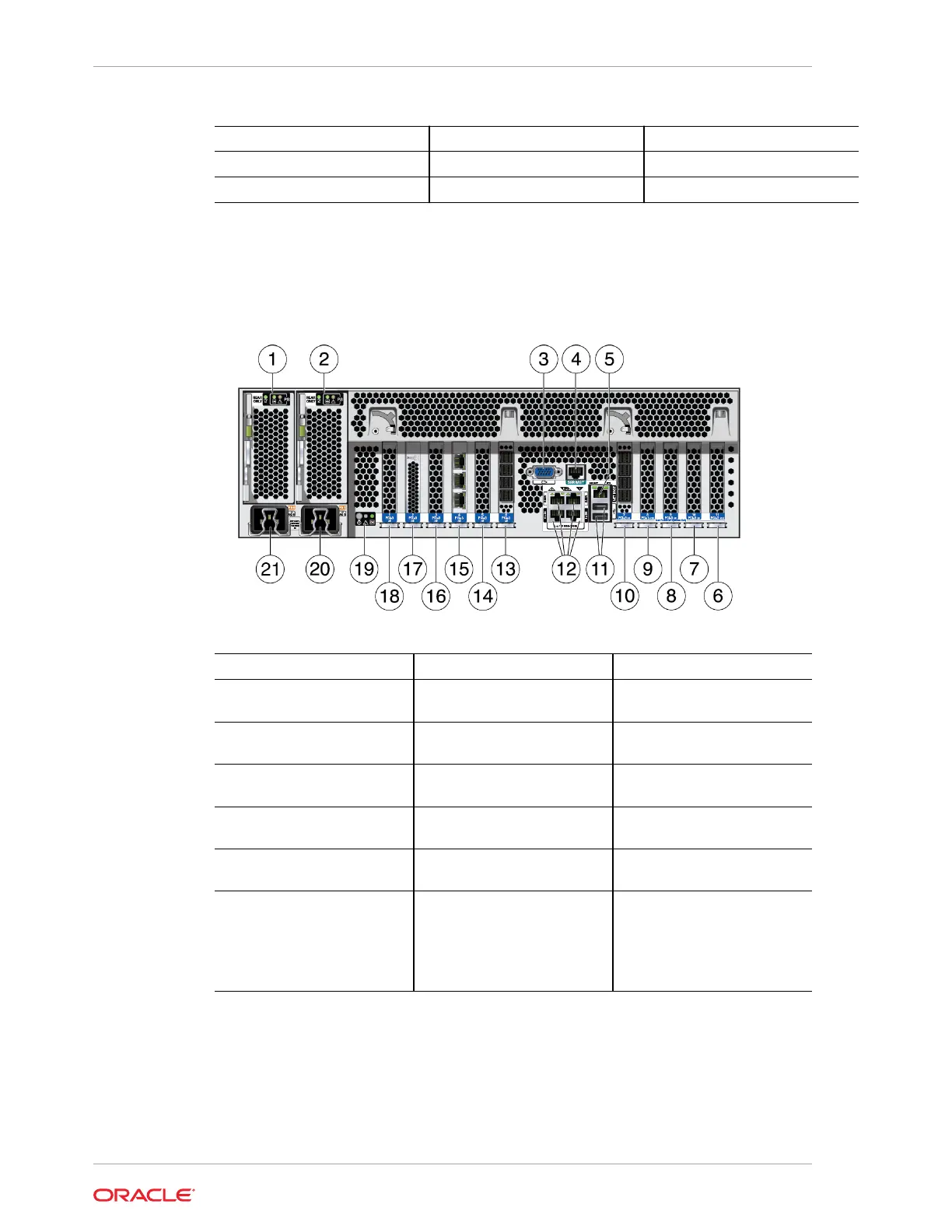

Oracle ZFS Storage ZS5-4 Rear Panel Components
The Oracle ZFS Storage ZS5-4 controller PCIe slots and rear panel components are
shown in the following figure.
1 Power Supply Unit (PSU) 0 2 PSU 1 3 DB-15 VGA port
4 SER MGT port 5 Service Processor (SP) NET
MGT port
6 First PCle (slot 11)
7 Fifth PCIe (slot 10) 8 Third 4x4 SAS HBA or
seventh PCIe (slot 9)
9 Second PCIe (slot 8)
10 4X4 SAS HBA (slot 7) 11 Two USB 2.0 ports 12 Network (NET) 10 Gb
Ethernet ports, NET 0 - NET 3
13 4X4 SAS HBA (slot 6) 14 Third PCIe (slot 5) 15 Cluster interface card (slot
4)
16 Fourth 4X4 SAS HBA or
sixth PCIe (slot 3)
17 Internal SAS-3 HBA (slot
2)
18 Fourth PCIe (slot 1)
19 System status LEDs (left to
right)
• Power/OK (green)
• Attention (amber)
• Locate (white)
20 PSU 1 AC inlet 21 PSU 0 AC inlet
Cluster Interface Card Compatibility - The Oracle ZFS Storage ZS5-4 controller
contains a Version 3 cluster interface card, which is incompatible with Version 2.
For information about how to connect cables to form a cluster, see Connecting Cluster
Cables.
Chapter 2
Overview of the Oracle ZFS Storage ZS5-4 Controller
2-36
