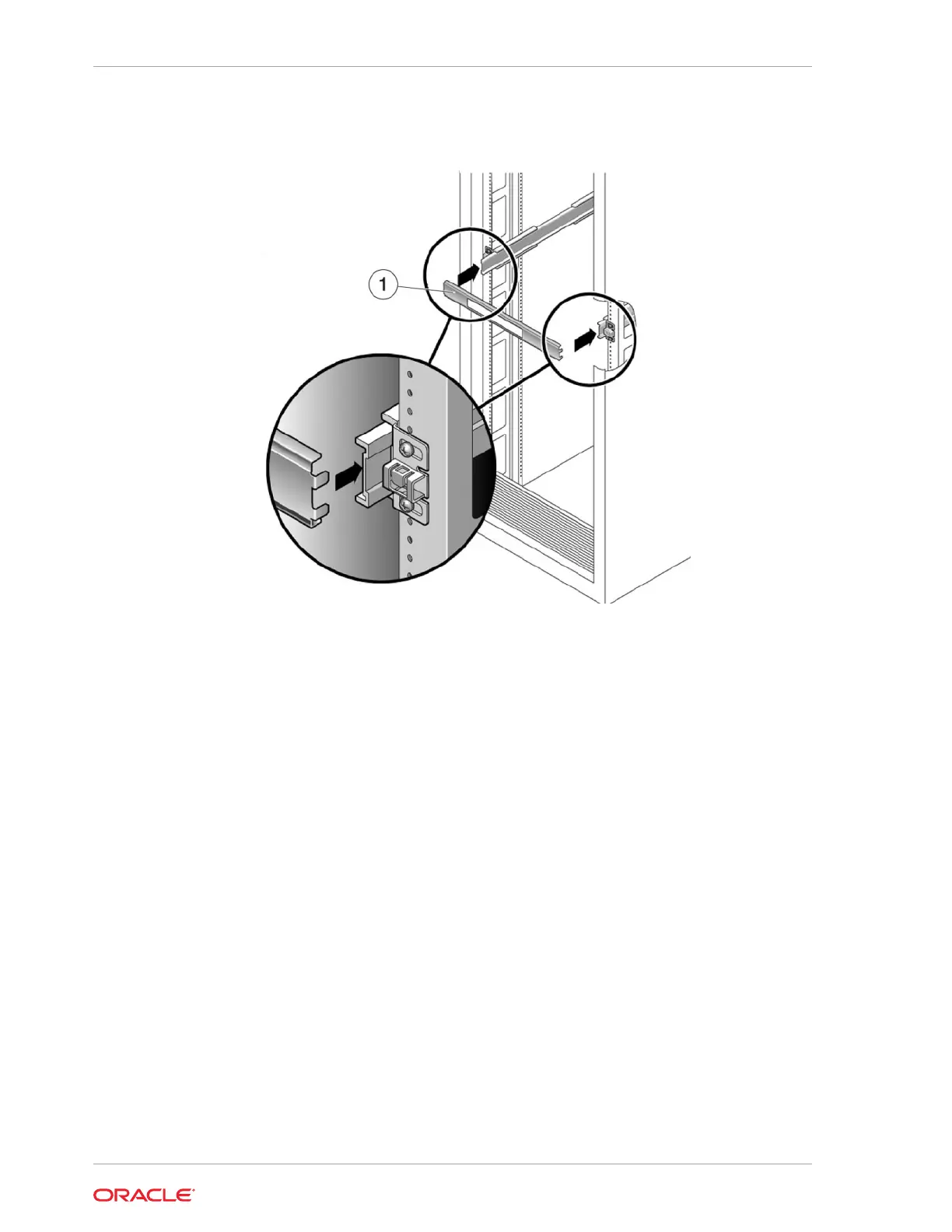

4. From the front of the rack, set the proper width of the rails with the rail-width
spacer (1).
5. Tighten the screws on the brackets.
6. Remove the spacer and confirm that the rails are attached tightly to the rack.
7. Lower the rack stabilization and anti-tilt devices if you have not already done so.
8. Push the slide rails into the slide rail assemblies in the rack as far as possible.
9. Raise the chassis so that the back ends of the mounting brackets are aligned with
the slide rail and insert the chassis into the slide rails, pushing the chassis slowly,
until the mounting brackets meet the slide rail stops (~12 in or 30 cm).
You will hear an audible click.
Example 10-3 Installing a Sun ZFS Storage 7120/7320 Controller onto the Rack
Slide Rails
The following graphic illustrates the Sun ZFS Storage 7120/7320 chassis insertion and
slide rail locks usage.
Chapter 10
Installing a Sun ZFS Storage 7x20 Controller onto the Rack Slide Rails
10-6
