interface cards employ serial-based clustering using two serial cluster links, and
provide Ethernet connectivity via one link.
For all controllers, the LEDs for the cluster ports have the following meanings. Note
that for serial cluster ports, only one of the LEDs (the link status LED) is used. For
Ethernet ports, both LEDs are used. See the following figures.
Activity LED
• Flashing green: Data activity
Link Status LED
• Solid green: Normal connection
• Solid yellow or off: Degraded connection

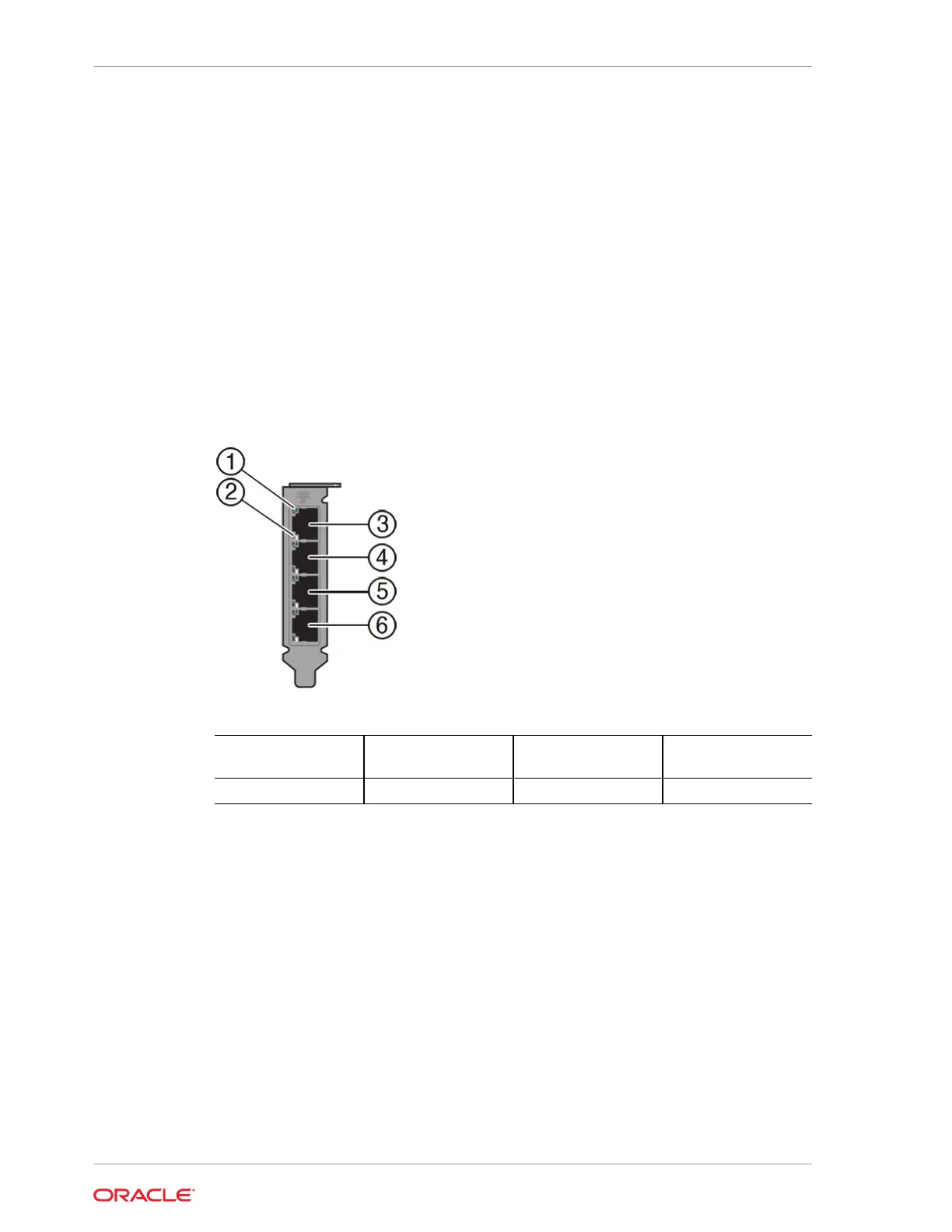

The following diagram illustrates the cluster Ethernet ports for Oracle ZFS Storage
ZS9-2 controllers.
1 Ethernet Activity
LED
2 Ethernet Link Status
LED
3 Port 3 (Ethernet I/O) 4 Port 2 (Ethernet I/O)
5 Port 1 (Cluster Link) 6 Port 0 (Cluster Link)
The following diagram illustrates the cluster serial and Ethernet ports for Oracle ZFS
Storage ZS7-2, ZS5-4, ZS5-2, ZS4-4, ZS3-4, and Sun ZFS Storage 7x20 controllers.
Chapter 11
Controller Cluster I/O Ports
11-6
