For detailed information, see the following tasks:
• Creating a VNIC Without a VLAN ID for Clustered Controllers (BUI) in Oracle
ZFS Storage Appliance Administration Guide, Release OS8.8.x
• Creating VNICs with the Same VLAN ID for Clustered Controllers (BUI) in Oracle
ZFS Storage Appliance Administration Guide, Release OS8.8.x
c. Click APPLY.

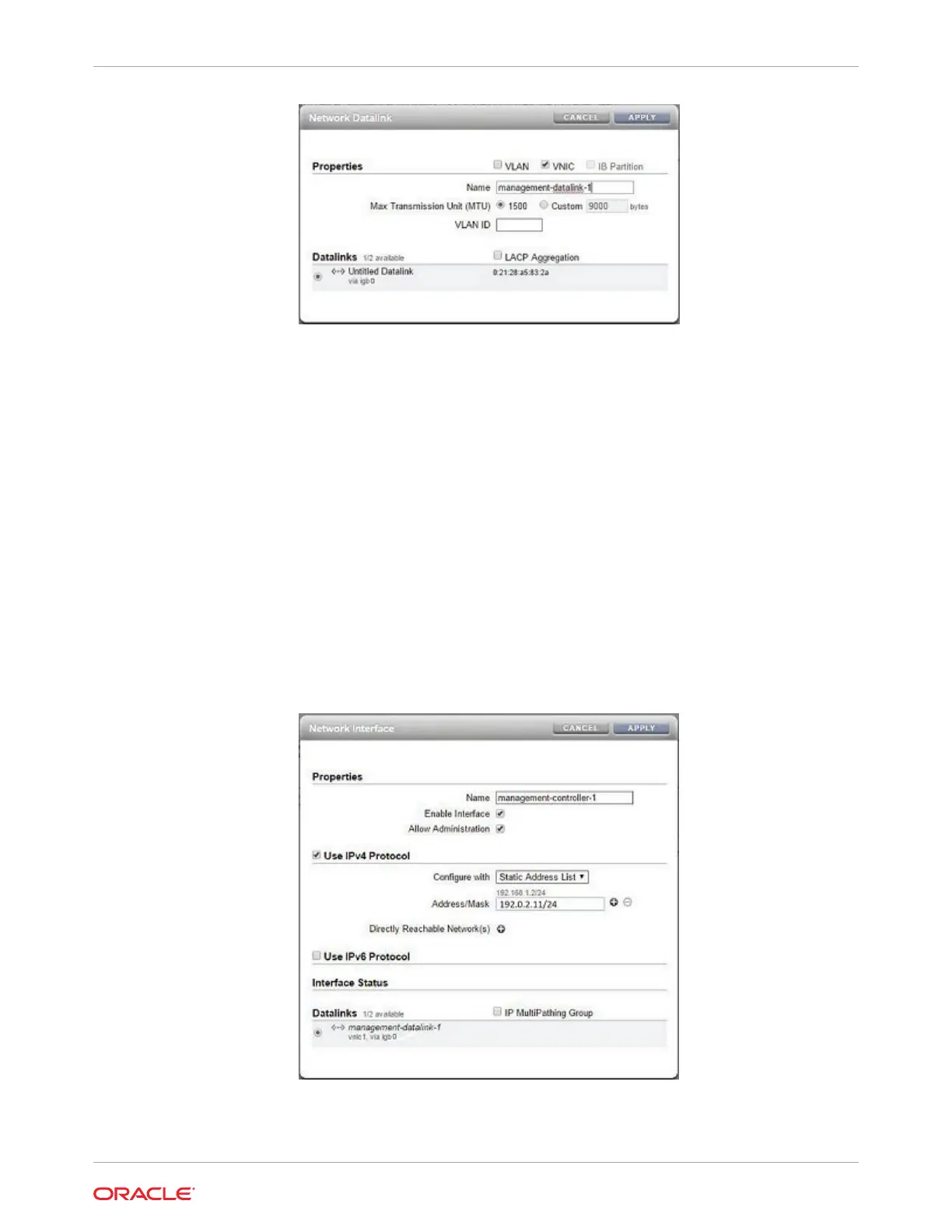

d. Drag the resulting datalink to the Interfaces column.
e. In the Network Interface dialog box, set the following minimum interface properties:
• Name - Type a name for the interface.
• Enable Interface - Select this check box to enable the interface.
• Allow Administration - Select this check box to make this a management
interface, which enables BUI connections on port 215, and CLI connections on
ssh
port 22.
• Use IPv4 Protocol or Use IPv6 Protocol - Select a protocol, its type of address,
and enter one or more IP addresses in CIDR notation.
f. Click APPLY.
Chapter 13
Performing Initial Configuration (BUI)
13-9
