How to Install a 7x20 onto the Rack Slide Rails
1.

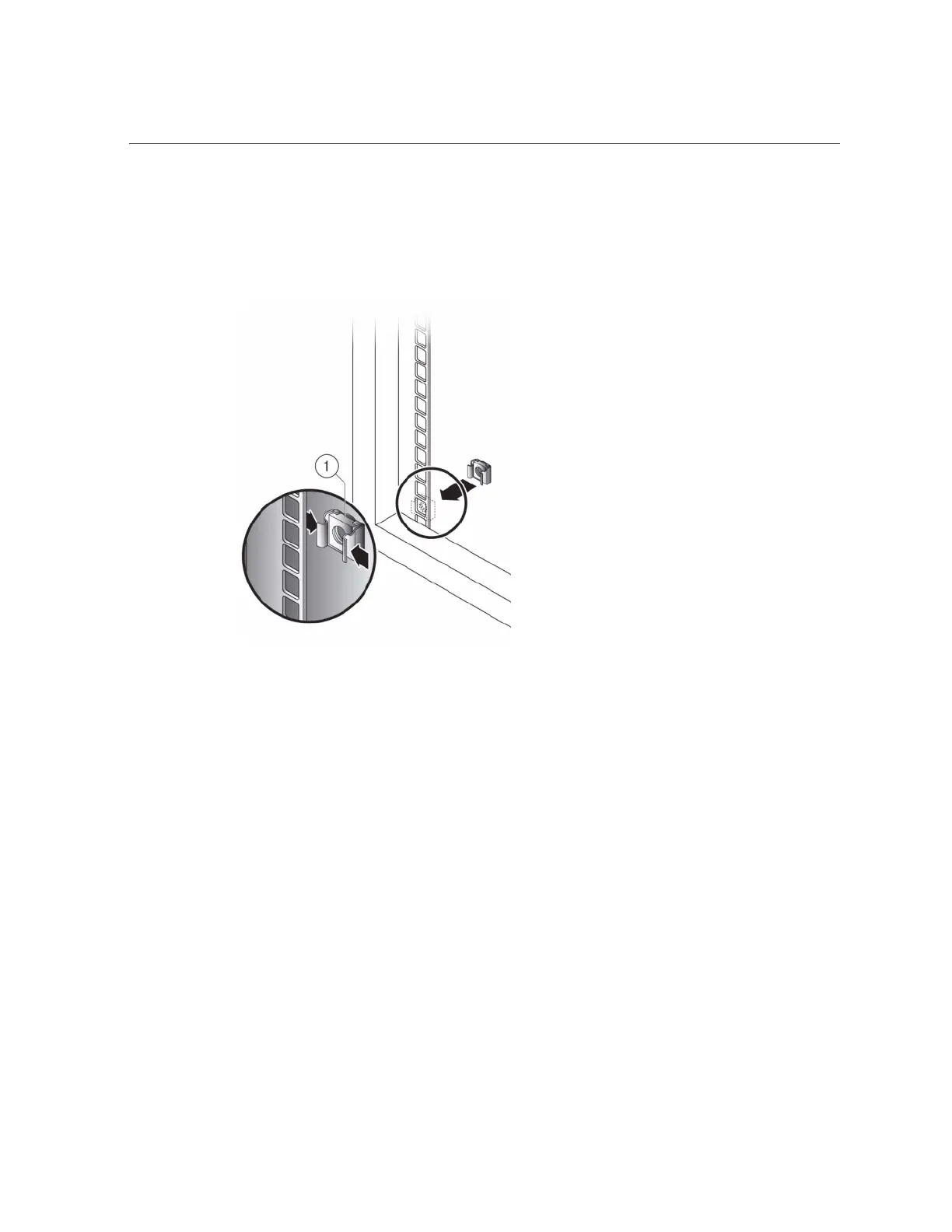

If you are using a universal 19-inch cabinet, snap an M6 square cage nut into the
top and bottom holes of the location where you will be installing the rail plate as
shown.
2.
Position a slide rail assembly in your rack so that the brackets at each end of the
slide rail assembly are on the outside of the front and back rack posts.
