Hardware Overviews
■

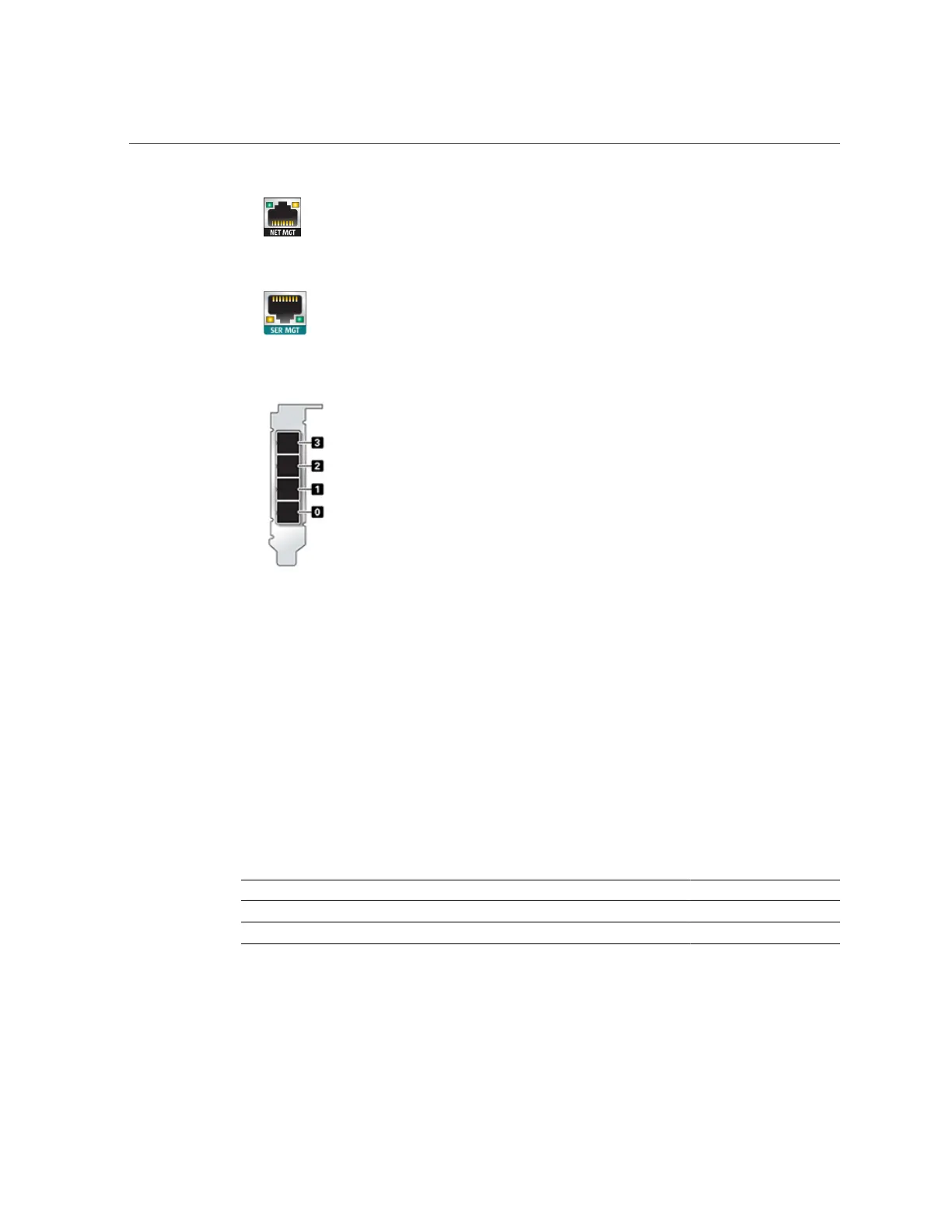

Serial Management Port - The serial management connector (SER MGT) is an RJ-45
connector and provides a terminal connection to the SP console.
■
HBA Ports - The 4x4 SAS-2 HBA, installed in the ZS3-4, provides connectivity to external
DE2 and Sun Disk Shelves. The HBA ports are numbered 3-0, top to bottom:
Overview of ZS3-2 Controller
This section provides an overview of the Oracle ZFS Storage ZS3-2 controller. For installation
instructions, refer to “Installing a ZS3-2 Controller” on page 81. For service instructions,
refer to the Oracle ZFS Storage Appliance Customer Service Manual.
ZS3-2 Physical Specifications
The ZS3-2 controller 2U chassis dimensions are as follows:
Dimension Measurement Dimension Measurement
Height 3.44 in./87.4 mm Depth 20.25 in./514 mm
Width 17.52 in./445 mm Weight 41.23 lb/18.70 kg
38 Oracle ZFS Storage Appliance Installation Guide • February 2016
