Hardware Overviews
■
HBA Ports - The 4x4 SAS-2 HBA provides connectivity to external DE2-24 disk shelves.

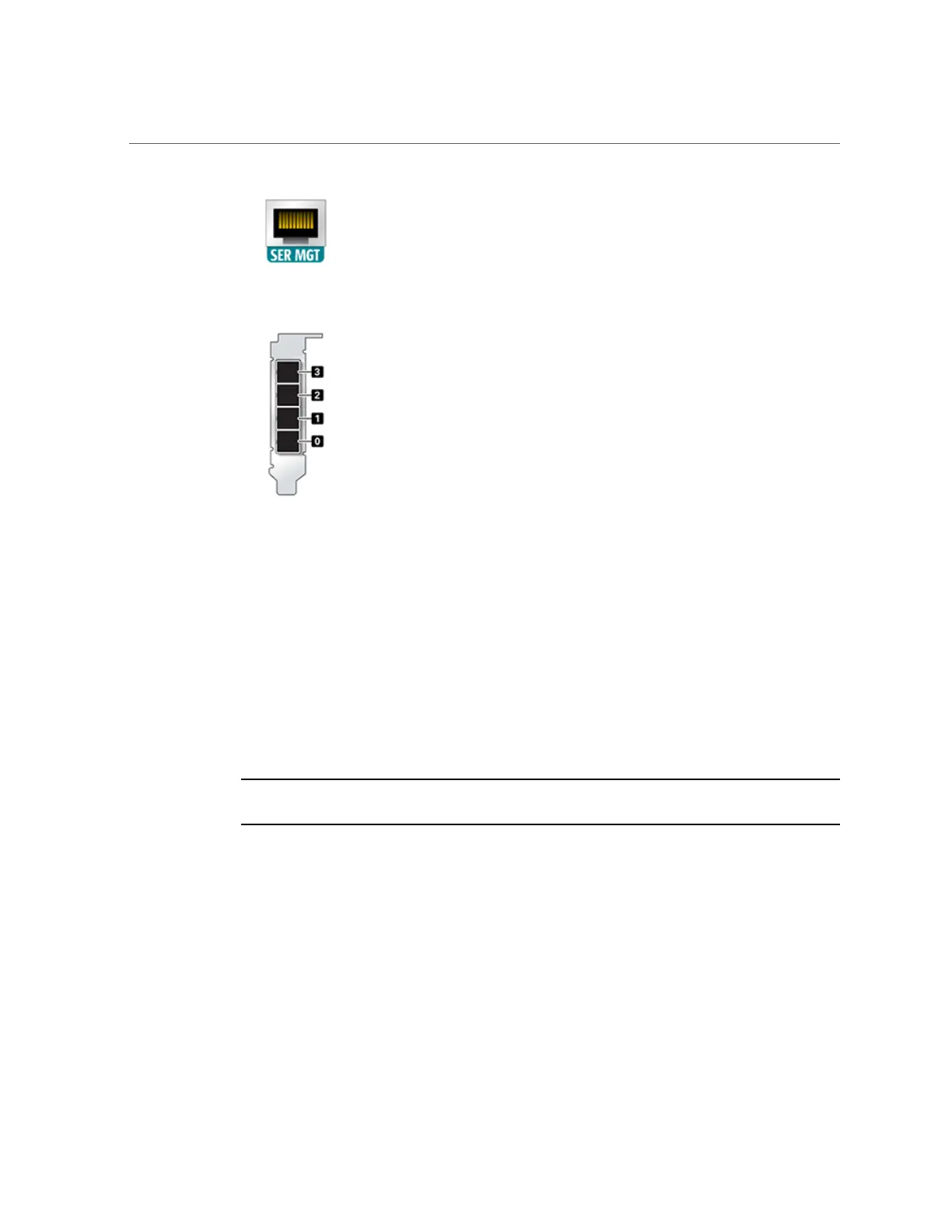

The HBA ports are numbered 0-3, bottom to top, as shown in the following figure.
Overview of ZS3-4 Controller
This section provides an overview of the Oracle ZFS Storage ZS3-4 controller. For installation
instructions, refer to “Installing a ZS4-4 or ZS3-4 Controller” on page 73. For service
instructions, refer to the Oracle ZFS Storage Appliance Customer Service Manual.
ZS3-4 Electrical Specifications
The following list shows the electrical specifications for the ZS3-4 controller.
Note - The power dissipation numbers listed are the maximum rated power numbers for the
power supply. The numbers are not a rating of the actual power consumption of the appliance.
Input
■
Nominal frequencies: 50/60Hz
■
AC operating range: 200-240 VAC
■
Maximum current AC RMS: 12A @ 200 VAC
Power Dissipation
■
Max power consumption: 1800 W
34 Oracle ZFS Storage Appliance Installation Guide • February 2016
