Hardware Overviews
■
Ethernet Ports - There are four RJ-45 Gigabit Ethernet ports (NET0, NET1, NET2, NET3)
located on the motherboard that operate at 10/100/1000 Mbit/sec. These network interfaces
must be configured before use.
■

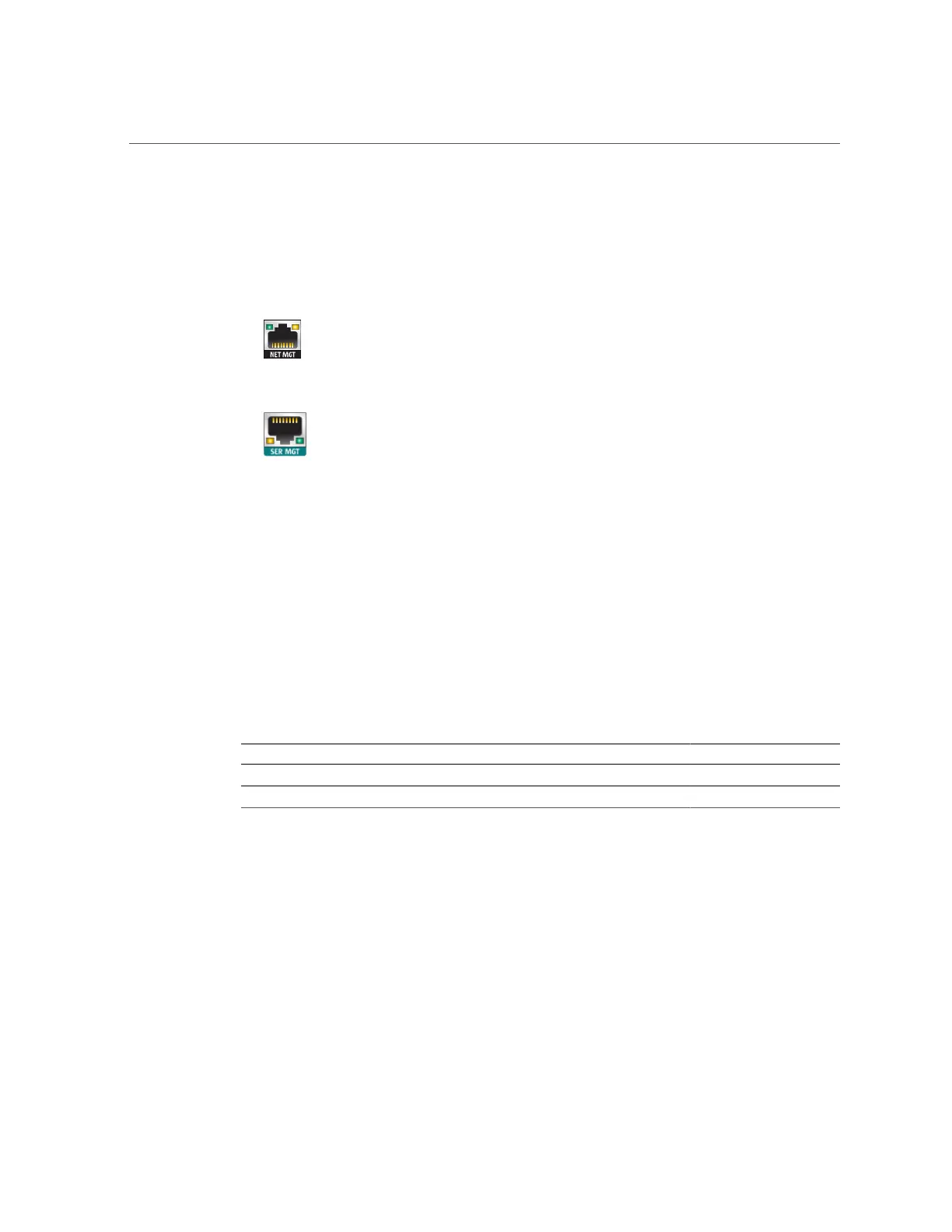

Network Management Port - The network management connector (NET MGT) is an RJ-
45 connector on the motherboard and provides an alternate terminal interface to the SP
console.
■
Serial Management Port - The serial management connector (SERIAL MGT) is an RJ-45
connector and is a terminal connection to the SP console.
Overview of 7120 Controller
This section provides an overview of the Oracle ZFS Storage 7120 controller. For installation
instructions, refer to “Installing a 7x20 Controller” on page 99. For service instructions,
refer to the Oracle ZFS Storage Appliance Customer Service Manual.
7120 Physical Specifications
The 7120 controller 2U chassis dimensions are as follows:
Dimension Measurement Dimension Measurement
Height 87.6 mm/3.45 in Depth 765.25 mm/30.13 in
Width 436.8 mm/17.2 in Weight 29.54 kg/65 lb
Refer to https://www.oracle.com/storage/nas/index.html for the most recent component
specification.
7120 Electrical Specifications
The following list shows the electrical specifications for the 7120. Note that the power
dissipation numbers listed are the maximum rated power numbers for the power supply. The
numbers are not a rating of the actual power consumption of the appliance.
52 Oracle ZFS Storage Appliance Installation Guide • February 2016
