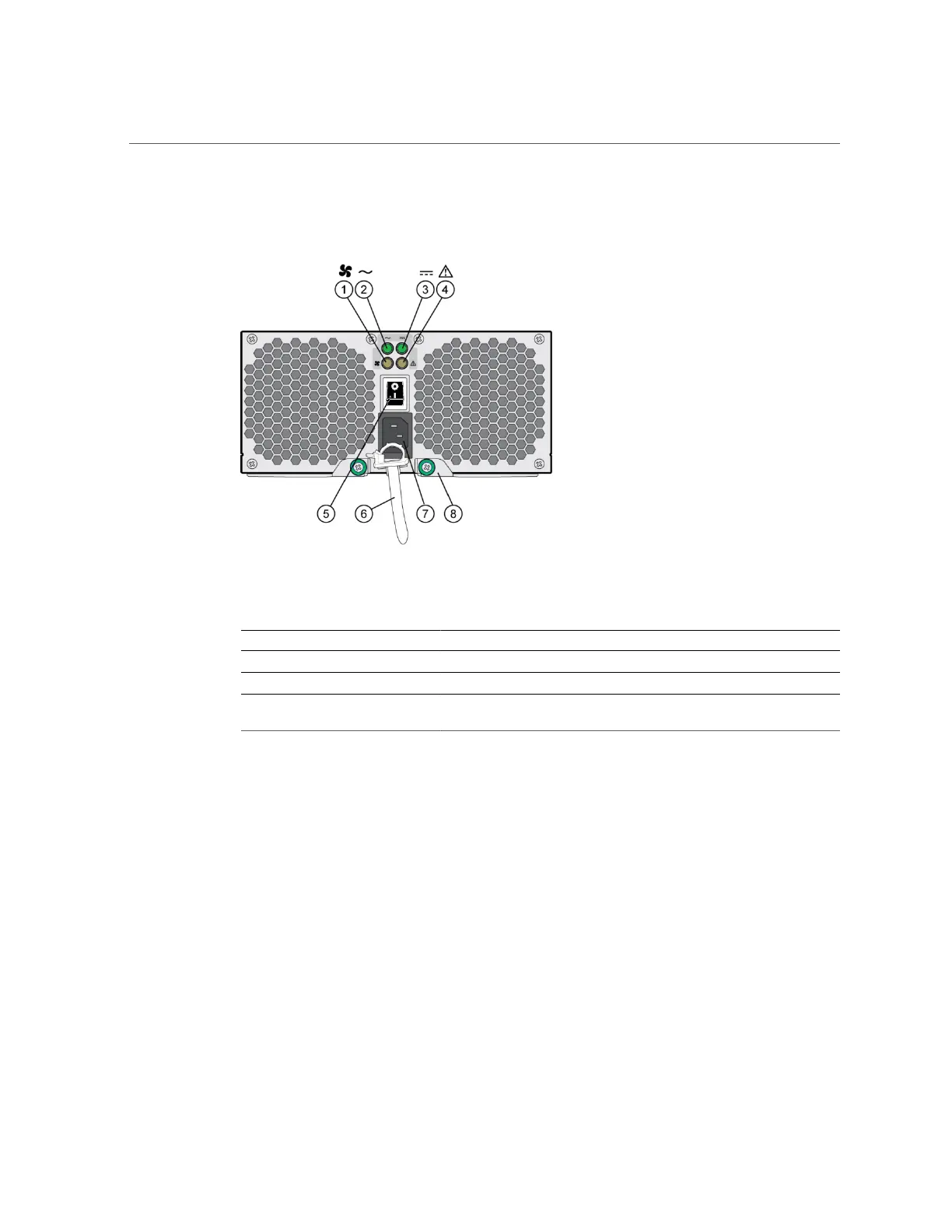

FIGURE 15
Sun Disk Shelf Power Supply and Fan Module Indicators
Figure Legend
1 Cooling fan status indicator 2 AC power status indicator 3 DC power status indicator
4 Power supply status indicator 5 Power on/off switch 6 Power cord tie wrap
7 Universal power input connector 8 Right ejection arm and captive
screw latch
Overview of ZS4-4 Controller
This section provides an overview of the Oracle ZFS Storage ZS4-4 controller. For installation
instructions, refer to “Installing a ZS4-4 or ZS3-4 Controller” on page 73. For service
instructions, refer to the Oracle ZFS Storage Appliance Customer Service Manual.
ZS4-4 Specifications
Refer to https://www.oracle.com/storage/nas/index.html for the most recent component
specification.
