How to Install a DE2-24P Disk Shelf
10.

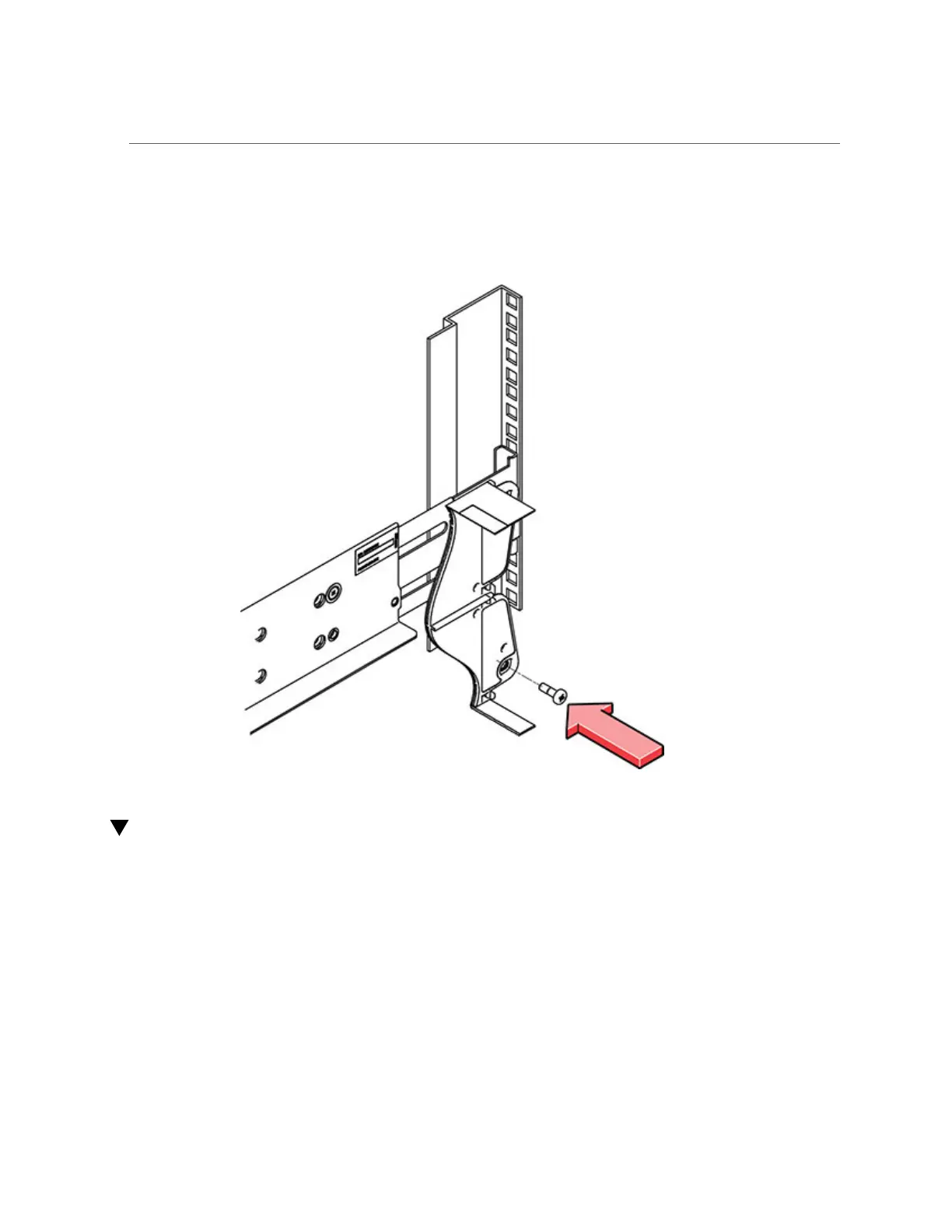

Install one long patchlock screw per rail to secure the rear of the shelf to the rear
of the rack.
How to Install a DE2-24P Disk Shelf
Use the following procedure to install an Oracle Storage Drive Enclosure DE2-24P.
The Oracle Storage Drive Enclosure DE2-24P requires two standard mounting units (2RU) of
vertical space in the cabinet. Starting at the bottom of the cabinet, locate the appropriate rack
unit (RU) height, which is six rack holes. Install disk shelves below controllers to prevent rack
from tipping.
62 Oracle ZFS Storage Appliance Installation Guide • February 2016
