Hardware Overviews

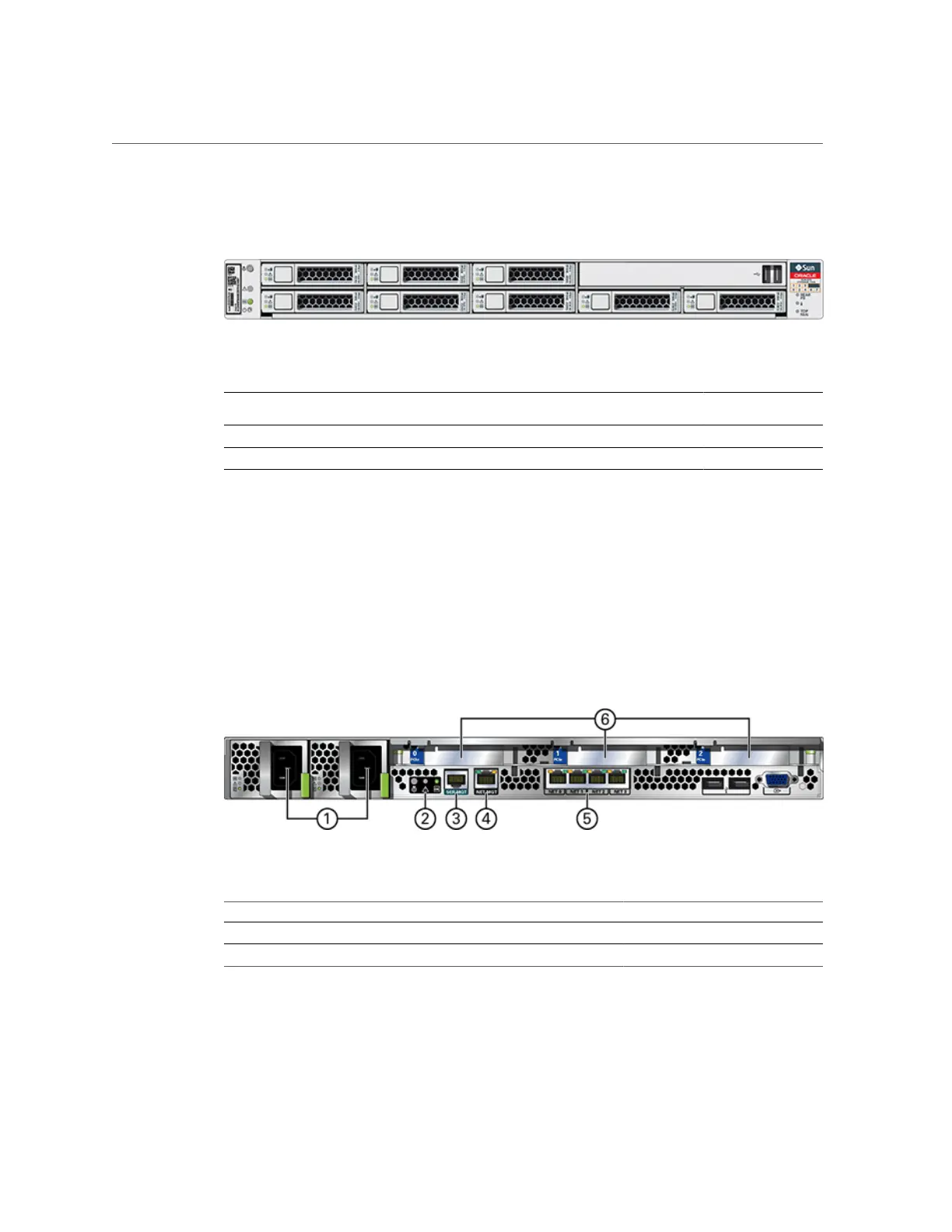

FIGURE 29
7320 Front Panel Drive Locations
Disk Drive
Locations
HDD1 HDD3 HDD5
HDD0 HDD2 HDD4 HDD6 HDD7
7320 Rear Panel Components
Following is an illustration of the 7320 storage controller rear panel. The Sun 375-3609 belongs
in slot 2, cannot be installed in any other slots, and a second is not offered as an option.
For information about PCIe cards, see “7320 PCIe Cards and Risers” in Oracle ZFS Storage
Appliance Customer Service Manual.
FIGURE 30
7320 Controller Rear Panel
Figure Legend
1 Power supplies 2 SC summary status LEDs 3 Serial management port
4 Network management port 5 Ethernet ports 6 PCIe slots
The 7320 controller has the following ports:
Installation Prerequisites and Hardware Overviews 51
