Hardware Overviews
Connectors
■
Two C13 connectors, which work on 110-220v outlets
Input
■
Nominal frequencies: 50/60Hz
■
Nominal voltage range: 100-120/200-240 VAC
■
Maximum current AC RMS: 13.8A @ 100 VAC
■
AC operating range: 90-264 VAC
Output
■
3.3 VDC STBY: 3.0A
■
+12 VDC: 86.7A
Power dissipation
■
Max power consumption: 1235.3 W
■
Max heat output: 4212 BTU/hr
■
Volt-Ampere rating: 1261 VA @ 240 VAC, 0.98P.F.

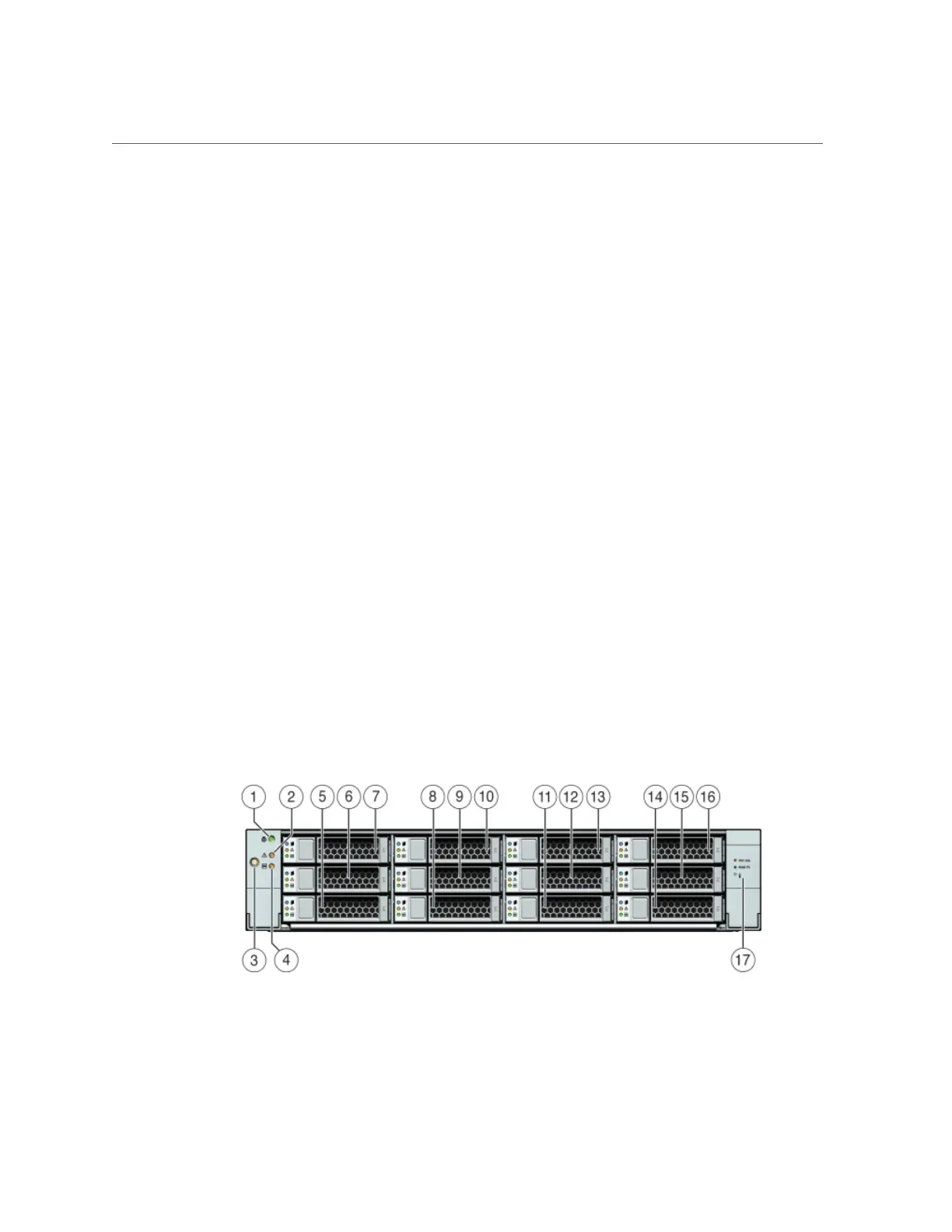

7120 Front Panel Components
The following figure and legend show the front panel and the drive locations. The Logzilla 3.5"
SSD belongs in slot 3 and is not supported in controllers configured with the internal Sun Aura
flash HBA Logzilla.
FIGURE 31
7120 Controller Front Panel
Installation Prerequisites and Hardware Overviews 53
