Hardware Overviews
Figure Legend
1 Locator LED/button
(white)
2 Service Action Required
LED (amber)
3 Power button 4 Power/OK LED (green)
5 HDD 0 6 HDD 1 7 HDD 2 8 HDD or SSD 3
9 HDD 4 10 HDD 5 11 HDD 6 12 HDD 7
13 HDD 8 14 HDD 9 15 HDD 10 16 HDD 11
17 Drive map
7120 Rear Panel Components
The following figure and legend show the rear panel.
Note - Optional Sun Dual Port 40Gb/sec 4x Infiniband QDR HCAdapter PCIe cards (375-3606-
01) may be located in slots 1, 2, or 3. 375-3606-01 HCA expansion cards are not supported
in the 10Gb network configurations. For more information about PCIe cards, see “7120 PCIe
Options” in Oracle ZFS Storage Appliance Customer Service Manual.

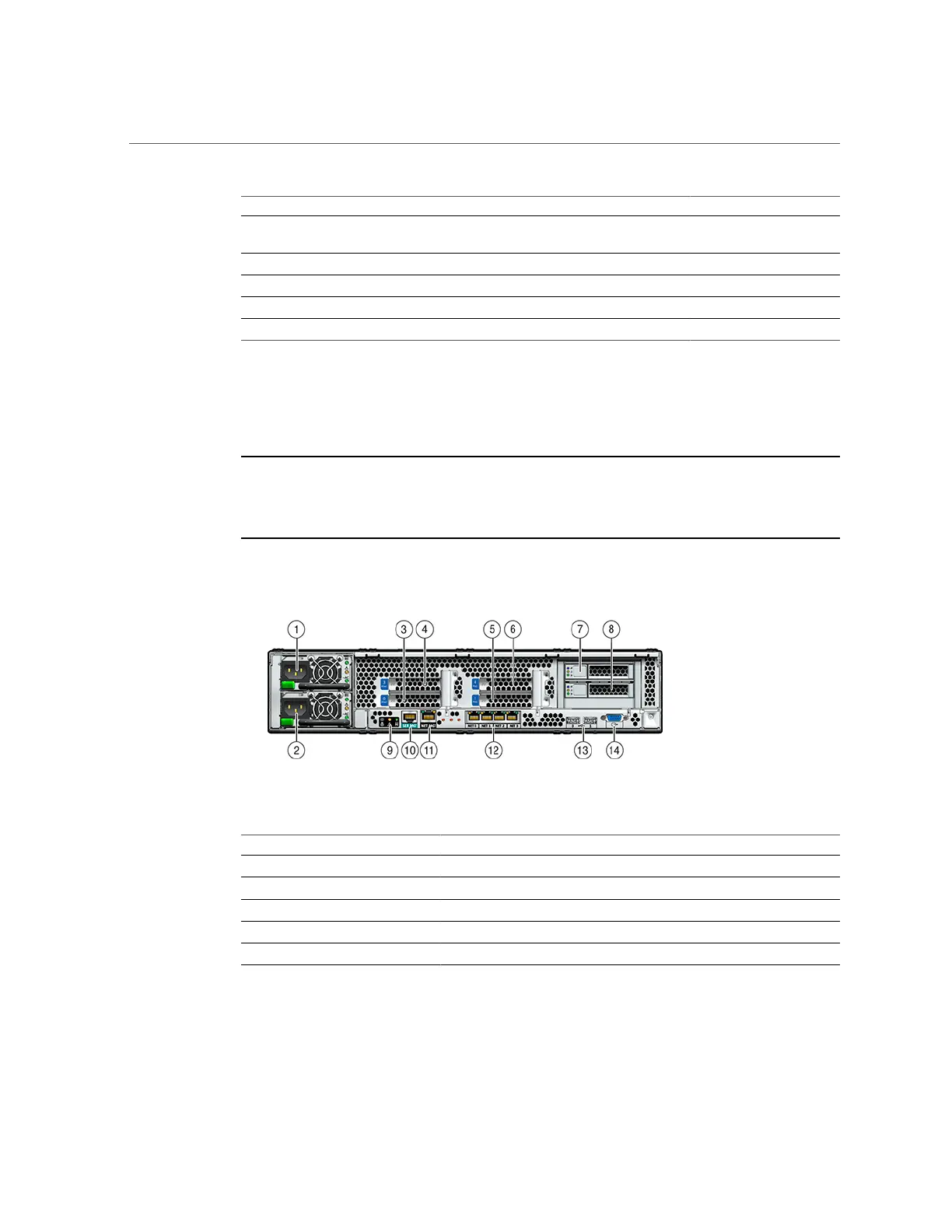

FIGURE 32
7120 Controller Rear Panel
Figure Legend
1 Power Supply Unit 1 2 Power Supply Unit 0 3 PCIe 0
4 PCIe 3 5 PCIe 1 6 PCIe 4
7 Boot HDD 1 8 Boot HDD 0 9 Rear Panel System Status LEDs
10 Serial Management port 11 Network Management port 12 Gbit Ethernet ports NET 0, 1, 2, 3
13 USB 2.0 ports (0, 1) 14 HD15 Video port
The 7120 controller has the following ports:
54 Oracle ZFS Storage Appliance Installation Guide • February 2016
