How to Install a Sun Disk Shelf
Starting at the bottom of the cabinet, locate the appropriate rack unit (RU) height. Install Disk
Shelves below controllers to prevent rack from tipping. The Sun Disk Shelf requires four
standard mounting units (4RU) of vertical space in the cabinet.
Caution - This procedure requires a minimum of two people, or a mechanical lift, because of
the weight of the chassis. Attempting this procedure alone could result in equipment damage or
personal injury. Always load the heaviest equipment (disk shelves) at the bottom of the rack.
Before You Begin
Extend all anti-tilt and stabilization devices from the bottom of the rack.
1.

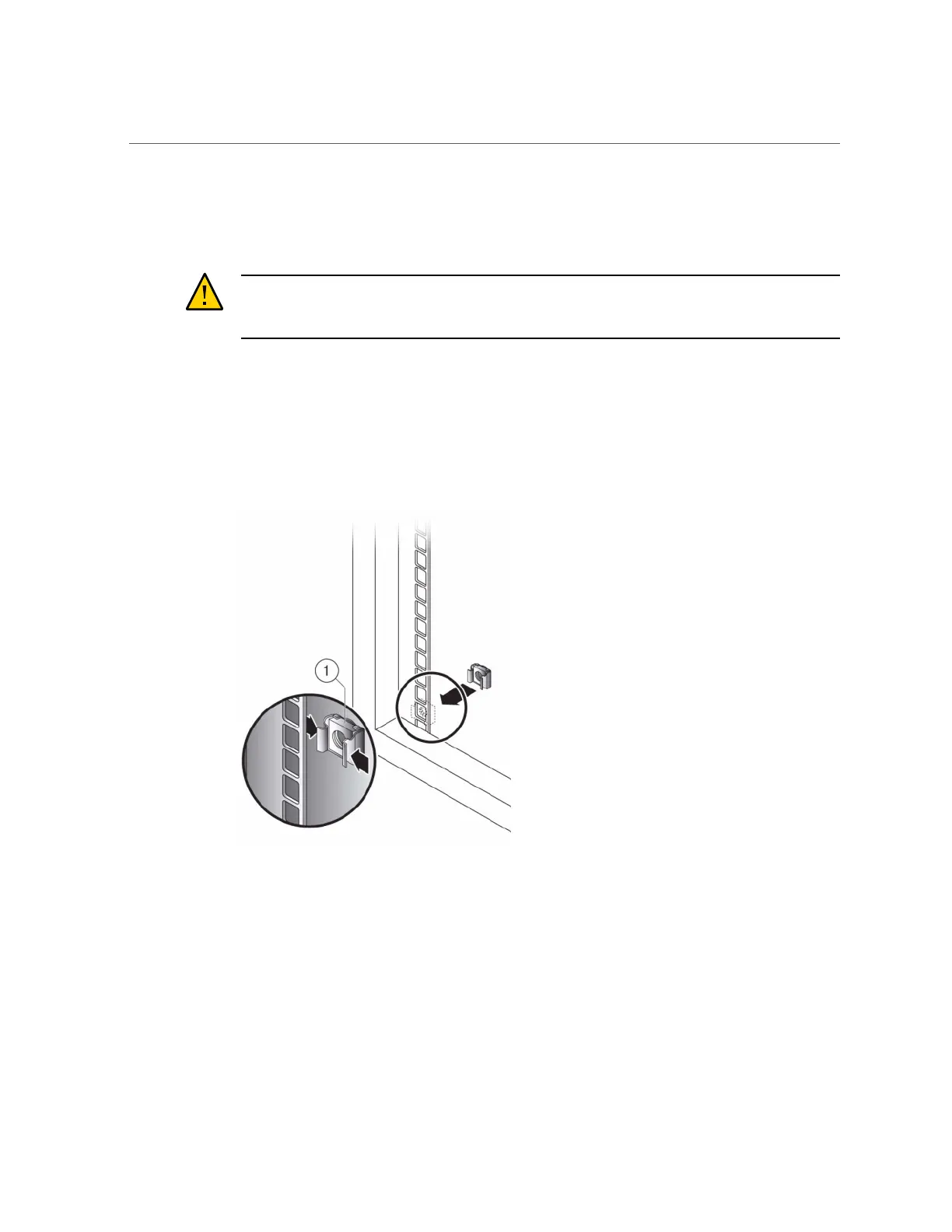

If you are using a universal 19-inch or Sun Rack II cabinet, snap an M6 square
cage nut into the 4U location where you will be installing the system. Install in
the top and bottom holes.
2.
Install appropriate rail plates in four locations on the rack (2 front and 2 back) by
aligning the two pins on the rail plate with holes on the cabinet rails.
68 Oracle ZFS Storage Appliance Installation Guide • February 2016
