Osprey Talon User Guide
20
Operating Mode

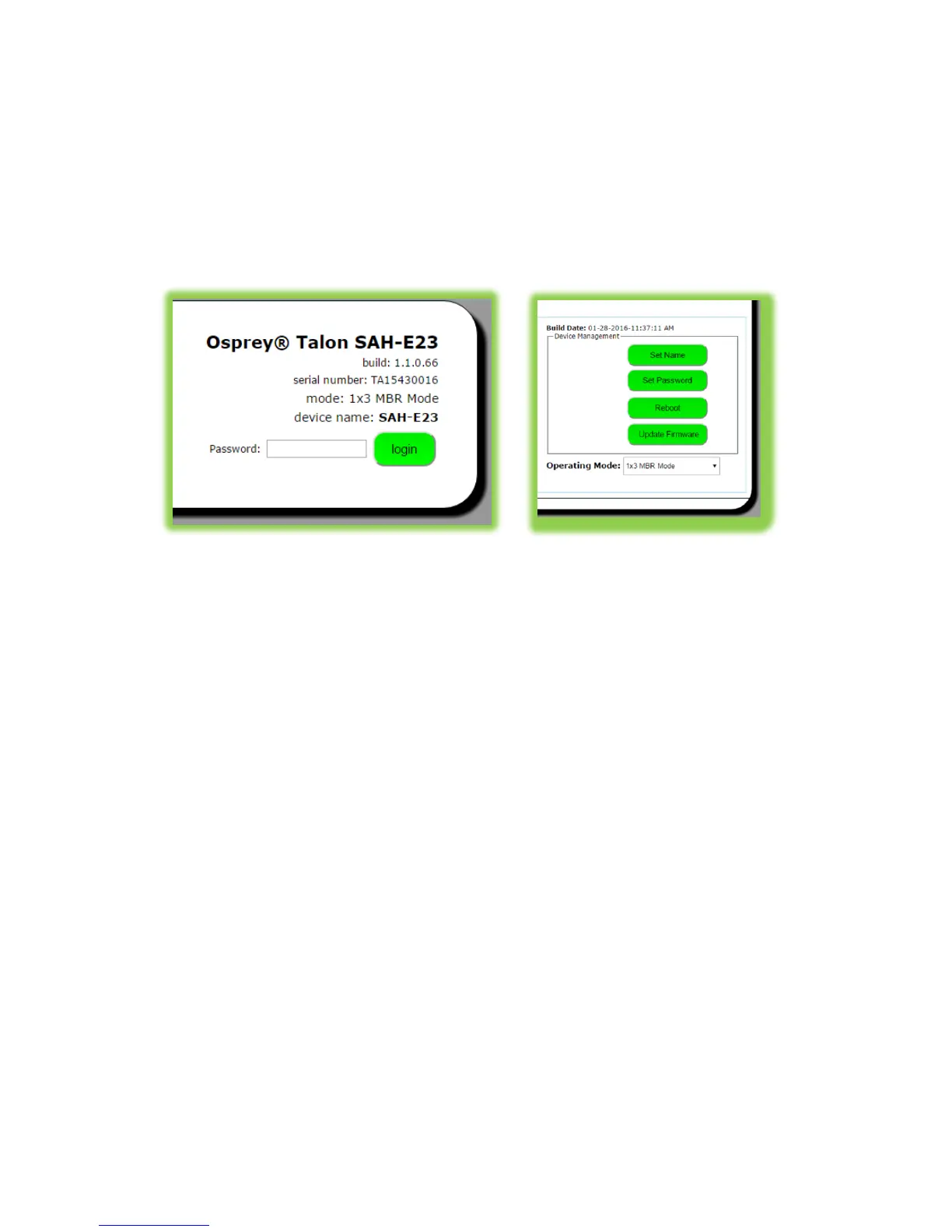

Talon has two operating modes. The current operating mode is indicated in the upper right corner of the
webpage along with the serial number and device name. The mode can be changed from the menu just
below the Device Management box on the System Control tab.
1x3 MBR Mode
As the name suggests, MBR mode allows the user to select one of the available inputs and then create
three output streams. This is useful for Multiple Bit Rate streaming or for streaming one input to several
server locations at the same time. Users can create three streams to a single RTMP server, or stream
RTMP and UDP at the same time while saving to file.
2X2 LC Mode
This mode is designed for Lecture Capture and similar uses. Users may select 1 SDI input and 1 of either
HDMI or Composite and stream each separately. This is useful for streaming classroom situations where
you need to stream a camera and an additional input such as a scan converter or a laptop output for
Lecture Capture.
Changing Operating Modes
On first startup Talon will use 1x3 MBR mode. If you need to change modes, select the desired mode
from the dialog at the bottom of the page. Talon will reset itself into the desired mode.
NOTE: When changing from one mode to another Talon will not retain stream settings from the
previous mode.
