Operation

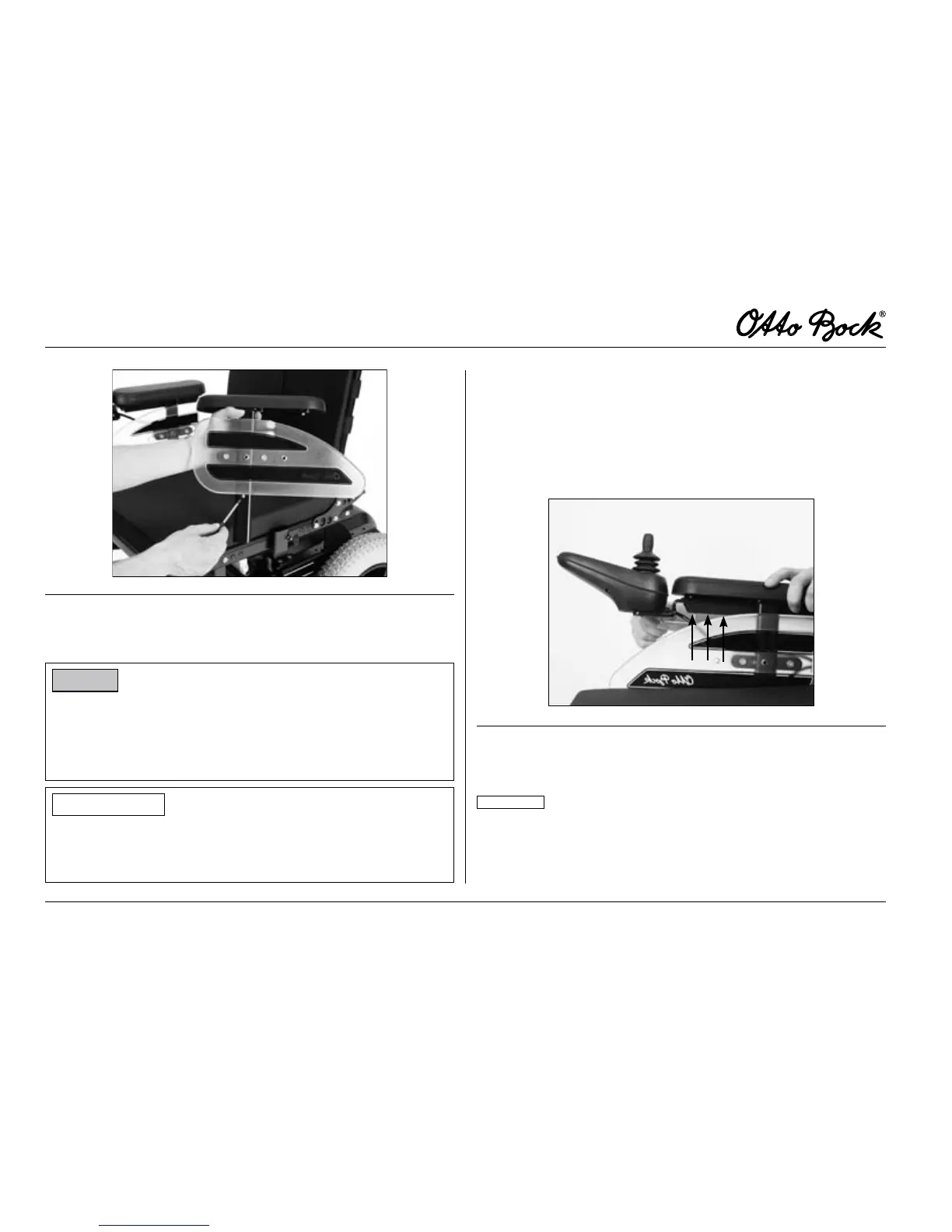

Fig.8 Adjustingtheheightofthearmrest
6.1.3 ControlPanel
NOTICE
Cabledamage.Positioning the cable incorrectly can lead
to pinching and thus damage to the cable. The cable must
not be attached too tightly or too loosely. Avoid bending or
squeezing the cable.
INFORMATION
Later changing of the control panel's mounting position
from the left to the right side or vice versa may only be
carried out by specialist dealers.
AdaptingtheControlPaneltoArmLength
To adapt the control panel to the arm length of the user, you
must loosen the three screws on the underside of the arm-
rest using a 3 mm Allen wrench (see g. 9). You can now
slide the control panel backwards and forwards.
Fig.9 Adaptingthecontrolpanel
Firmly re-tighten the screws after making adjustments.
INFORMATION
If the control panel rail is too long, the protruding
part can simply be cut off with a saw.
