Operation
To change the lamp of the front direction indicator, proceed
as follows:
n Open the front direction indicator: Insert a small screw-
driver into the recess of the direction indicator housing
and ip down the pane of the direction indicator (see g.
21, item 2).
n Remove the pane.
n Slightly rotate the lamp to release it from the lock on the
lamp socket and pull it out (see g. 22).

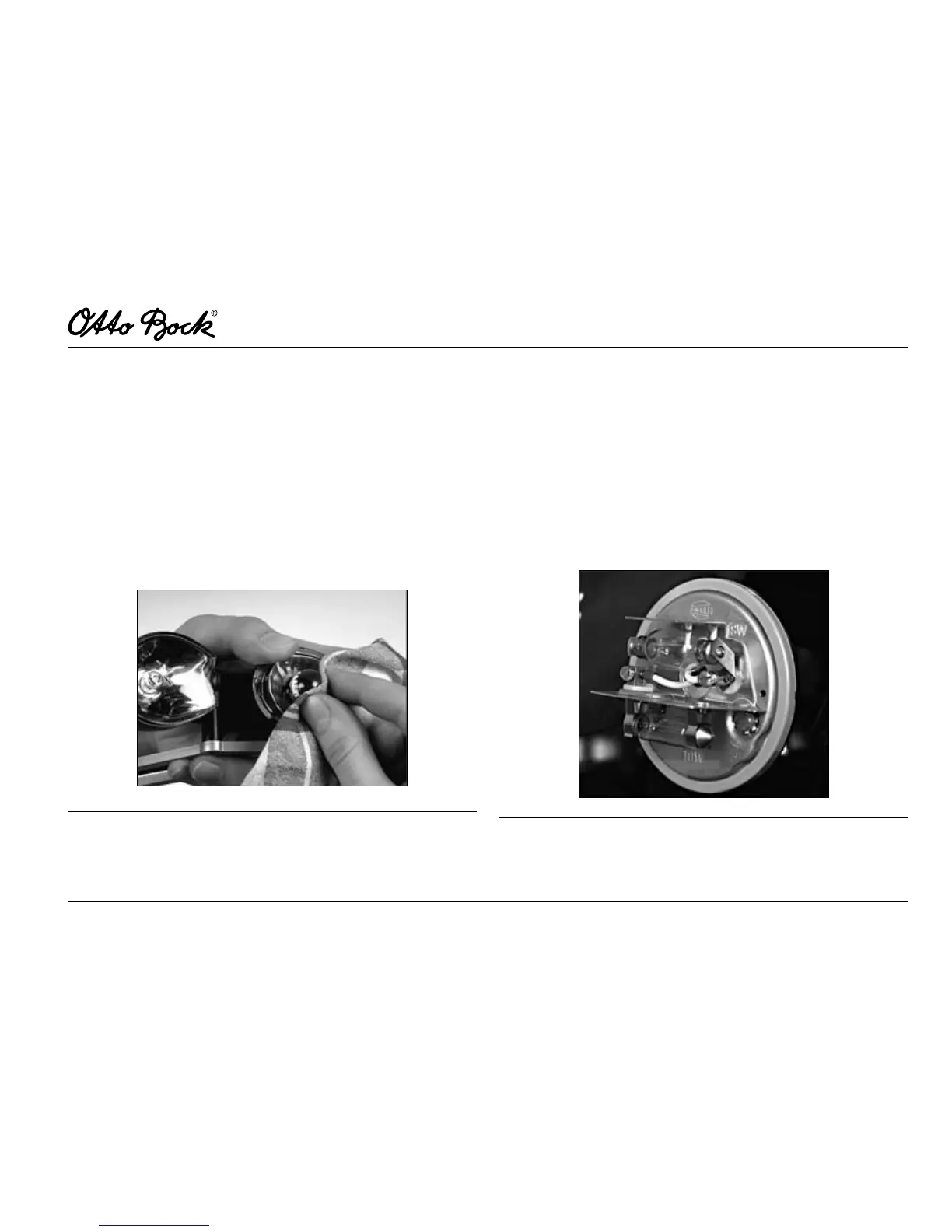

Fig.22 Replacingthedirectionindicatorlamp
To change the rear direction indicators and the rear light,
proceed as follows (see g. 23):
n Unscrew the pane.
n The rear lamps are attached on the right and left side on
sprung-mountings. Exert slight pressure to the right and
pull the lamp forward on the left side.
n To protect the front lamps against damage, they are pro-
vided with rubber bearings.
Fig.23 Rearlightwithoutlampcover
