Operation
6.1.4 Footrest
CAUTION
Riskofgettingpinched.Make sure your fingers are not in
the danger area when flipping the footplates up or down.
Complete removal of the footrest is permitted only for
transportation of the wheelchair.
Dismantling
1. Remove the calf band.
2. Flip the footplate up, release the footrest lock (see
fig. 10) and swing the footrest either to the inside or out-
side.
3. Pull the footrest up to remove it.
Reassembly
1. Reinsert the footrest from above by placing it in the hold-
ing device and swinging it forward until the footrest lock
engages.
2. Reattach the calf band to the holding device.

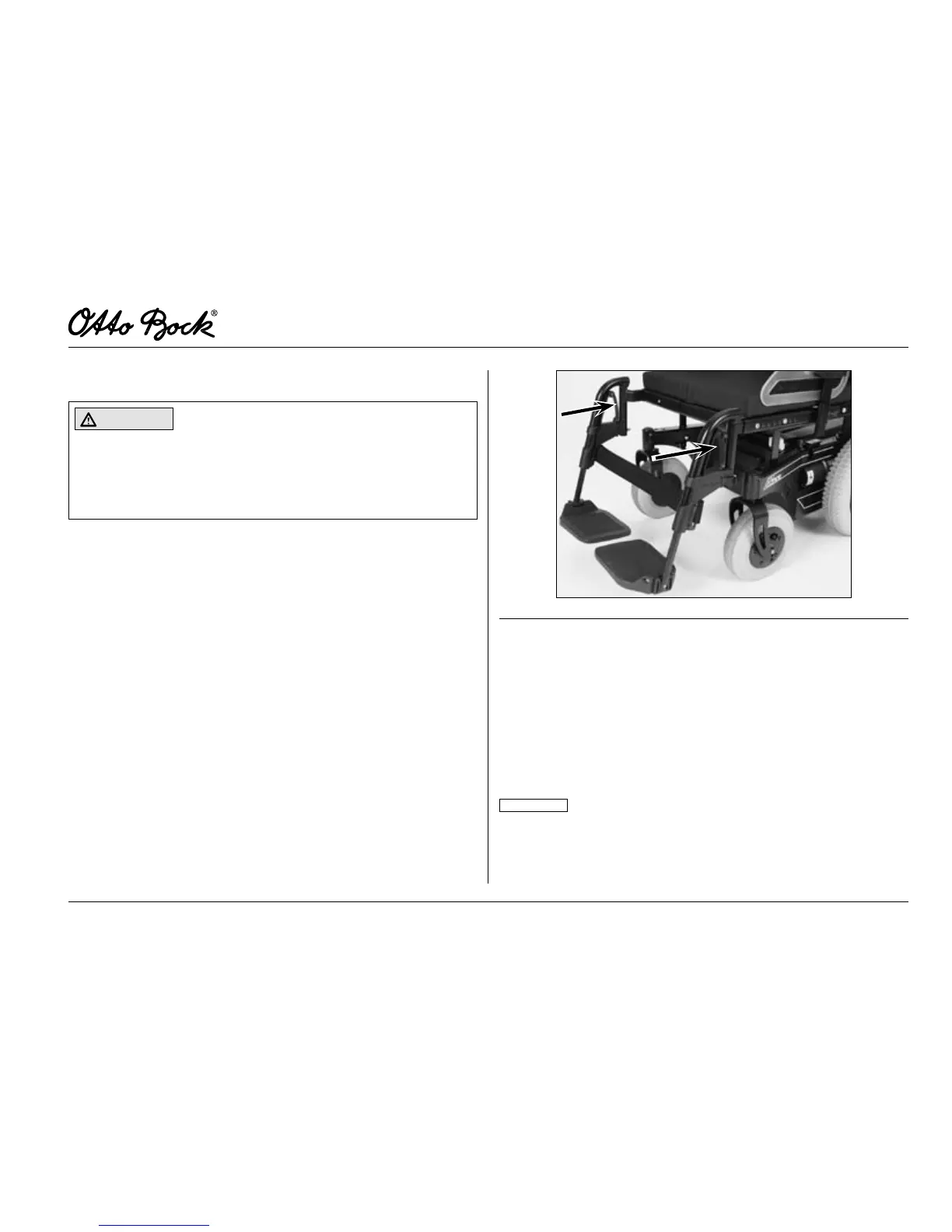

Fig.10 Footrestlock
AdjustingtheLowerLegLength(seefig.11)
1. Loosen the screws on the footrest bar.
2. Move the footplate up or down to adapt the height to the
individual lower leg length and seat cushion thickness.
3. Retighten the screws.
INFORMATION
The footrest bar must not be pulled out of the
holding device by more than 160 mm.
