OUMAN H23 User Manual

11

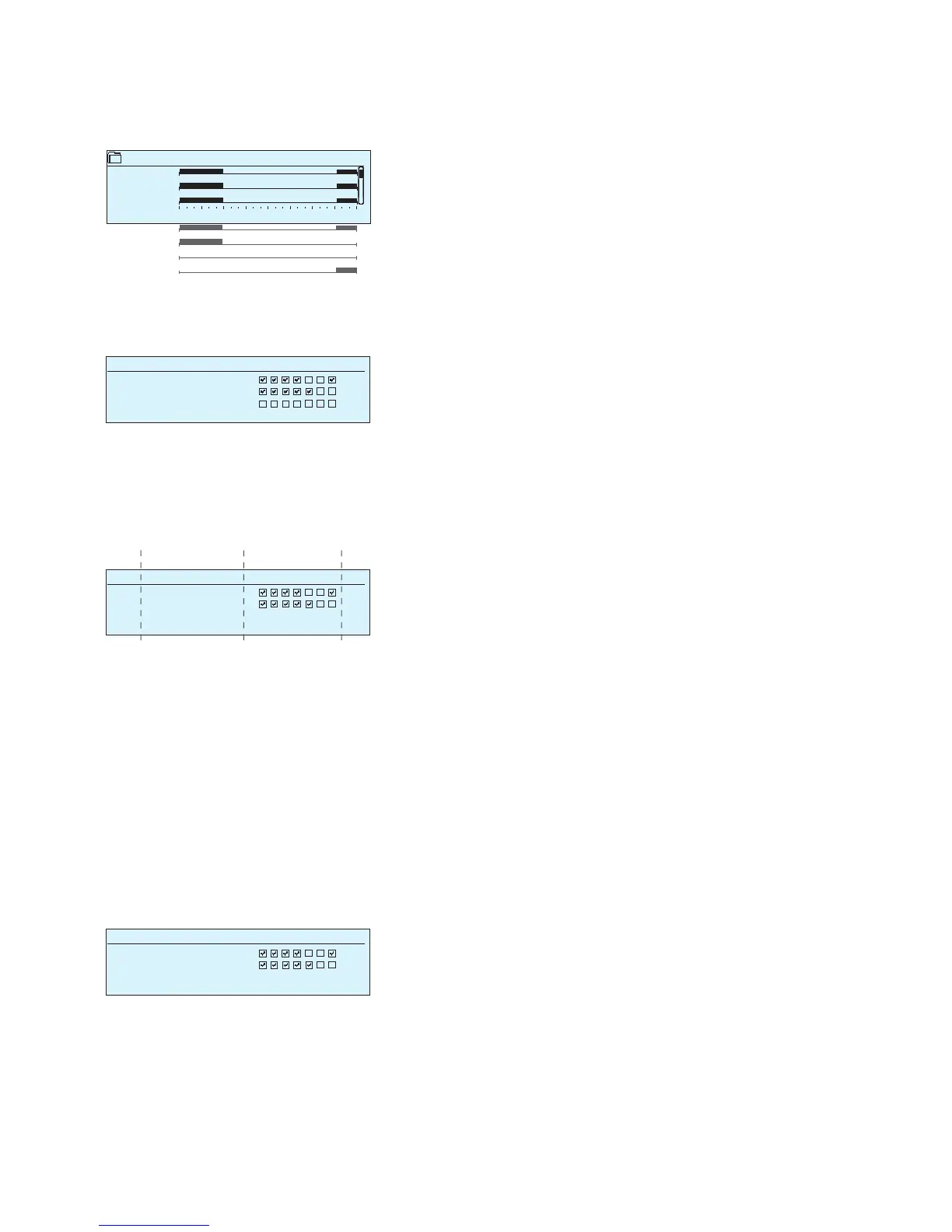

Weekly programmes have a standard graph view as well as a
change view showing the exact time when the new mode command
will be executed. In the graph view, exceptions to normal tempera-
ture reductions are shown as bars.
Graph view
Editing view
Time Mode
Time Mode
Time Mode
21:00 Drop On
06:00 Drop Off
00:00 Add new
21:00 Drop On
06:00 Delete switch time
00:00 Add new
21:00 Drop On
06:00 Drop Off
M
M
M
T
T
T
W
W
W
T
T
T
S
S
S
F
F
F
S
S
S
Browsing a weekly schedule:
Turn the control knob to browse a weekly schedule. If you wish to see
the exact switch times or you wish to change, delete or add switch
times, press OK at any weekday.
Temp. drop Weekly schedule
Monday
Tuesday
Wednesda
Thursday
Friday
Saturday
Sunday
0 3 6 9 12 15 18 21 24
In this example, you can see a weekly
temperature drop program. Temperature
drop is on from 9 pm to 6 am from Monday
to Friday.
3.3.1.1 Weekly schedule
H1 (H2) Control circuit → H1 (H2) Setting values → Temperature drop → Temp. drop Weekly schedule
Editing view
Deleting a switch time:
1. Turn the control knob to move to the switch time you wish to
delete and press OK.
2. Press OK at temperature mode and select ”Delete switch time”.
3. Press OK at the end of the row.
Set switch time
Set state
(=desired
temp. level)
Select
day(s)
Accept
Adding a new temperature drop period:
1. Press OK at the “Add new” row.
2. Set the time, when the temperature drop is activated (set hours and
minutes separately). Press OK to accept.
3. Press OK and then turn the control knob to select “Drop On”. Press
OK to accept.
4. Press OK at each weekday you wish to choose.
5. Press OK at the end of the row to accept the new time program.
6. Press OK at the “Add new” row.
7. Set the time, when the temperature drop goes o (set hours and
minutes separately). Press OK to accept.
8. Press OK and then turn the control knob to select “Drop O”. Press
OK to accept.
9. Press OK at each weekday you wish to choose.
10. Press OK at the end of the row to accept the new time program.
11. Press Esc to exit.
Editing a weekly schedule:
1. Turn the control knob to move to the value you wish to change
and press OK.
2. Turn the control knob to make the time and temperature drop
mode changes. Press OK to accept.
3. Press the OK button to change the day of the week.
4. Press Esc to exit.
OK
OK
