OUMAN H23 User Manual

Trendiloki 28.04 08:26:19 [ 34.7 °C ] ( 4 h )
38
28
Trend log 28.01 08:26:19 [ 34.7 °C ] ( 20 h )
38
28
A dierent sampling interval can be set for dierent measurements.
You can browse the trend log by turning the control knob.
The value in the brackets indi-
cates, how long trend period is
shown in the controller display
at the time. (for example 20 h).
When you press OK in the trend
log display, you can zoom in (44
min) or zoom out (5 hours) the
trend view.
The logged value from the time indicat-
ed bythe cursor (hairline) is shown in the
square brackets.
Hair line
17

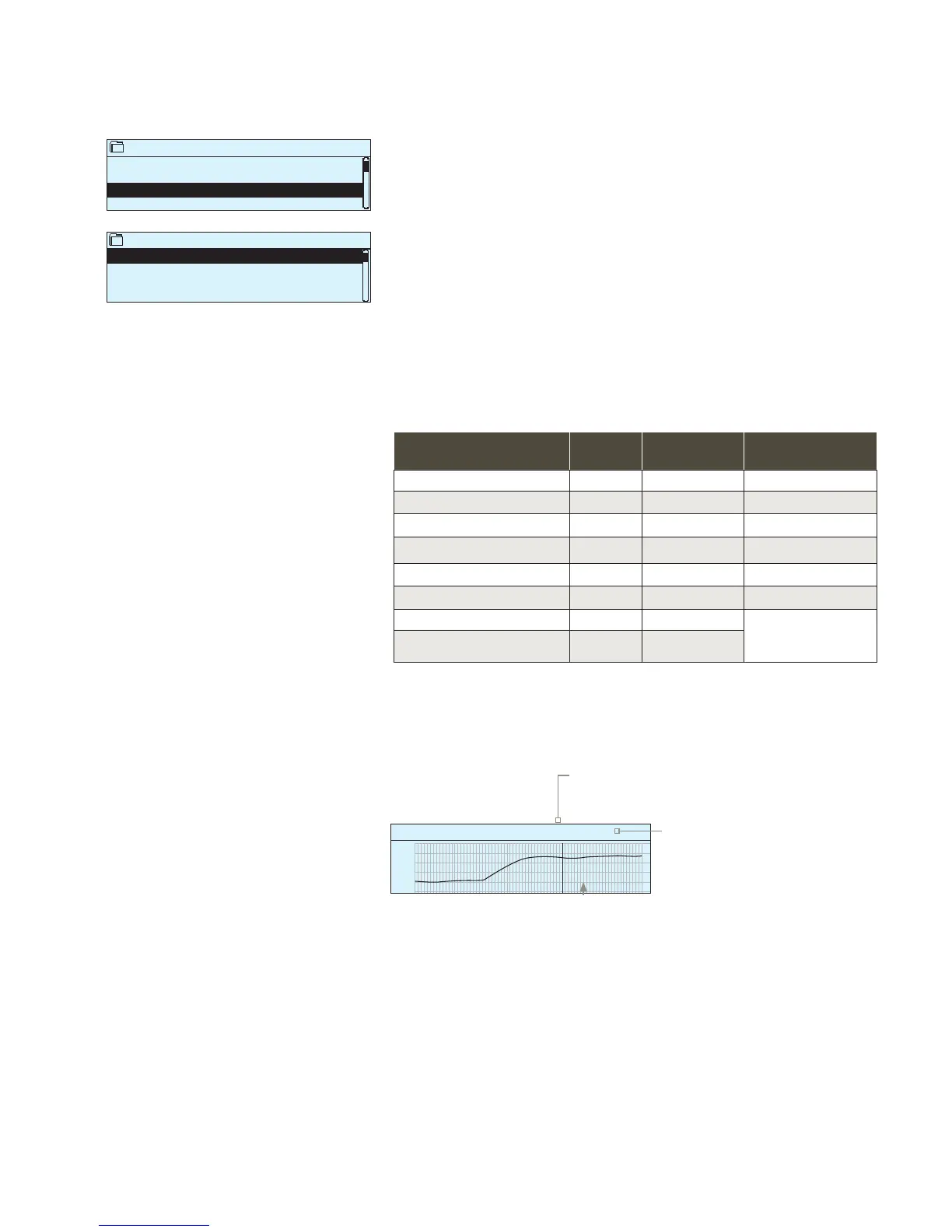

H23 controller automatically logs trend from the measurements.
Select the measurement which log you want to view. The trend log
will be shown in the controller’s display. It’s also possible to change
the logging interval.
5 TREND LOGS
Trend logs
Main menu
H2 Control circuit
DHW Control circuit
Trend logs
Alarms
>
>
>
>
Trend logs
Outdoor temperature >
H1 Supply water >
H1 Return water >
H1 Room temperature >
H2 Supply water >
H2 Return water >
H2 Room temperatu >
DHW Supply water >
DHW Circulation water >
H1 Actuator control >
H2 Actuator control >
DHW Actuator control >
Measurement Factory
setting
Range Attention!
Outdoor temperature 600 s 10 ... 600 s
H1/H2 Supply water 60 s 10 ... 600 s
H1/ H2 Return water 60 s 10 ... 600 s
H1/ H2 Room temp. 10 s 10 ... 600 s
DHW Supply water 10 s 10 ... 600 s
DHW Circulation water 60 s 10 ... 600 s
H2 Actuator control
60 s
10 ... 600 s The trend is available
only with the voltage
controlled actuators.
DHW Actuator control 10 s 10 ... 600 s
