28
Press the small black SIM card release button with, for example, a pen tip. Part
of the SIM card slot will stick out of the modem. Pull the slot out of the modem.
Do not pull the slot out of the modem without pressing the SIM card release
button first!
Insert SIM card into the slot and make sure it settles properly. Push the slot
back to its place. Set the SIM card PIN code as H23 device PIN code. Make sure
PIN inquiry is in use in the SIM card.
Inserting the SIM card
SIM card slot
SIM card release button
Antenna
mounting
point

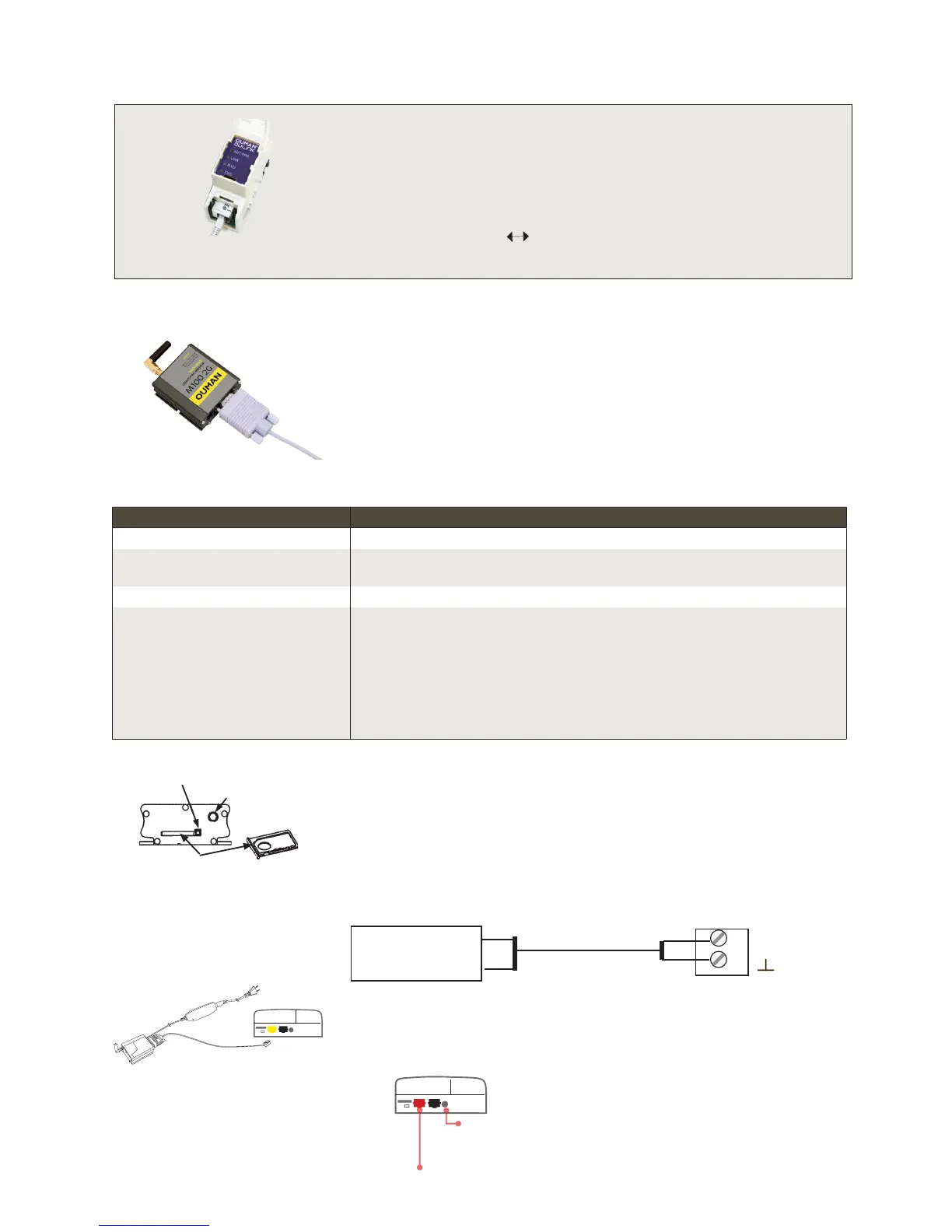

OPTIONAL EQUIPMENTS
Modbus TCP/IP interface to H23 device.
• Integrated Ouman Access-connection
• Modbus TCP/IP
• Modbus TCP/IP RTU Gateway
• SNMP alarm transfer
OULINK ETH
GSMMOD5
Adapter for H23 for networking. If Oulink ETH adapter is taken in use in
H23, it’s not possible to use GSM-mode simultaneously.
By connecting the modem to the H23 regulator, you can communicate with the
regulator text messages and pass this information on alarms to your mobile via
SMS.
If Oulink ETH adapter is taken in use in H23, it’s not possible to use GSM-mode
simultaneously.
The modem has a fixed antenna that can be changed to an external antenna
with a 2,5m cord (optional equipment) if needed. The modem’s indicator light
shows what mode it is in.
2x0,8
15 VDC OUT
H23
-
+
4
1
Bl
Red
H23
Oulink-connector or GSMMOD5-
connector
Outdoor temperature measu-
rement plug connection (M1)
GSMMOD5
OUMAN
GSMMOD5
H23
Communication port I.
Operating voltage for the GSM-modem can be taken from the external
power supply or from H23 (15VDC output, connectors 1 and 4). The GSM-
modem is connected to H23’s communication port I.
LED indicator light Modem mode/instructions
LED is not lit: Modem is not on. Connect network device to modem.
LED is lit: Modem is on, but it is not ready for use. Make sure that H3 and GSM modem
SIM card have the same PIN code, if PIN inquiry is in use.
LED is blinking slowly: Modem is ready for use.
LED is blinking rapidly: Modem is either sending or receiving a message. If you do not receive an
SMS from H23, check the SMS you sent tosee if device ID and keyword were
spelt correctly. Device ID is case sensitive. H23 can identify the operator in
use from the modem’s SIM card. Identication does not occur until PIN code
has been entered. If H23 does not identify the operator even though PIN is
correct, enter message center number. You can nd message centre number,
PIN code and device ID in ”System settings” > ”SMS settings” in your H23
device.
