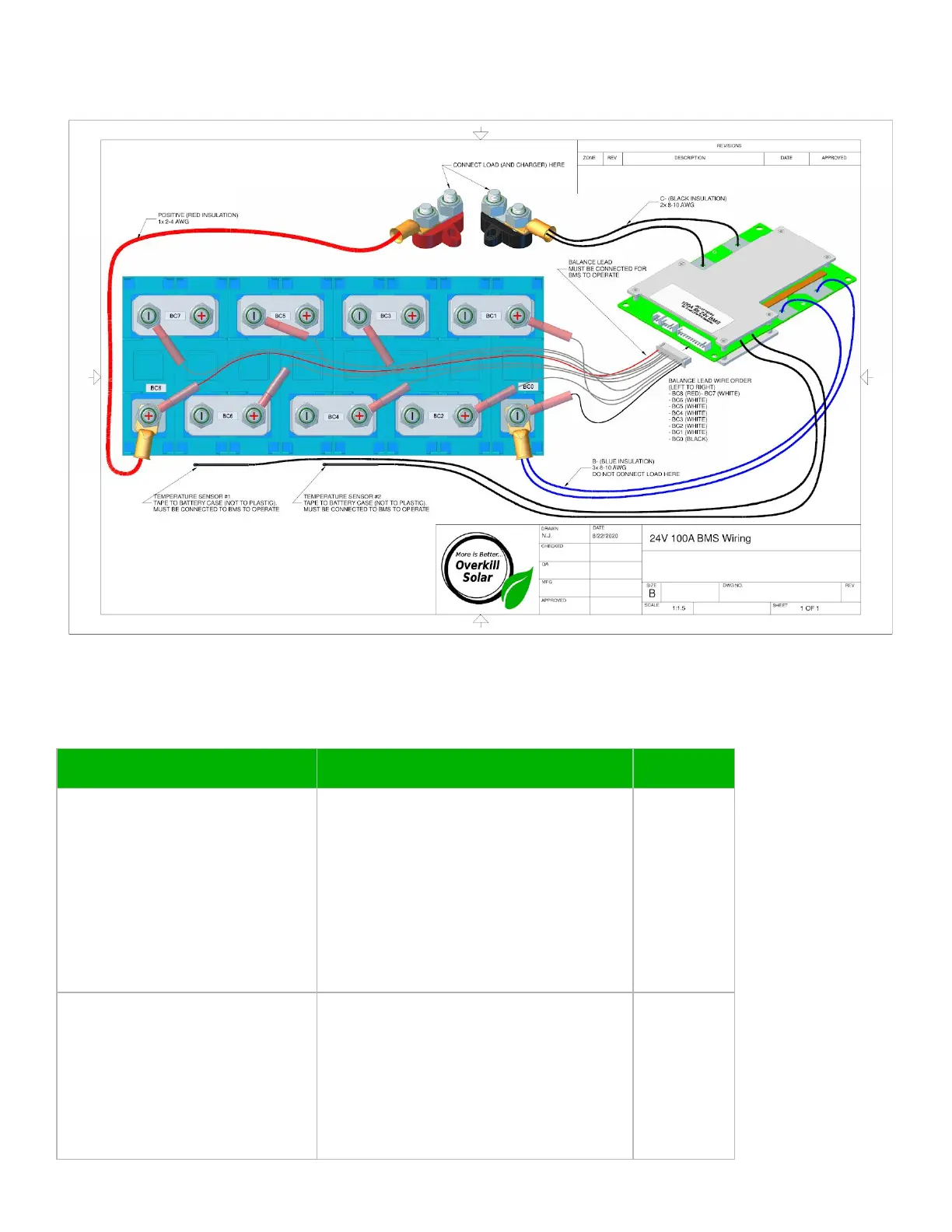

Wiring Diagram
Figure A.4.2: Wiring Diagram for 24V pack, 4-cell using one 12V BMS
BMS Configuration Parameters
Capacity configuration:
Parameter
Value
Units
Designed capacity
This should be the rated capacity of your
battery in milliamps (multiply the
amp-hours of your pack by 1000)
Examples:
50 Ah pack: 50000
60 Ah pack: 60000
100Ah pack: 100000
200 Ah pack: 200000
280 Ah pack: 280000
mAh
Cycle capacity
This should be roughly 80% of the value
above.
Examples:
50 Ah pack: 40000
60 Ah pack: 48000
100Ah pack: 80000
200 Ah pack: 160000
mAh
