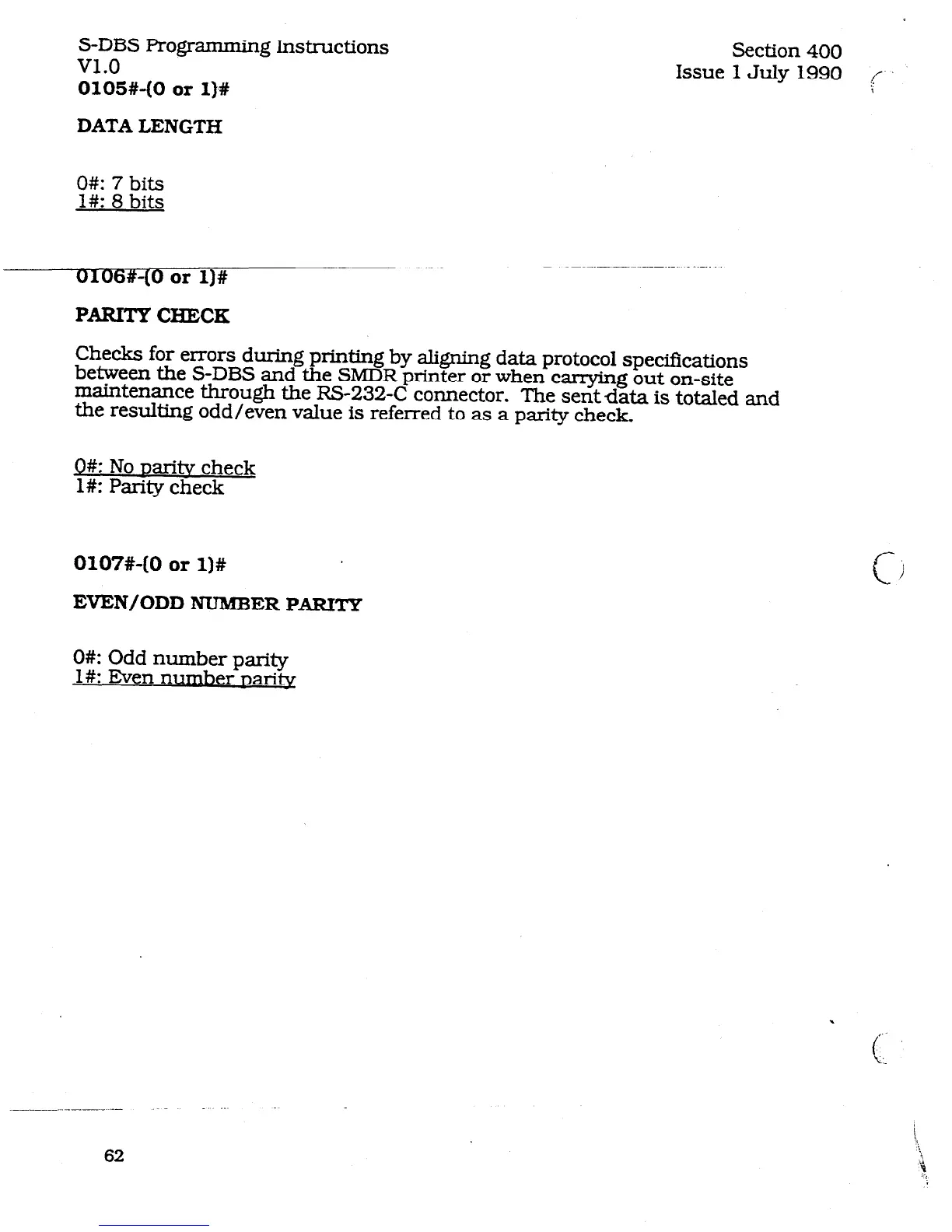

S-DBS Programming Instructions
v1.0
Section 400
0105#-(0 or l)#
Issue 1 July 1990 :c
I
DATA LENGTH
O#:
7
bits
l#: 8 bits
Bos#-(0 or l)#
_~ ___. _..._.. _ .._.. .-
.--_.----_---..-.. . . -.
PARITY CHECK
Checks for errors during printing by aligning data protocol specifications
between the S-DBS and the SMDR printer or when caxqing out on-site
maintenance through the RS-232-C connector. The sent data is totaled and
the resulting odd/even value is referred to as a parity check.
O#:No~aritv
check
l#: Parity check
0107#-(0 or l)#
EVEN/ODD NUMBER PARITY
O#: Odd number parity
l#: &en number
~ariQ
62
