Section 300
Issue 1 August 1990
*
S-DBS Installation Instructions
v1.0
INSTALLATION (continued)

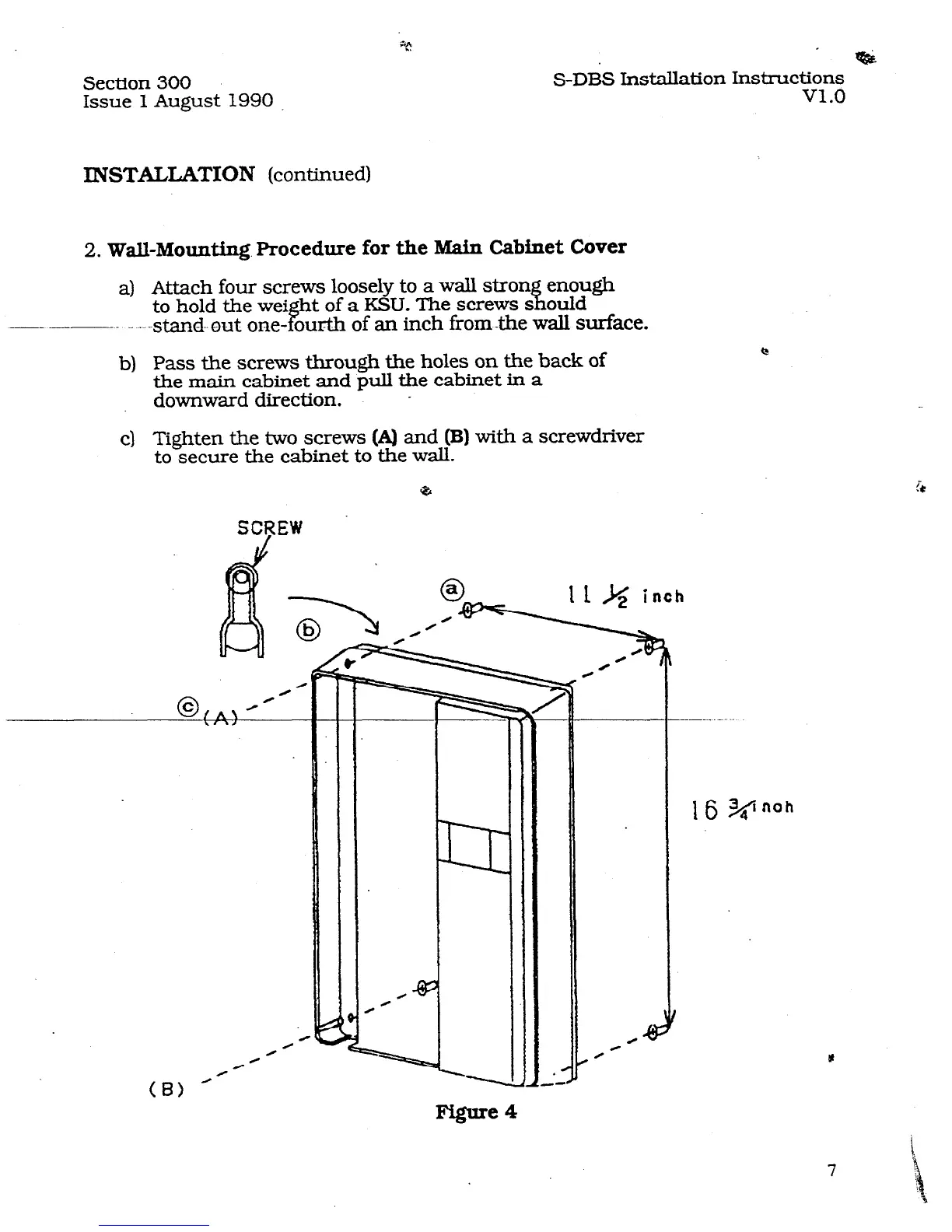

2. Wall-Mounting. Procedure for the Main Cabinet Cover
a)
Attach four screws loosely to a wall stron
fl
enough
to hold the wei
ht of a KSU. The screws s
ould
___ _~_.
- ---stand--out
one-
f ourth of an inch from-the wall surface.
b) Pass the screws through the holes on the back of
(r
the main cabinet and pull the cabinet in a
downward direction. -
c) Tighten the two screws (A) and (B) with a screwdriver
to secure the cabinet to the wall.
(8)
To Next Page
