Section 300
Issue 1 August 1990
Fci+
S-DBS Installation Instructions
v1.0
TRUNKLINES

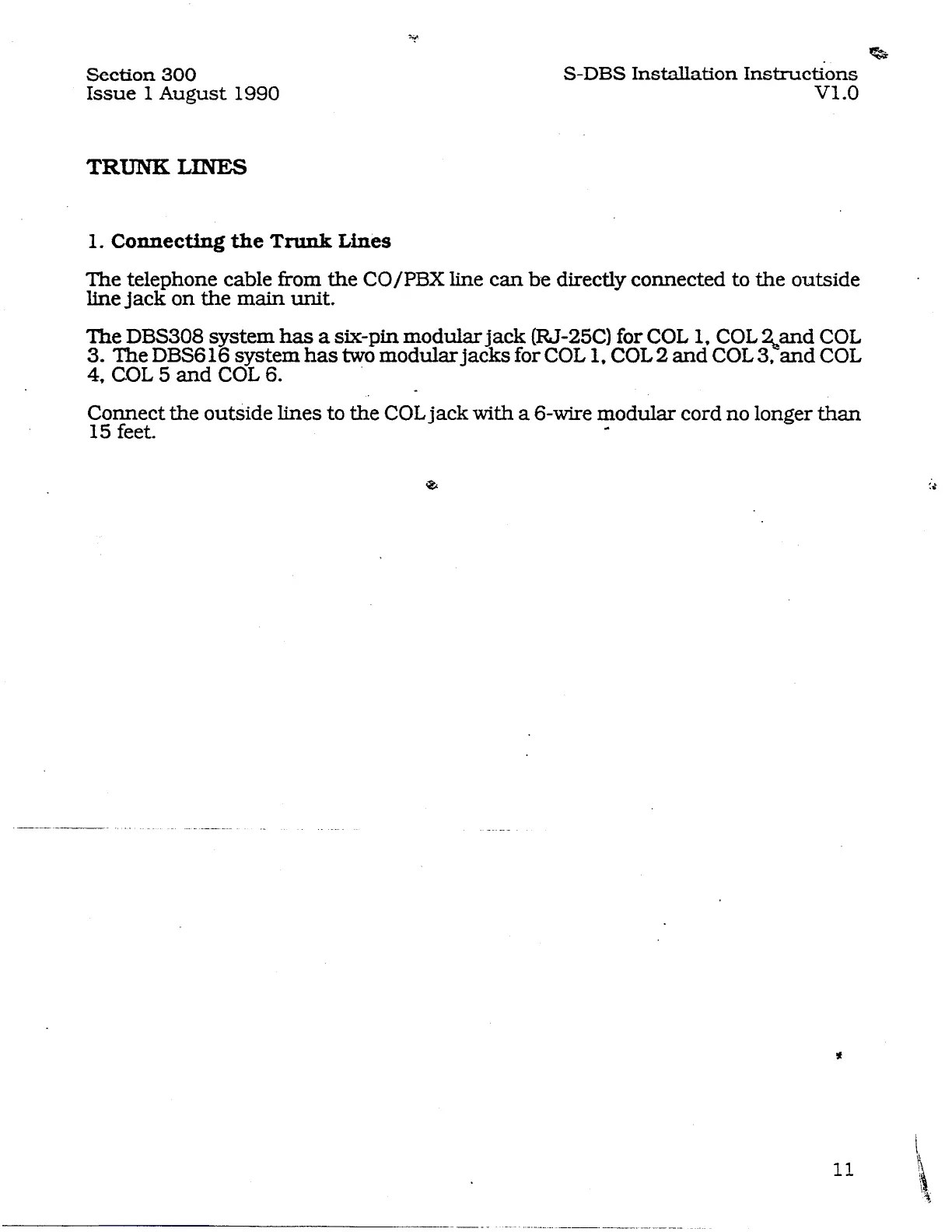

1. Connecting the Trunk Lines
The telephone cable from the CO/PBX line can be directly connected to the outside
line jack on the main unit.
The DBS308 system has a six-pin modular jack (RI-25C) for COL 1, COL qand COL
3. The DBS616 system has two modular jacks for COL 1, COL 2 and COL 3, and COL
4,
COL 5 and COL 6.
y;z.ft the outside lines to the COL jack with a 6-w-ire modular cord no longer than
I/
