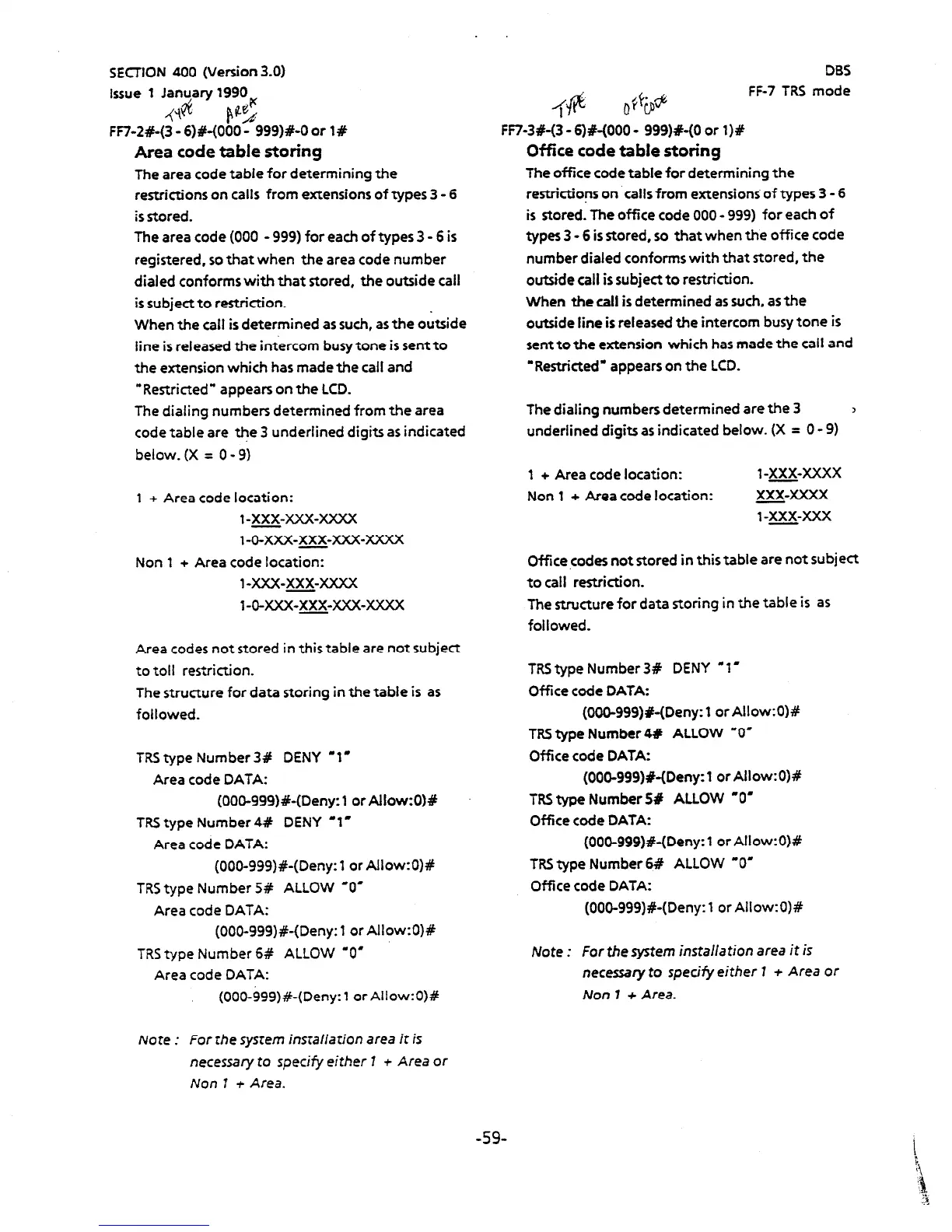

SECTION 400 (Version 3.0)
Issue 1 Janu/ary 1990
4@
p$
FF7-2#-(3 - 6)#-(000 - 999)+-O or 1#
Mea code table storing
The area code table for determining the
restrictions on calls from extensions of types 3 - 6
is stored.
The area code (000 - 999) for each of types 3 - 6 is
registered, so that when the area code number
dialed conforms with that stored, the outside call
is subject to restriction.
When the call is determined as such, as the o&ide
line is released the intercom busy tone is sent to
the extension which has madethe call and
“Restricted” appears on the LCD.
The dialing numbers determined from the area
code table are the 3 underlined digits as indicated
below. (X = 0 - 9,
1 + Area code location:
l-xxx-xxx-XxXx
I-0-XXX-xxx-XXX-XXXX
Non 1 + Area code location:
l-xxx-xxx-XxXx
I-o-xxx-~-xxx-xXxX
Area codes not stored in this table are not subject
to toll restriction.
The struCture for data storing in the table is as
foilowed.
TRS type Number3# DENY ‘I’
Area code DATA:
(OOO-999)#-(Deny: 1 or Allow:O)#
TRS type Number 4# DENY -1’
Area code DATA:
(OOO-999)#-(Deny: 1 or Allow:O)#
TRS type Number S# ALLOW ‘0’
Area code DATA:
(OOO-999)#-(Deny: 1 or Allow:O)#
TRS type Number 68 ALLOW ‘0’
Area code DATA:
(OOO-999)#-(Deny: 1 or Aliow:O)#
Note : For the system installation area it is
necessary to specify either I + Area or
Non I + Area.
DBS
FF-7 TRS mode
FF7-3k(3 - 6)#-(000 - 999)#-(0 or l)#
Office code table storing
The office code table for determining the
retictions on calls from extensions of types 3 - 6
is stored. The office code 000 - 999) for each of
types 3 - 6 is stored, so that when the office code
number dialed conforms with that stored, the
outside call is subject to restriction.
When the call is determined as such, as the
outside line is released the intercom busy tone is
sent to the extension which has made the call and
“Restricted’ appears on the LCD.
The dialing numbers determined are the 3 >
underlined digits as indicated below. (X = 0 - 9)
1 + Area code location:
Non 1 + Area code location:
1 -xxx-XxXx
xxx-XxXx
-
l-~-XXX
Officecodes not stored in this table are not subject
to call restriction.
The structure for data storing in the table is as
followed.
TRStype Number3# DENY “1’
Office code DATA:
(OOO-999)#-(Deny: 1 or Allow:O)#
TRS type Number 4# ALLOW ‘0’
Office code DATA:
(OOO-999)#-(Deny: 1 or Allow:O)#
TRS type Number 5# ALLOW ‘0’
Office code DATA:
(OOO-999)#-(Deny: 1 or Allow:O)#
TRS type Number 6# ALLOW ‘0’
Office code DATA:
(OOO-999)#-(Deny: 1 or Allow:O)#
Note : For the system instalia tion area it is
necessary to specify either T + Area or
Non I + Area.
-59-
