Section 300
Issue 1 August 1990
%s
S-DBS Installation Instructions
VI.0
SMDR INTERFACE CARD
Features Package “B”
The main unit is provided with an SMDR Interface Card connector which requires
Feature Package B, VB-42411.
Place the VB-42411 cartridge in the area on the KSU
marked “Feature Package”. (See Figure 11 below)
The Card provides an RS-232C port interface which is compatible with eustomer-
provided serial printers or ca.Il-accounting devices capable of generating detailed
reports for calI information, on time, duration and phone number.
p
c
L
.
--- 25Pa;irA;mphenol
Connector
Extensions 1 - 8
a

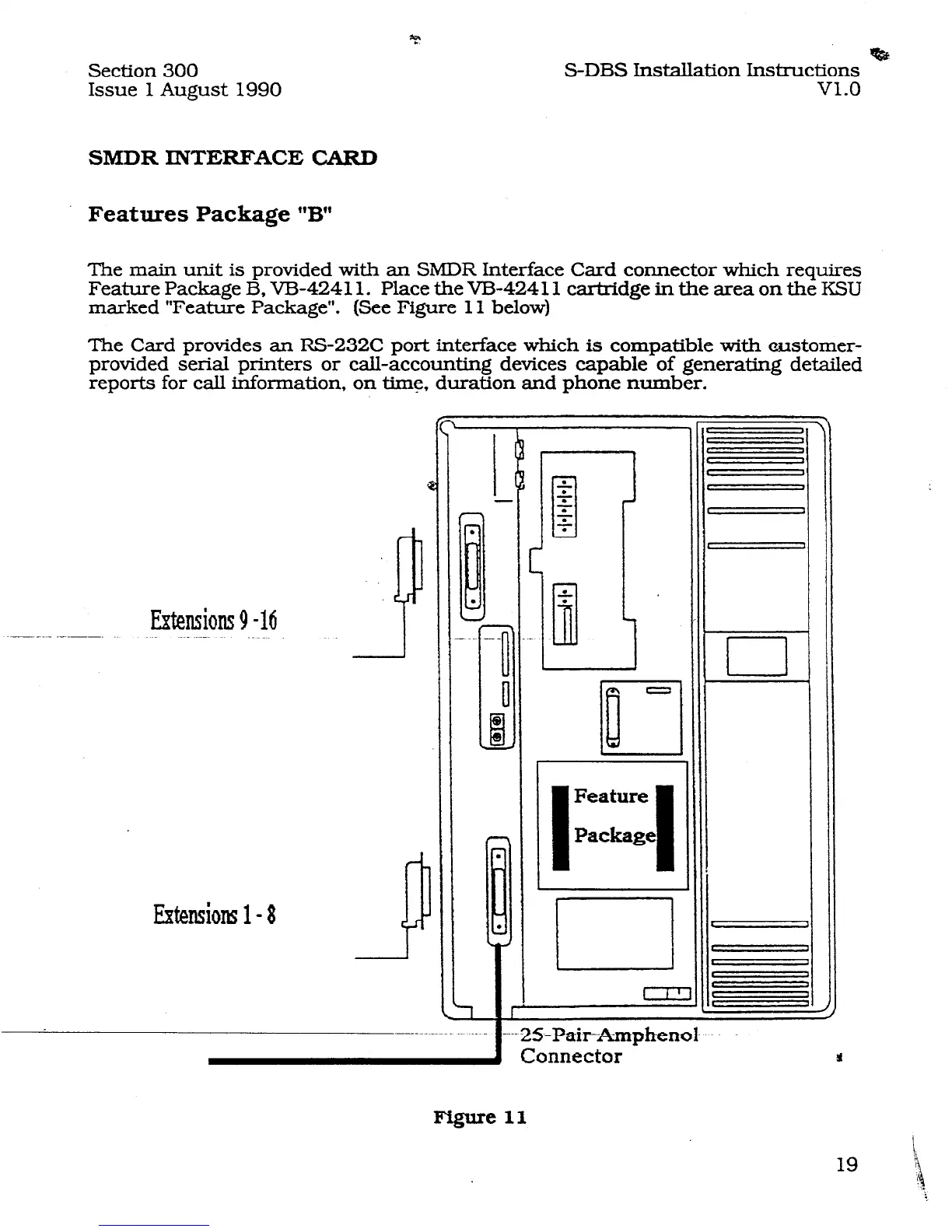

Figure
11
19
