21. Service Data
Service data provided are based on the air conditioner running under rated frequency during forced cooling / forced
heating mode.
21.1 Cool Mode Outdoor Air Temperature Characteristic
Condition
- Indoor room temperature: 27°C Dry Bulb/19°C Wet Bulb
- Unit setting: Standard piping length, forced cooling at 16°C, Hi fan
- Compressor frequency: Rated for cooling operation
- Piping length: 5m
- Voltage: 230V

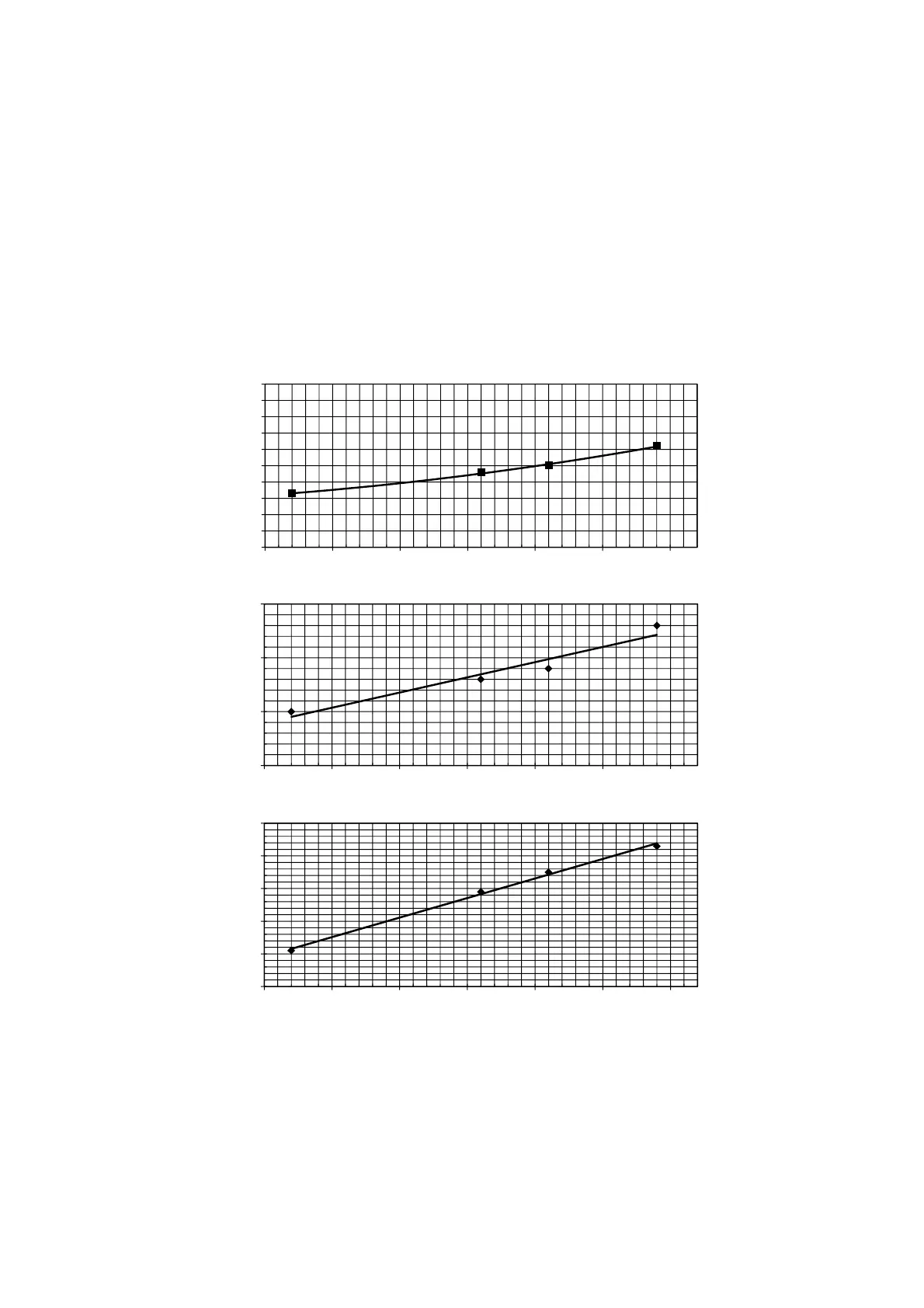

21.1.1 CS-Z25UB4EAW CU-Z25UBEA
2.00
2.10
2.20
2.30
2.40
2.50
2.60
2.70
2.80
2.90
3.00
14 19 24 29 34 39 44
Current
(A)
Outdoor Air Temperature (°C)
1.00
1.05
1.10
1.15
14 19 24 29 34 39 44
Lo Pressure (MPa)
Outdoor Air Temperature (°C)
15.00
15.20
15.40
15.60
15.80
16.00
14 19 24 29 34 39 44
Indoor Discharge
Air Temperature
(°C)
Outdoor Air Temperature (°C)
