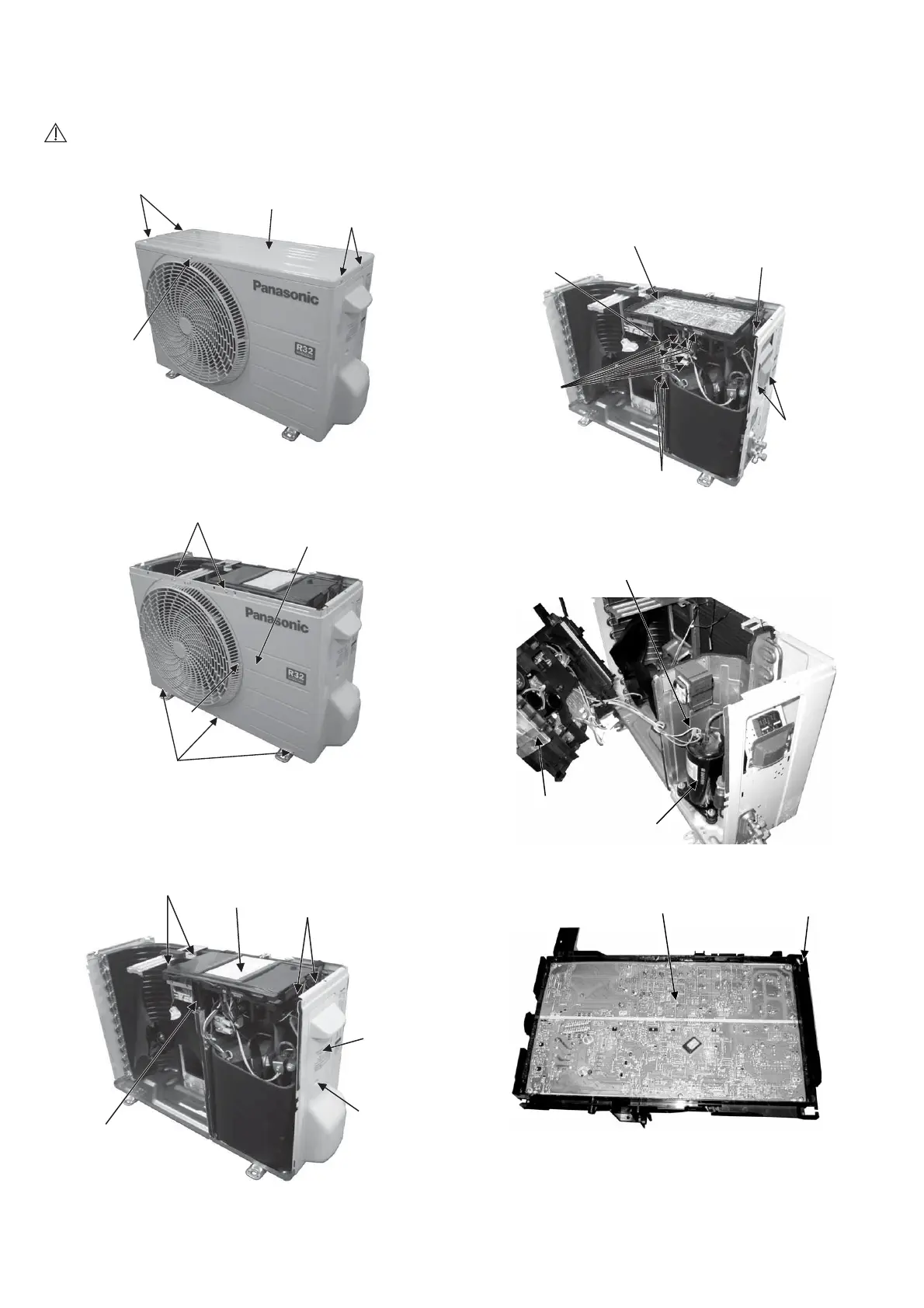

19.3 Outdoor Electronic Controller Removal Procedure
19.3.1 CU-Z20VKE CU-Z25VKE CU-Z35VKE
Caution! When handling electronic controller, be careful of electrostatic discharge.
1 Remove the 5 screws of the Top Panel.
Top Panel
Screws
Screw
Screws
Fig. 1
2 Remove the 6 screws of the Front Panel.
Screws
Screws
Screw
Front Panel
Fig. 2
3 Remove the screw of the Terminal Board
Cover.
4 Remove the Top Cover of the Control Board
by 4 hooks.
Hooks
Top Cover
Hooks
Terminal
Board
Cover
Screw
Control Board
Fig. 3
5 Remove the Control Board as follows:
Control Board
Release 3 Terminal
Connectors, L, N
and Earth Wire Screw.
Then Remove 4 Terminal
Connectors of DRM.
Remove 2
Screws of
Plate Terminal
Board
Remove of Screw
Control Board
Release 2 Earth
Wire Screws
Release 7
Connectors
Fig. 4
R
e
m
o
v
e
t
h
e
T
e
r
m
i
n
al
C
o
v
e
r
and 3 Terminal Compressor
Control Board
Compressor
Fig. 5
E
l
e
ct
r
o
n
ic
C
o
n
t
r
o
ll
e
r
Control Board
Fig. 6

Panasonic CS-Z25VKEW Specifications

General

AC input voltage	230 V
Design load (cooling)	2.5 kW
Annual energy consumption (cooling)	103 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.7 kW
Energy efficiency class (heating) (Colder heating season)	-
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (heating) (Average heating season)	741 kWh
Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Dehumidifying capacity	1.5 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	5000 W
Heating capacity in watts (min)	800 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	4.81
Heating energy efficiency (COP, W/W)	4.79
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP)	5.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	612 m³/h
Heating airflow (indoor unit)	672 m³/h
Indoor unit sound power level	55 dB
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	Yes
Outdoor unit noise level	- dB
