16.2.5 Dew Prevention Control 1
 To prevent dew formation at indoor unit discharge area.
 This control will be activated if:
o Outdoor air temperature and Indoor pipe temperature judgment by microcontroller is fulfilled.
o When Cooling or Dry mode is operated more than 20 minutes or more.
 This control stopped if:
o Compressor stopped.
o Remote control setting changed (fan speed / temperature).
o Outdoor air temperature and indoor intake temperature changed.
 Fan speed will be adjusted accordingly in this control.
16.2.6 Odor Cut Control
 To reduce the odor released from the unit.
o Start Condition
 AUTO FAN Speed is selected during COOL or DRY operation.
 During freeze prevention control and timer preliminary operation, this control is not applicable.
o Control content
 Depends on compressor conditions:
1. Compressor OFF → Compressor ON.
The indoor unit fan stops temporarily and then starts to blow at minimum airflow for 30 seconds.
2. Compressor ON → Compressor OFF.
The indoor unit fan stops for 90 seconds and then blows at minimum airflow for 20 seconds.
16.3 Protection Control for Heating Operation
16.3.1 Intake Air Temperature Control
Compressor will operate at limited freq., if indoor intake air temperature is 30°C or above.
16.3.2 Outdoor Air Temperature Control

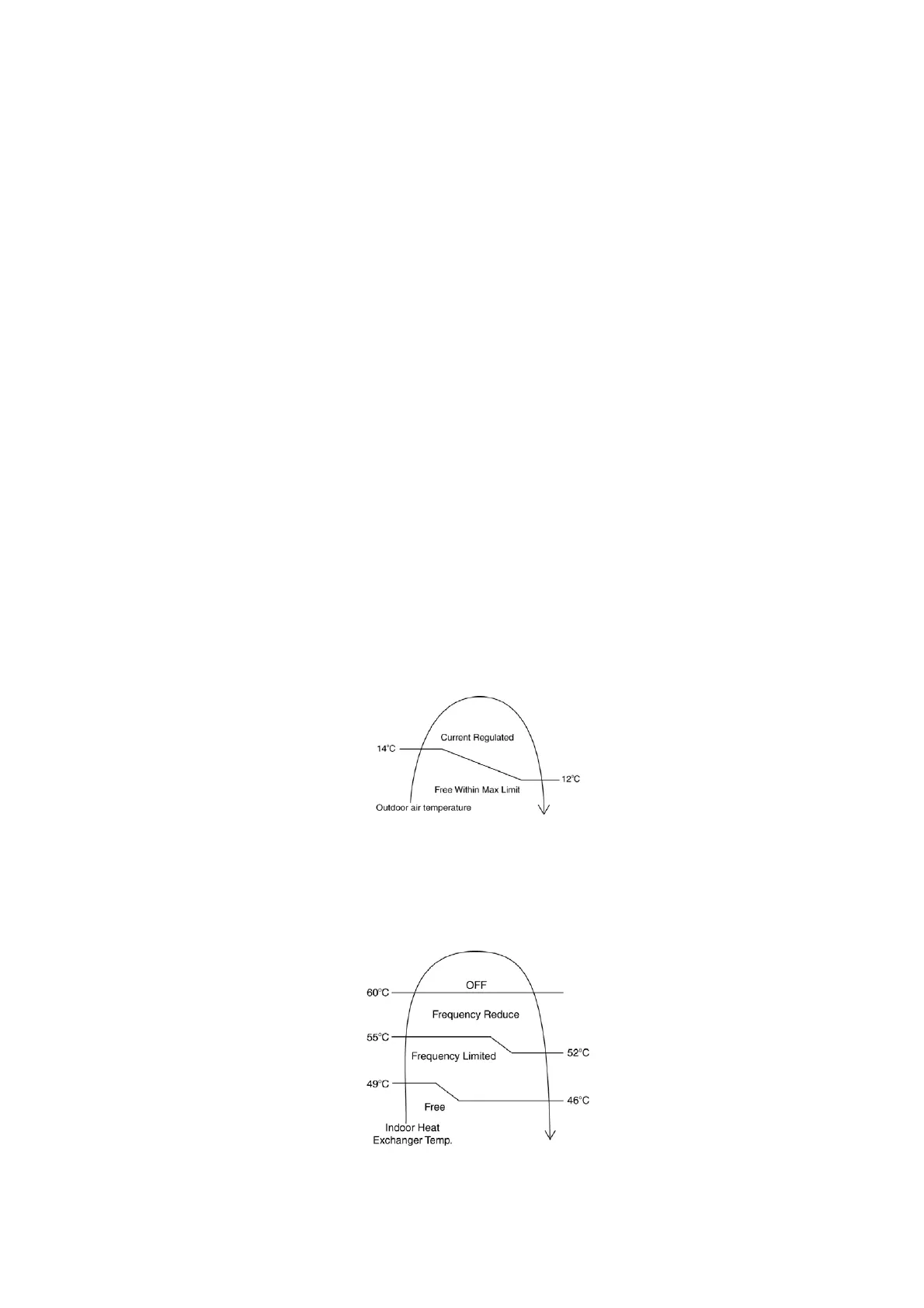

 The Max current value is regulated when the outdoor air temperature rise above 14°C in order to avoid
compressor overloading.
16.3.3 Overload Protection Control
 The compressor operating frequency is regulated in accordance to indoor heat exchanger temperature as shown
below.
 If the heat exchanger temperature exceeds 60°C, compressor will stop.

Panasonic CS-Z25VKEW Specifications

General

AC input voltage	230 V
Design load (cooling)	2.5 kW
Annual energy consumption (cooling)	103 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.7 kW
Energy efficiency class (heating) (Colder heating season)	-
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (heating) (Average heating season)	741 kWh
Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Dehumidifying capacity	1.5 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	5000 W
Heating capacity in watts (min)	800 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	4.81
Heating energy efficiency (COP, W/W)	4.79
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP)	5.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	612 m³/h
Heating airflow (indoor unit)	672 m³/h
Indoor unit sound power level	55 dB
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	Yes
Outdoor unit noise level	- dB
