14.13 Mild Dry Cooling Operation
 This operation helps to prevent decreases in room humidity while maintaining the setting temperature.
 During unit running at Cooling operation mode, if “Mild Dry Cooling” button is pressed, Mild Dry Cooling operation
starts and Mild Dry Cooling indicators turns ON at remote control display.
 Mild dry cooling operation is unavailable when the unit is operating Auto mode and Soft Dry model operation.
 Mild dry cooling operation is cancelled when the unit turned OFF, Mild Dry Cooling button is pressed again or
when the operation mode changed from Cooling to other mode.
 Powerful, Quiet and Mild Dry Cooling mode cannot function at the same time, the unit will follows the operation
according to the last signal received.
 During this operation, the compressor frequency changes according to operating condition to prevent room
humidity decreases and when AUTO AIR SWING is set, the vertical airflow direction fixed at lower limit position.

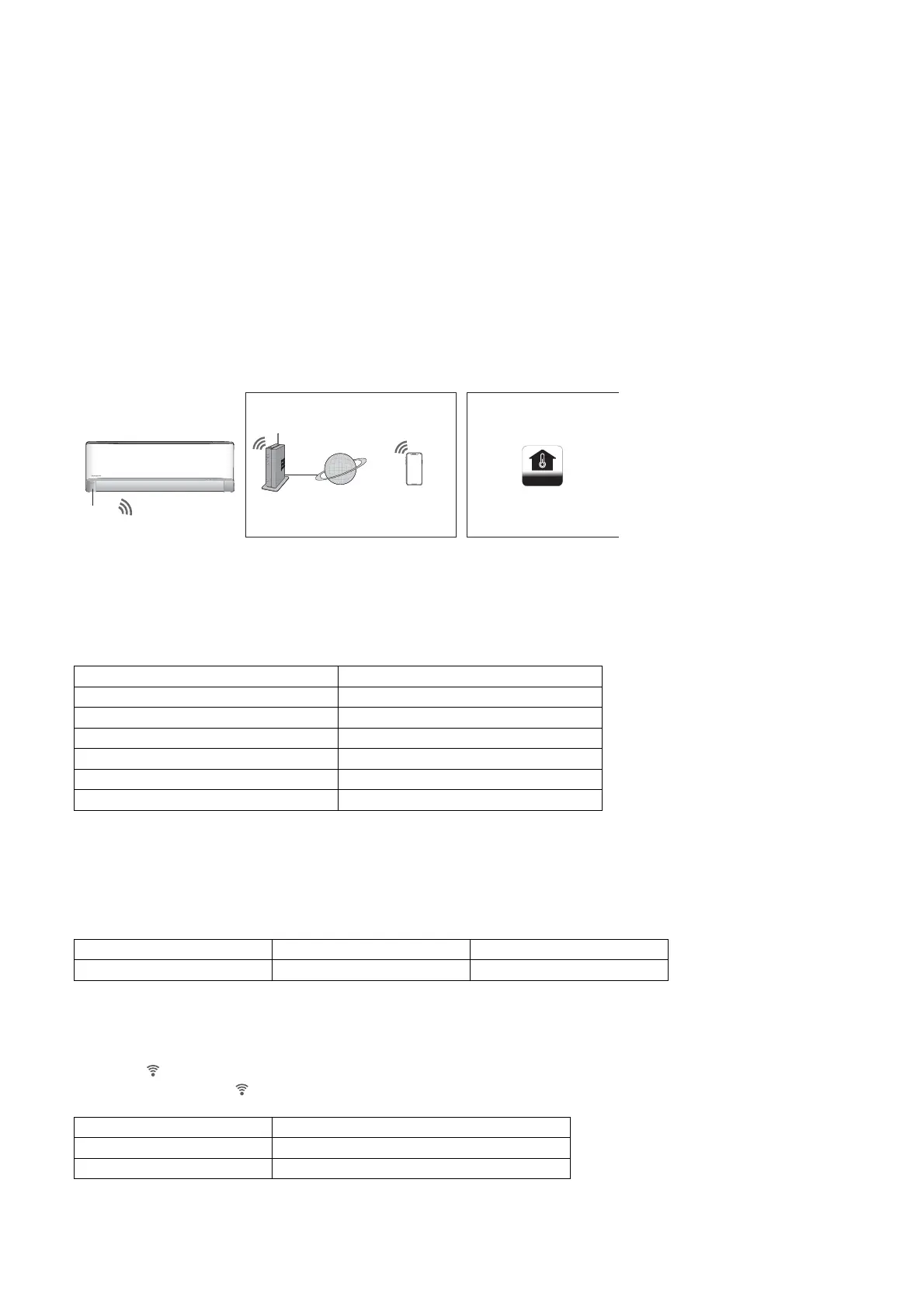

14.14 Wireless LAN Control
14.14.1 System Overview.
Panasonic
Download from app store
Router
Internet
Smartphone
Items you need to prepare
(purchase and subscribe separately)
Panasonic Comfort Cloud
app (free)
Network
A
daptor
Indoor Unit
 Requires the APP to work with a smartphone with Android 4.4 and above, or iOS 9 and above.
However, there is no guarantee that the APP will work well with all Android OS version.
 The Network Adaptor is designed specifically as a terminal for Panasonic Comfort Cloud app.
 The Wireless LAN network coverage must reach the air conditioner installation location.
Specification
Network Adaptor Wireless LAN Module (built-in)
Model DNSK-P11
Input Voltage DC 5V (From Air Conditioner Indoor Unit)
Current Consumption Tx/Rx max. 290/100 mA
Wireless LAN standard IEEE 802.11 b/g/n
Frequency range 2.4 GHz band
Encryption WPA2-PSK (TKIP/AES)
Precaution
 Do NOT disassemble or alter this Network Adaptor in any way.
 Do NOT remove this Network Adaptor from the appliance product’s during operations.
 Data transmitted and received over radio waves may be intercepted and monitored.
Maximum radio-frequency power transmitted in the frequency bands
Type of wireless Frequency band Max. EIRP (dBm)
WLAN 2412 - 2472 MHz 20 dBm
14.14.2 Connecting Network
 Press
to communicate with the home wireless LAN access point.
 Wireless LAN LED
blinks to indicate the connection status to home access point.
Fast blink The unit is establishing the connection.
Slow blink The unit is not securing the connection.
No blink (stays on) The unit is has established the connection.
 It can establish the connection to the unit even If the unit turned OFF.

Panasonic CS-Z25VKEW Specifications

General

AC input voltage	230 V
Design load (cooling)	2.5 kW
Annual energy consumption (cooling)	103 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.7 kW
Energy efficiency class (heating) (Colder heating season)	-
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (heating) (Average heating season)	741 kWh
Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Dehumidifying capacity	1.5 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	5000 W
Heating capacity in watts (min)	800 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	4.81
Heating energy efficiency (COP, W/W)	4.79
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP)	5.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	612 m³/h
Heating airflow (indoor unit)	672 m³/h
Indoor unit sound power level	55 dB
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	Yes
Outdoor unit noise level	- dB
