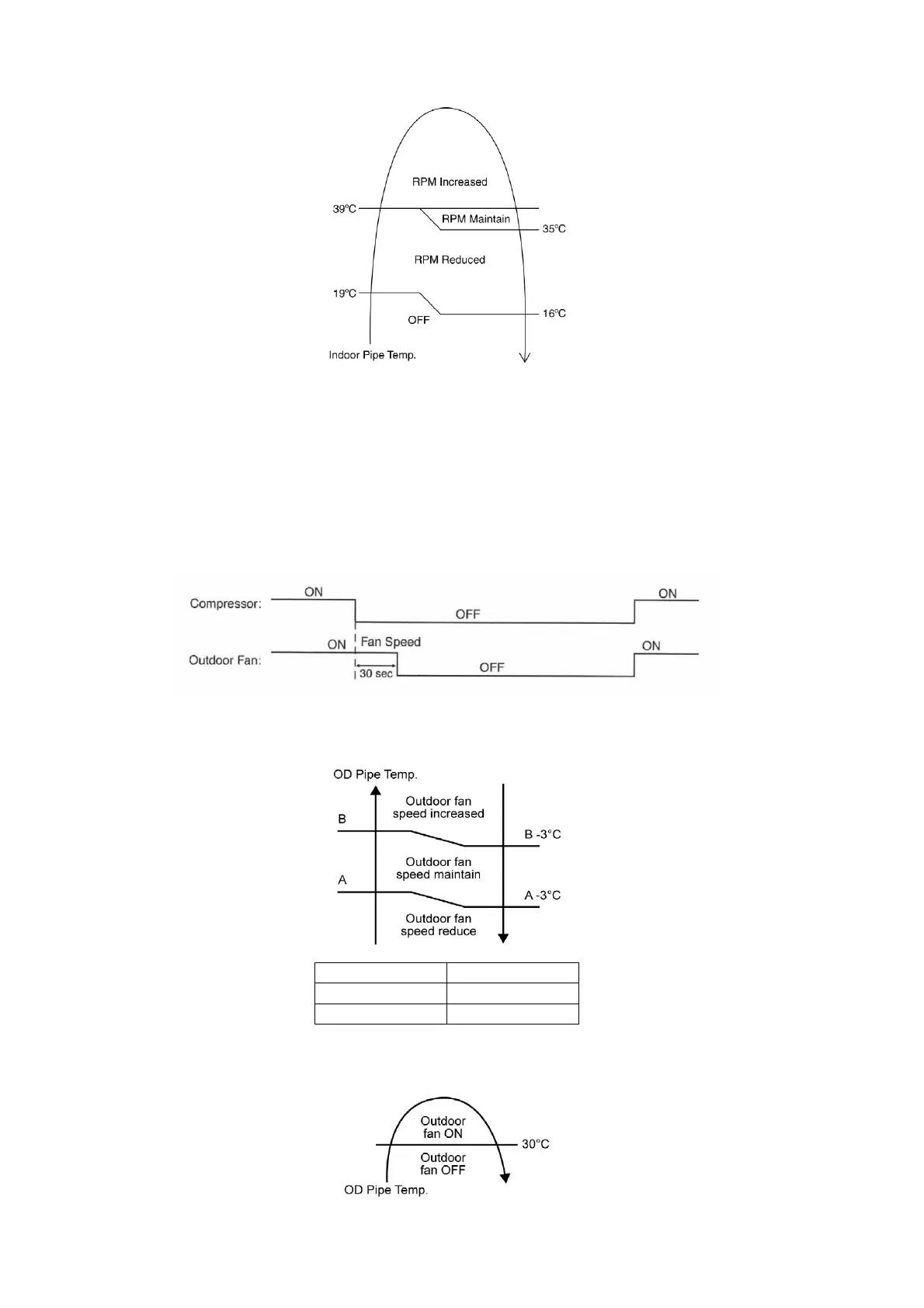

 According to indoor pipe temperature, automatic heating fan speed is determined as follows.
B. Feedback control
 Immediately after the fan motor started, feedback control is performed once every second.
 During fan motor on, if fan motor feedback ≥ 2550 rpm or < 50 rpm continue for 10 seconds, then fan motor error
counter increase, fan motor is then stop and restart. If the fan motor counter becomes 7 times, then H19 - fan
motor error is detected. Operation stops and cannot on back.
14.3 Outdoor Fan Motor Operation
 It starts when compressor starts operation and it stops 30 seconds after compressor stops operation.
 During cooling operation, and outdoor ambient temperature is below 8°C, outdoor fan speed will be controlled
according to outdoor piping temperature as following:
OD Pipe Temperature
A 26°C
B 33°C
 During above condition, when indoor heat exchanger temperature is below 5°C, the outdoor fan will stop
according to outdoor piping temperature as following:

Panasonic CS-Z25VKEW Specifications

General

AC input voltage	230 V
Design load (cooling)	2.5 kW
Annual energy consumption (cooling)	103 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.7 kW
Energy efficiency class (heating) (Colder heating season)	-
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (heating) (Average heating season)	741 kWh
Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Dehumidifying capacity	1.5 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	5000 W
Heating capacity in watts (min)	800 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	4.81
Heating energy efficiency (COP, W/W)	4.79
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP)	5.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	612 m³/h
Heating airflow (indoor unit)	672 m³/h
Indoor unit sound power level	55 dB
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	Yes
Outdoor unit noise level	- dB
