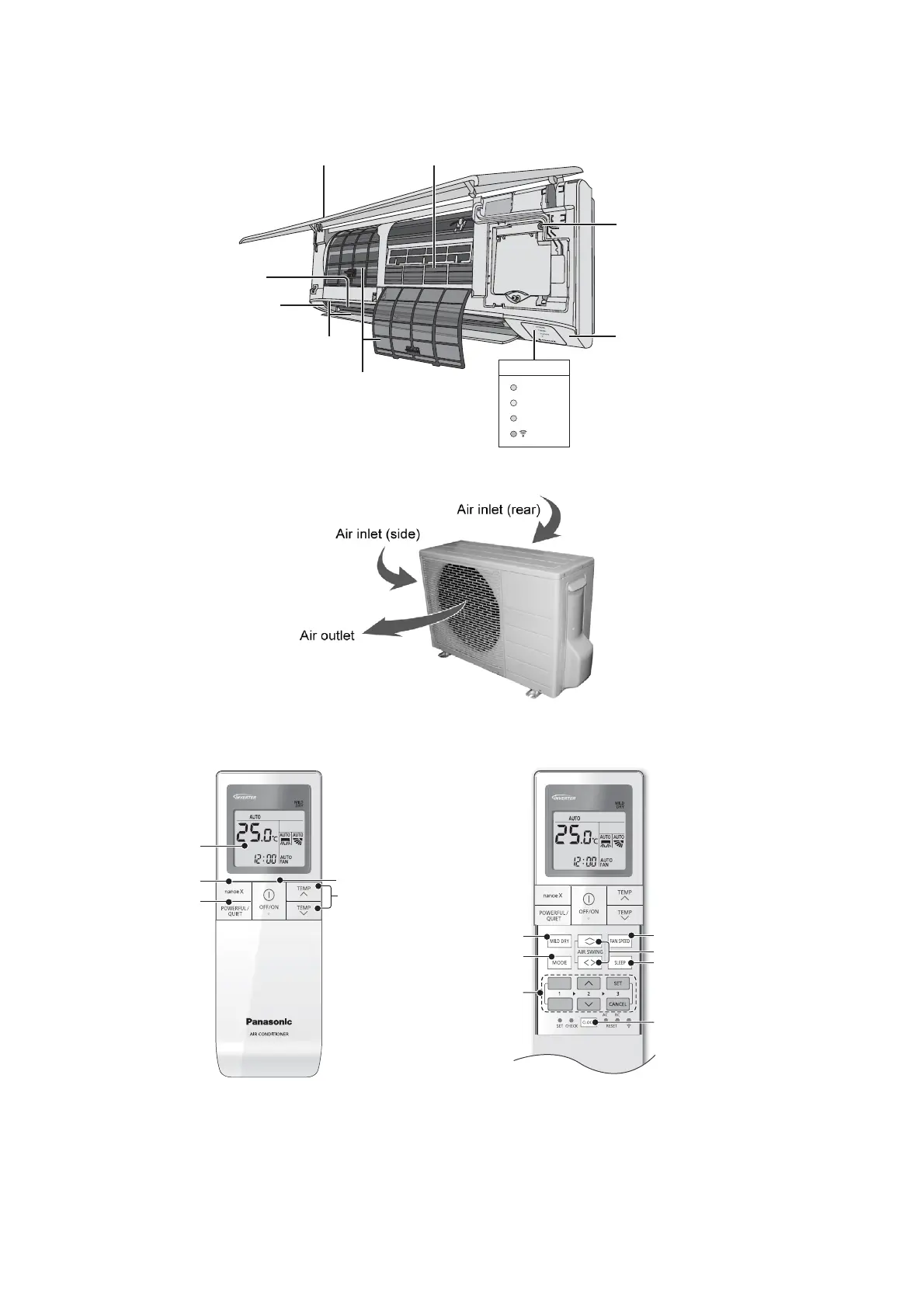

5. Location of Controls and Components
5.1 Indoor Unit
x
Front panel
Air Filters
Auto OFF/ON button
Use when remote control is misplaced
or a malfunction occurs.
Vertical airflow direction louver
Do not adjust by hand.
Horizontal airflow direction louver
Do not adjust by hand.
Aluminium fin
Human activity
sensor
Sunlight Sensor and
Remote Control Receiver
Indicator
POWER
TIMER
nanoe X
5.2 Outdoor Unit
5.3 Remote Control
TIMER
OFF
TIMER
ON
Sleep operation
Operation mode
Mild Dry mode
Timer setting
Temperature setting
Fan speed selection
Clock setting
Airflow direction adjustment
Remote control
display
POWERFUL/QUIET
operation
nanoe X operation
OFF/ON

Panasonic CS-Z25VKEW Specifications

General

AC input voltage	230 V
Design load (cooling)	2.5 kW
Annual energy consumption (cooling)	103 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.7 kW
Energy efficiency class (heating) (Colder heating season)	-
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (heating) (Average heating season)	741 kWh
Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Dehumidifying capacity	1.5 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	5000 W
Heating capacity in watts (min)	800 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	4.81
Heating energy efficiency (COP, W/W)	4.79
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP)	5.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	612 m³/h
Heating airflow (indoor unit)	672 m³/h
Indoor unit sound power level	55 dB
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	Yes
Outdoor unit noise level	- dB
