16.2 Protection Control for Cooling & Soft Dry Operation
16.2.1 Outdoor Air Temperature Control

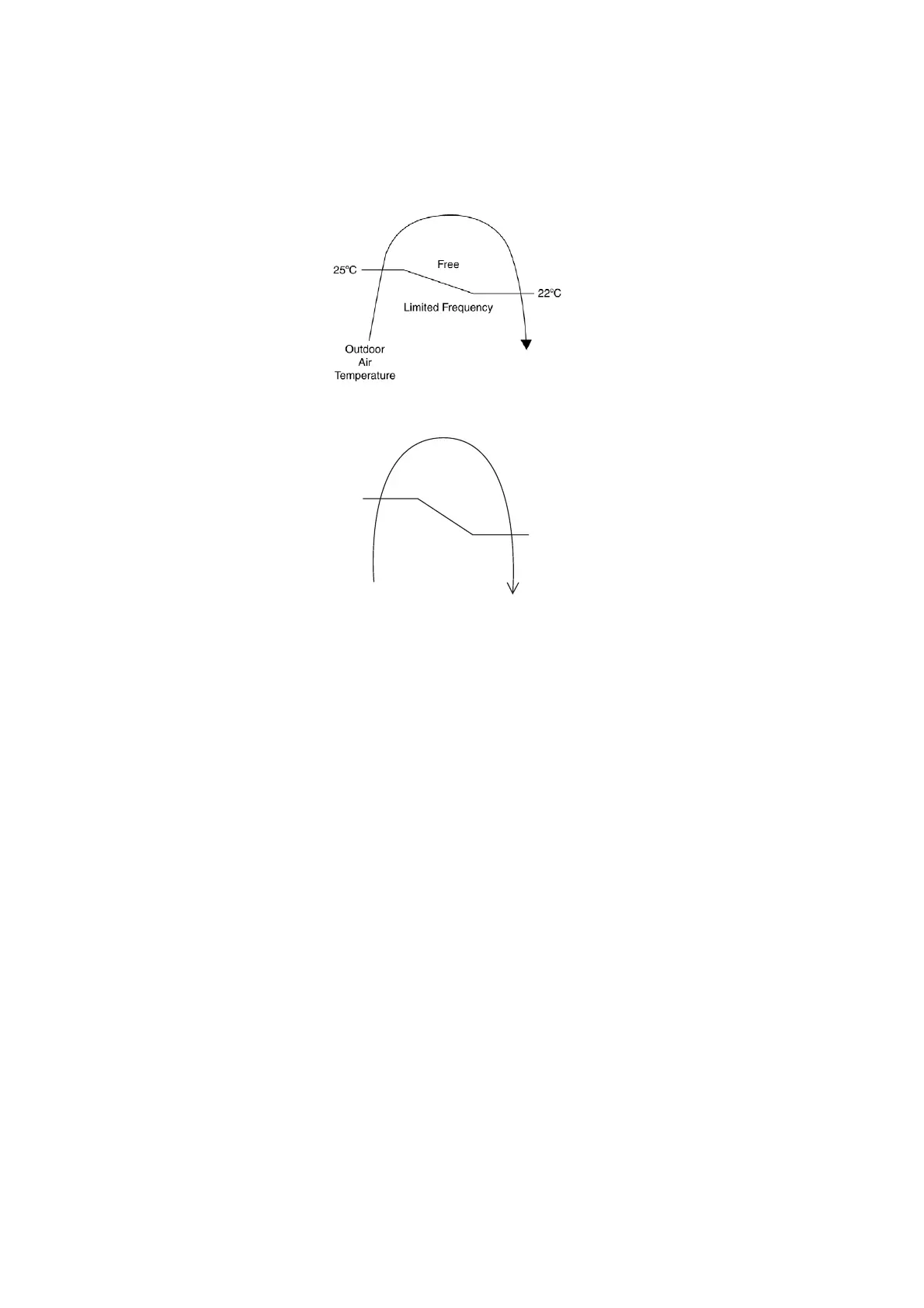

 The compressor operating frequency is regulated in accordance to the outdoor air temperature as shown in the
diagram below.
 This control will begin 1 minute after the compressor starts.
 Compressor frequency will adjust base on outdoor air temperature.
 The compressor will be stopped to avoid compressor overloading.
-10°C
-12°C
COMP. ON
COMP. OFF
Outdoor
Air
Temperature
16.2.2 Cooling Overload Control
 Detects the Outdoor pipe temperature and carry out below restriction/limitation (Limit the compressor Operation
frequency).
 The compressor stop if outdoor pipe temperature exceeds 60°C.
 If the compressor stops 4 times in 20 minutes, Timer LED blinking (F95 indicated: outdoor high pressure rise
protection).
16.2.3 Freeze Prevention Control 1
 When indoor heat exchanger temperature is lower than 0°C continuously for 6 minutes, compressor will stop
operating.
 Compressor will resume its operation 3 minutes after the indoor heat exchanger is higher than 5°C.
 At the same time, indoor fan speed will be higher than during its normal operation.
 If indoor heat exchanger temperature is higher than 13°C, the fan speed will return to its normal operation.
16.2.4 Freeze Prevention Control 2
 Control start conditions
o During Cooling operation and soft dry operation
 During thermo OFF condition, indoor intake temperature is less than 10°C or
 Compressor stops for freeze prevention control
o Either one of the conditions above occurs 5 times in 60 minutes.
 Control contents
o Operation stops
o Timer LED blinks and “H99” indicated

Panasonic CS-Z25VKEW Specifications

General

AC input voltage	230 V
Design load (cooling)	2.5 kW
Annual energy consumption (cooling)	103 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.7 kW
Energy efficiency class (heating) (Colder heating season)	-
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (heating) (Average heating season)	741 kWh
Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Dehumidifying capacity	1.5 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	5000 W
Heating capacity in watts (min)	800 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	4.81
Heating energy efficiency (COP, W/W)	4.79
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP)	5.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	612 m³/h
Heating airflow (indoor unit)	672 m³/h
Indoor unit sound power level	55 dB
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	Yes
Outdoor unit noise level	- dB
